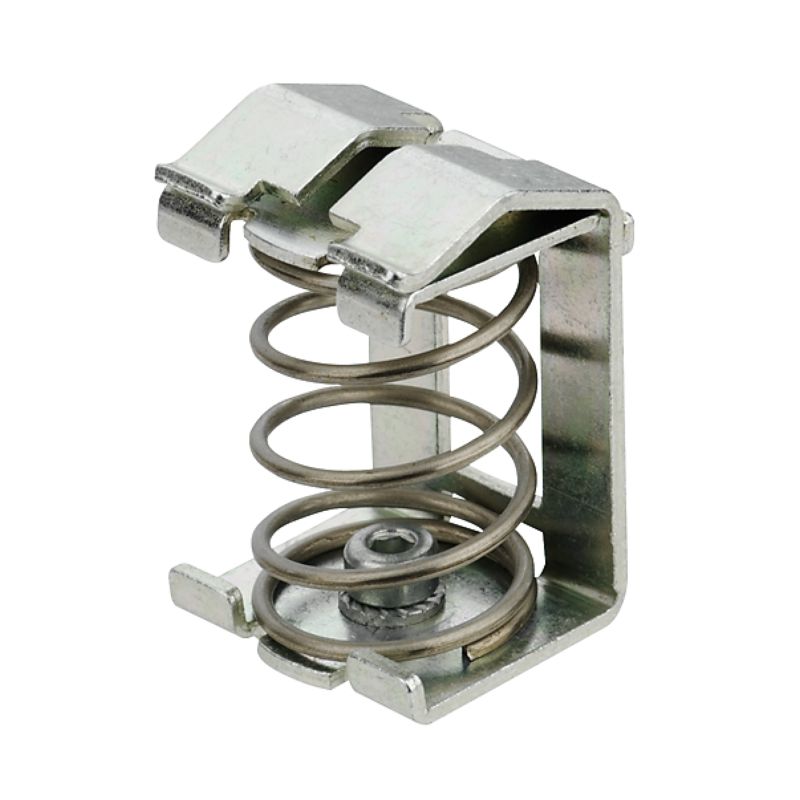

1712321001 - Steel Clamping Yoke for 10-20mm Cables, RoHS Compliant (Pack of 10)
1712321001 - Steel Clamping Yoke for 10-20mm Cables, RoHS Compliant (Pack of 10)
SKU: SKU: 1712321001 Download PDF
- 1712321001 - Steel Clamping Yoke for 10-20mm Cables, RoHS Compliant (Pack of 10)
- 1712321001 - Steel Clamping Yoke for 10-20mm Cables, RoHS Compliant (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your connections with the KLBUE 10-20 SC clamping yoke, expertly crafted from steel for robust performance Ideal for shield connections, this product adheres strictly to RoHS standards, eliminating the need for exemptions Featuring a convenient snap-on fixing mechanism, it allows for easy direct mounting It accommodates cables ranging from 10 mm to 20 mm in diameter and includes a reliable spring connection.
The yoke operates effectively in temperatures from -5 °C to 40 °C, and it can be stored safely between -25 °C and 55 °C, making it versatile for various environments.
Features and Benefits:
•Steel construction for durability.
•Compliant with RoHS standards.
•Direct mounting installation advice.
•Accommodates a diverse range of cable diameters.
Specifications:
| Depth | 40 mm |
| Height | 26 mm |
| Width | 23.6 mm |
| Continuous operating temp. min. | -60 °C |
| Continuous operating temp. max. | 130 °C |
| Cable diameter, max. | 20 mm |
| Cable diameter, min. | 10 mm |
| Connection cross-section, stranded, max. | 20 mm² |
| Connection cross-section, stranded, min. | 10 mm² |
| Stripping length | 26 mm |
| Length of thread | 5.3 mm |
| Pitch in mm (P) | 30 mm |
| Rated cross-section | 20 mm² |
| ETIM 6.0 | EC002020 |
