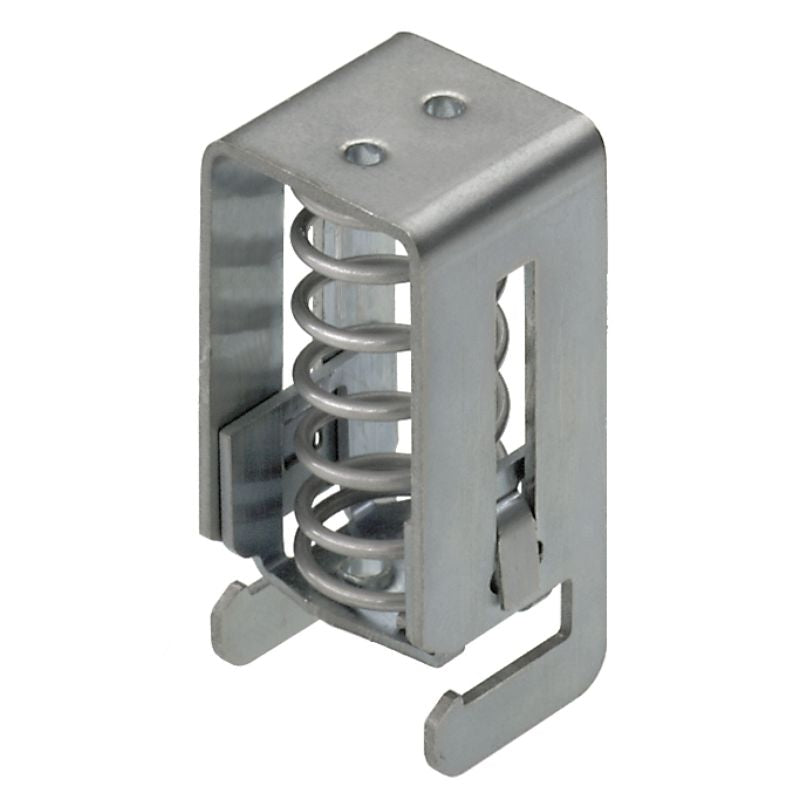

1752131001 - Steel Clamping Component, 41.6mm Depth, Snap-On Mounting (Pack of 10)
1752131001 - Steel Clamping Component, 41.6mm Depth, Snap-On Mounting (Pack of 10)
SKU: SKU: 1752131001 Download PDF
- 1752131001 - Steel Clamping Component, 41.6mm Depth, Snap-On Mounting (Pack of 10)
- 1752131001 - Steel Clamping Component, 41.6mm Depth, Snap-On Mounting (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KLBUE CO 2 clamping component, expertly crafted from steel for reliable performance This sturdy piece measures 416 mm deep, 18 mm high, and 211 mm wide, with a weight of just 187 g Finished in a sleek silver hue, it adheres to RoHS standards, ensuring safety and compliance The design allows for easy direct mounting on busbars, featuring a convenient snap-on fixing mechanism It accommodates a diverse range of cable connections, supporting a minimum diameter of 4 mm and a maximum of 15 mm, while handling a rated cross-section of 10 mm².
Perfect for various applications, the KLBUE CO 2 combines functionality with a robust design.
Features and Benefits:
•Suitable for shield connections.
•No end cover plate required.
•Explosion-tested version: No.
•Direct mounting installation advice.
•Snap-on fixing type.
Specifications:
| Depth | 41.6 mm |
| Height | 18 mm |
| Width | 21.1 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |
| Basic material | Steel |
| Cable diameter, max | 15 mm |
| Cable diameter, min | 4 mm |
| Connection cross-section, stranded, max | 15 mm² |
| Connection cross-section, stranded, min | 4 mm² |
| Stripping length | 18 mm |
| Type of connection | Spring connection |
| Pitch in mm (P) | 18 mm |
| Rated cross-section | 10 mm² |
| RoHS Compliance Status | Compliant without exemption |
| Product Carbon Footprint | 0.086 kg CO2 eq. |
