1716300000 - Steel Clamping Yoke for Busbar, Max 32mm Diameter (Pack of 10)
1716300000 - Steel Clamping Yoke for Busbar, Max 32mm Diameter (Pack of 10)
SKU: SKU: 1716300000 Download PDF
- 1716300000 - Steel Clamping Yoke for Busbar, Max 32mm Diameter (Pack of 10)
- 1716300000 - Steel Clamping Yoke for Busbar, Max 32mm Diameter (Pack of 10)
Couldn't load pickup availability
Description:

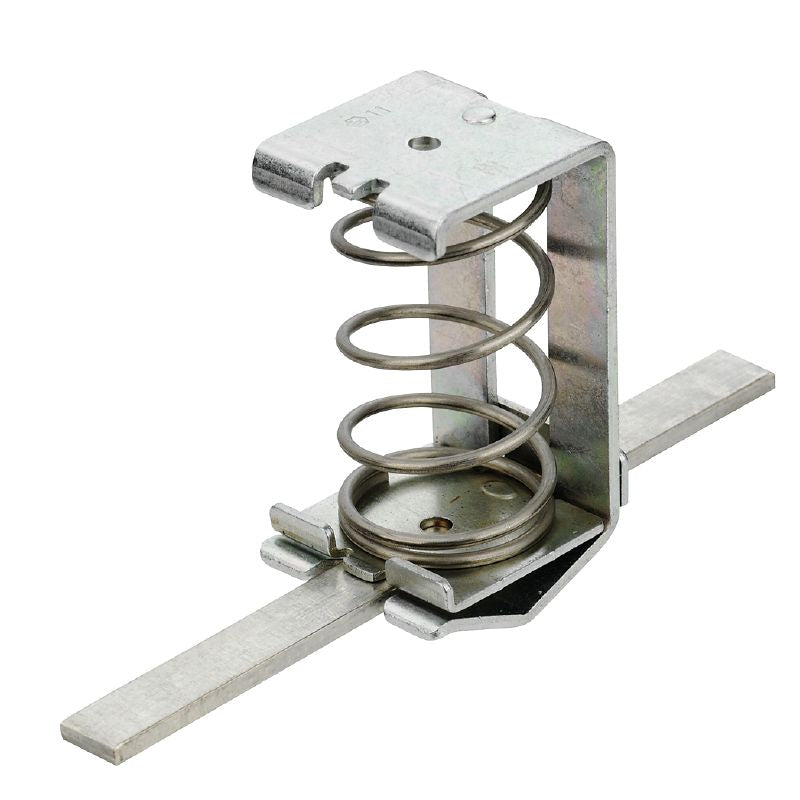

Introducing the KLBUE 15-32 clamping yoke, expertly crafted from steel and designed for reliable functionality with busbars This component is compliant with RoHS standards and features a sturdy construction, including an explosion-tested variant for added safety It performs effectively across a temperature spectrum of -60 °C to +130 °C
The yoke utilizes a spring connection mechanism and operates without the need for an end cover plate.
It is capable of securely clamping conductors ranging from a minimum diameter of 15 mm to a maximum diameter of 32 mm Additionally, it accommodates stranded cable connection cross-sections from 15 mm² to 32 mm² Weighing in at approximately 69608 g, this clamping yoke is a reliable choice for your electrical needs.
Features and Benefits:
•Installation advice indicates it is meant for busbar applications.
•Snap-on fixing type for easy installation.
•Clamps conductors securely within specified diameter ranges.
•Used for a shield connection in electrical systems.
Specifications:
| Depth | 64 mm |
| Height | 32 mm |
| Width | 33.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Rated cross-section | 32 mm² |
| Cable diameter, max. | 32 mm |
| Cable diameter, min. | 15 mm |
| Stripping length | 32 mm |
| Pitch in mm (P) | 36 mm |
| RoHS Compliance Status | Compliant without exemption |
| Product Carbon Footprint | 0.218 kg CO2 eq. |
| Basic material | Steel |
| UL 94 flammability rating | None |
| Explosion-tested version | Yes |
