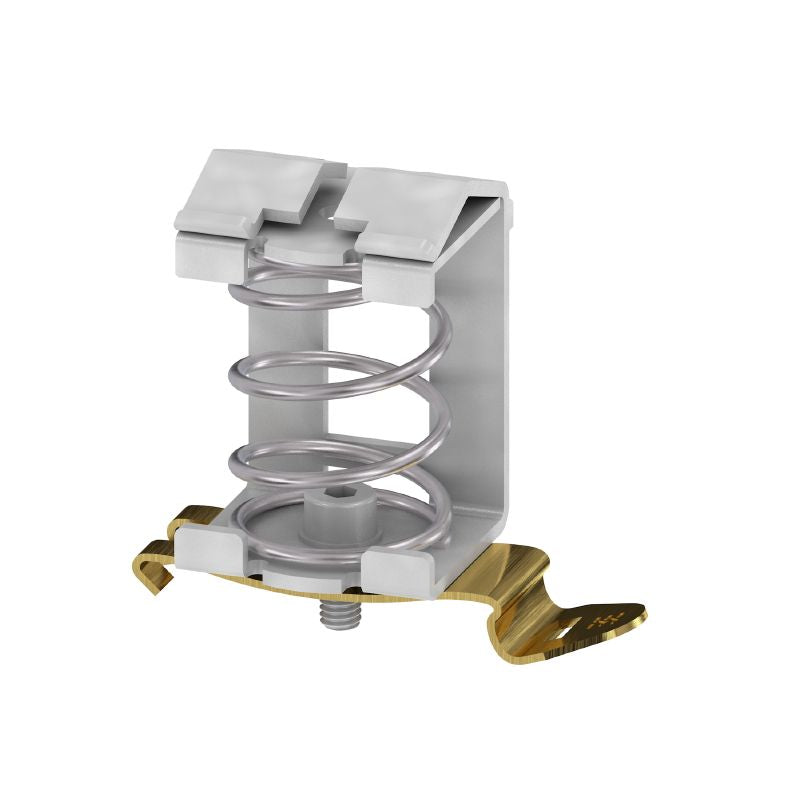

1252510000 - RoHS Compliant Clamping Yoke for TS 35 Rail Installation (Pack of 10)
1252510000 - RoHS Compliant Clamping Yoke for TS 35 Rail Installation (Pack of 10)
SKU: SKU: 1252510000 Download PDF
- 1252510000 - RoHS Compliant Clamping Yoke for TS 35 Rail Installation (Pack of 10)
- 1252510000 - RoHS Compliant Clamping Yoke for TS 35 Rail Installation (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KLBUE 10-20 FM4 clamping yoke, expertly engineered for secure shield connections and adhering to RoHS standards This versatile component easily installs on a TS 35 rail and eliminates the need for an end cover plate, making installation clean and straightforward Perfect for those seeking reliable and compliant solutions in their electrical setups.
Features and Benefits:
•Snap-on type of mounting.
•Designed for maximum cable diameter of 20 mm and minimum of 10 mm.
•Rated cross-section of 20 mm².
•Spring connection type for reliable electrical contact.
Specifications:
| Depth | 40 mm |
| Height | 50.5 mm |
| Width | 25 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Cable diameter, max. | 20 mm |
| Cable diameter, min. | 10 mm |
| Connection cross-section, stranded, max. | 20 mm² |
| Connection cross-section, stranded, min. | 10 mm² |
| Stripping length | 26 mm |
| Environmental Compliance | Compliant without exemption |
| Product Carbon Footprint | 0.097 kg CO2 eq. |
