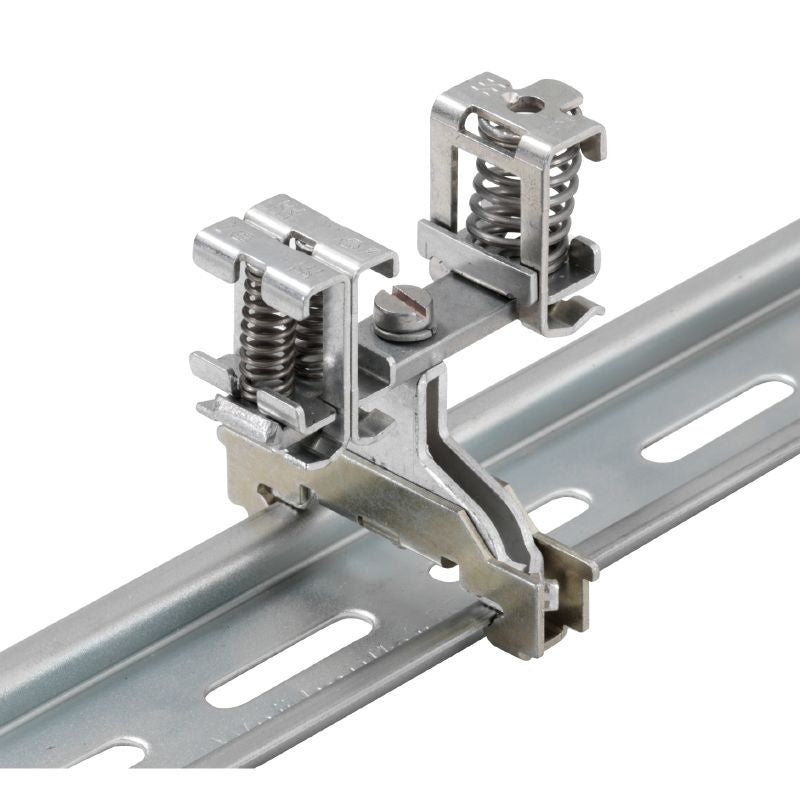

1749430000 - Steel Clamping Yoke for TS 35 Rail, 36.5mm Depth (Pack of 10)
1749430000 - Steel Clamping Yoke for TS 35 Rail, 36.5mm Depth (Pack of 10)
SKU: SKU: 1749430000 Download PDF
- 1749430000 - Steel Clamping Yoke for TS 35 Rail, 36.5mm Depth (Pack of 10)
- 1749430000 - Steel Clamping Yoke for TS 35 Rail, 36.5mm Depth (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust clamping yoke, crafted from durable steel and offered as a complete set of fixings This yoke is engineered for easy installation on a TS 35 mounting rail and adheres to RoHS compliance standards It boasts a depth of 365 mm and a height of 35 mm, with a 3 mm diameter Weighing in at just 608 grams, this product is designed to withstand storage temperatures ranging from -25 °C to 55 °C, while functioning effectively in ambient conditions between -5 °C and 40 °C.
Ideal for various applications requiring secure mounting solutions.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Direct mounting installation.
•Explosion-tested version.
Specifications:
| Depth | 36.5 mm |
| Height | 35 mm |
| Diameter | 3 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Basic material | Steel |
| Type of fixing | When screwed in |
| Cable diameter, max | 8 mm |
| Cable diameter, min | 3 mm |
| TS 35 offset | 26.5 mm |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ECLASS 15.0 | 27-25-03-90 |
