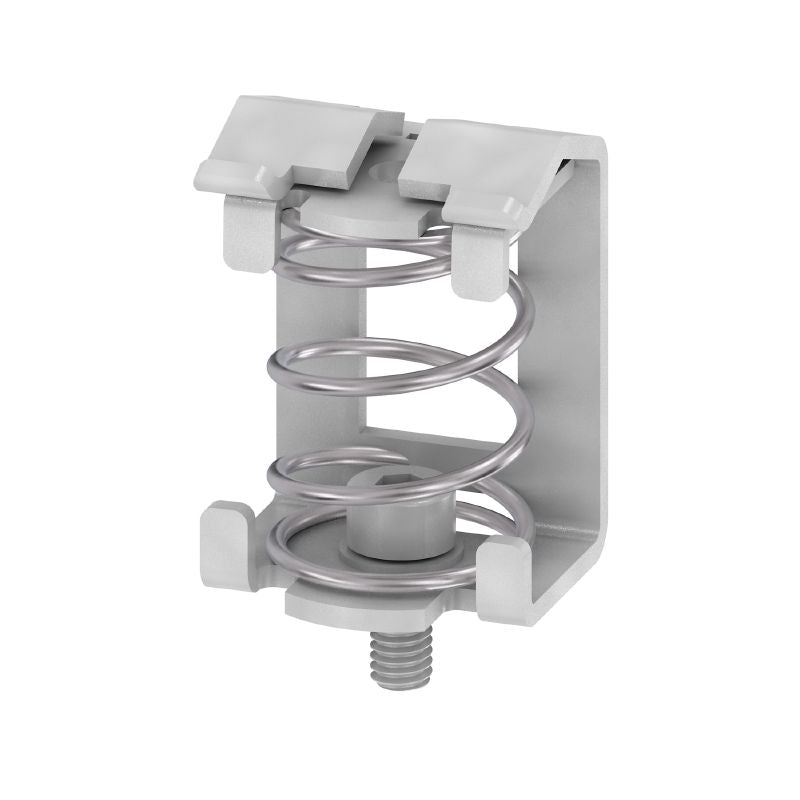

1712311001 - Durable Steel Clamps for Cable Diameters 4-13.5 mm (Pack of 10)
1712311001 - Durable Steel Clamps for Cable Diameters 4-13.5 mm (Pack of 10)
SKU: SKU: 1712311001 Download PDF
- 1712311001 - Durable Steel Clamps for Cable Diameters 4-13.5 mm (Pack of 10)
- 1712311001 - Durable Steel Clamps for Cable Diameters 4-13.5 mm (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The KLBUE 4-135 SC is engineered for reliable connections of shielding using steel clamps Constructed from robust steel, this product adheres to RoHS standards rigorously It operates effectively within a temperature range of -5 °C to 40 °C and can be stored comfortably between -25 °C and 55 °C Designed to accommodate cable diameters from 4 mm to 135 mm, it features a connection cross-section between 4 mm² and 13.
5 mm², ensuring versatility for various applications.
Features and Benefits:
•Compliant with RoHS standards.
•Direct mounting capability.
•Snap-on fixing type.
•Screw mounting type.
•No end cover plate required.
•Explosion-tested version not included.
Specifications:
| Depth | 31.45 mm |
| Height | 22 mm |
| Width | 20.1 mm |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Cable diameter, max. | 13.5 mm |
| Cable diameter, min. | 4 mm |
| Connection cross-section, stranded, max. | 13.5 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
| Stripping length | 22 mm |
| Length of thread | 5.3 mm |
| Pitch in mm (P) | 20 mm |
| Rated cross-section | 10 mm² |
| ETIM 6.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
