1403090000 - PA 66 GF 30 Clamping Yoke, Temp Range -25°C to 105°C
1403090000 - PA 66 GF 30 Clamping Yoke, Temp Range -25°C to 105°C
SKU: SKU: 1403090000 Download PDF
- 1403090000 - PA 66 GF 30 Clamping Yoke, Temp Range -25°C to 105°C
- 1403090000 - PA 66 GF 30 Clamping Yoke, Temp Range -25°C to 105°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

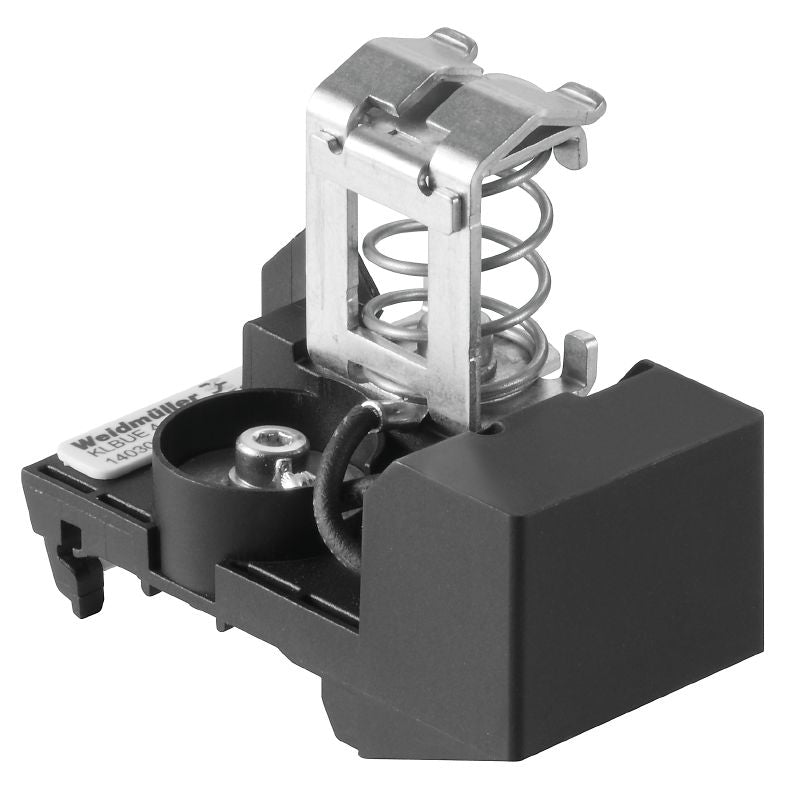

Introducing the KLBUE 4-135 RC TS35, a robust device featuring a clamping yoke constructed from durable PA 66 GF 30 material This model simplifies shield connections as it eliminates the need for an end cover plate Designed to function efficiently within a wide temperature range, it can operate continuously between -25 °C and 105 °C Additionally, this product meets RoHS standards, taking advantage of specified exemptions.
Features and Benefits:
•Compliant with RoHS and has an exemption.
•Designed for direct mounting and utilizes snap-on type mounting.
•Includes a spring connection for effective cable handling.
•Often utilized in environments requiring temperature regulation and secure electrical connections on TS 35 mounting rails..
Specifications:
| Depth | 55.6 mm |
| Height | 67.5 mm |
| Width | 37.5 mm |
| Cable diameter, max | 13.5 mm |
| Cable diameter, min | 4 mm |
| Stripping length | 24.3 mm |
| Rated cross-section | 10 mm² |
| Rated voltage | 230 V |
| UL 94 flammability rating | V-0 |
| Ambient temperature | -5 °C…40 °C |
| Storage temperature | -25 °C...55 °C |
