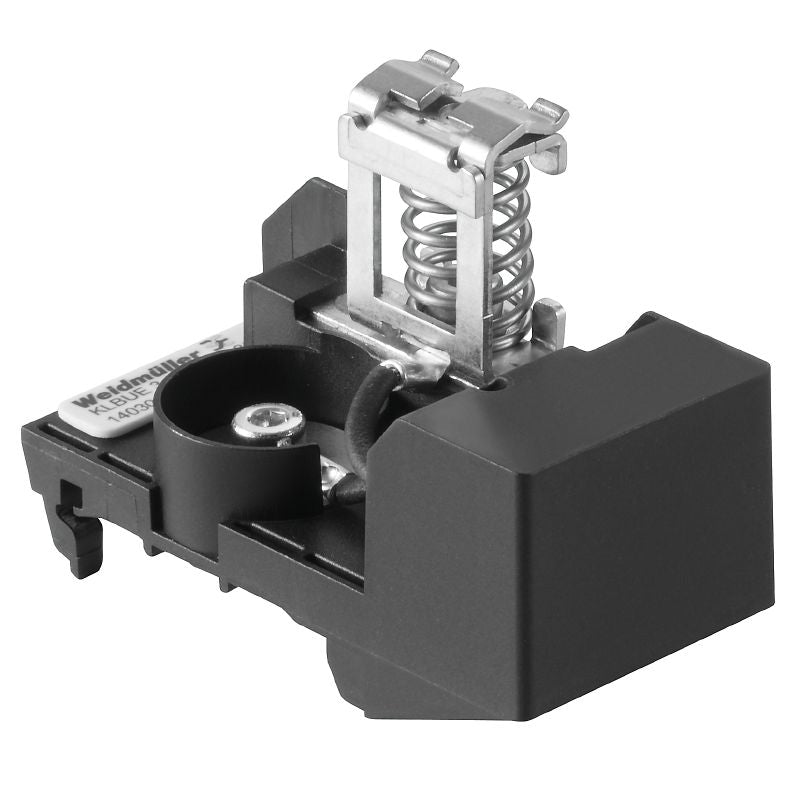

1403070000 - PA 66 GF 30 Clamping Yoke for 3-8mm Cables
1403070000 - PA 66 GF 30 Clamping Yoke for 3-8mm Cables
SKU: SKU: 1403070000 Download PDF
- 1403070000 - PA 66 GF 30 Clamping Yoke for 3-8mm Cables
- 1403070000 - PA 66 GF 30 Clamping Yoke for 3-8mm Cables
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The KLBUE 3-8 RC TS27 clamping yoke is expertly made from PA 66 GF 30 material, ensuring strength and reliability Designed for shield connections, this component adheres to RoHS standards for safety and environmental compliance It boasts a convenient snap-on mounting type for effortless installation With a rated connection accommodating cable diameters from 3 mm to 8 mm, it also features a robust spring connection type, making it a versatile choice for various applications.
Features and Benefits:
•Compliant with RoHS.
•Designed for shield connections.
•Direct mounting and snap-on installation.
•Various cable diameter compatibility.
Specifications:
| Depth | 50 mm |
| Height | 67.5 mm |
| Width | 35 mm |
| Storage temperature | -25°C to 55°C |
| Ambient temperature | -5°C to 40°C |
| Continuous operating temp., min. | -25°C |
| Continuous operating temp., max. | 105°C |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Connection cross-section, stranded, max. | 8 mm² |
| Connection cross-section, stranded, min. | 3 mm² |
| Stripping length | 22 mm |
| Rated cross-section | 8 mm² |
| Rated voltage | 230 V |
| UL 94 flammability rating | V-0 |
| Mounting rail | TS 27 |
