Description:

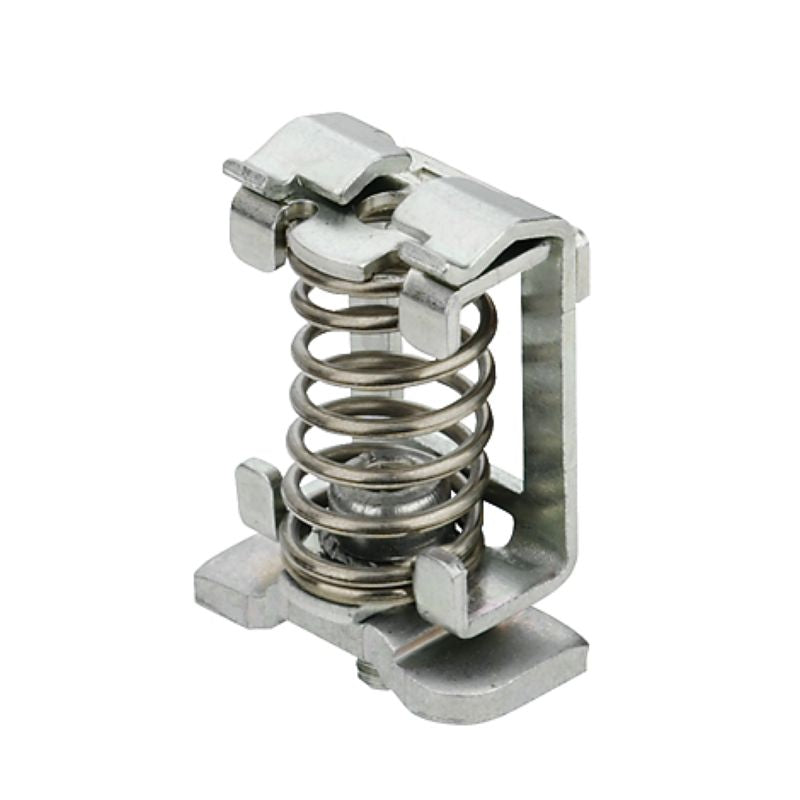

Introducing the KLBUE 3-8 CPF, a robust clamping yoke crafted from durable steel, ensuring compliance with RoHS standards Optimally designed for shield connections, this unit allows for straightforward attachment to TS 27 type mounting rails It has been rigorously tested for explosion safety and meets various classification standards including ETIM and ECLASS The clamping mechanism accommodates conductor diameters from 3 mm to 8 mm with ease.
Weighing in at approximately 14344 g, this reliable device combines efficiency with security, making it a valuable addition to your installation toolkit.
Features and Benefits:
•Designed for shield connections.
•Explosion-tested version.
•Direct mounting installation.
Specifications:
| Depth | 26 mm |
| Height | 18 mm |
| Width | 14.5 mm |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Connection cross-section, stranded, max. | 8 mm² |
| Connection cross-section, stranded, min. | 3 mm² |
| Stripping length | 18.5 mm |
| Rated cross-section | 8 mm² |
| Mounting rail | TS 27 |
| RoHS Compliance Status | Compliant without exemption |
| Product Carbon Footprint | 0.066 kg CO2 eq. |
