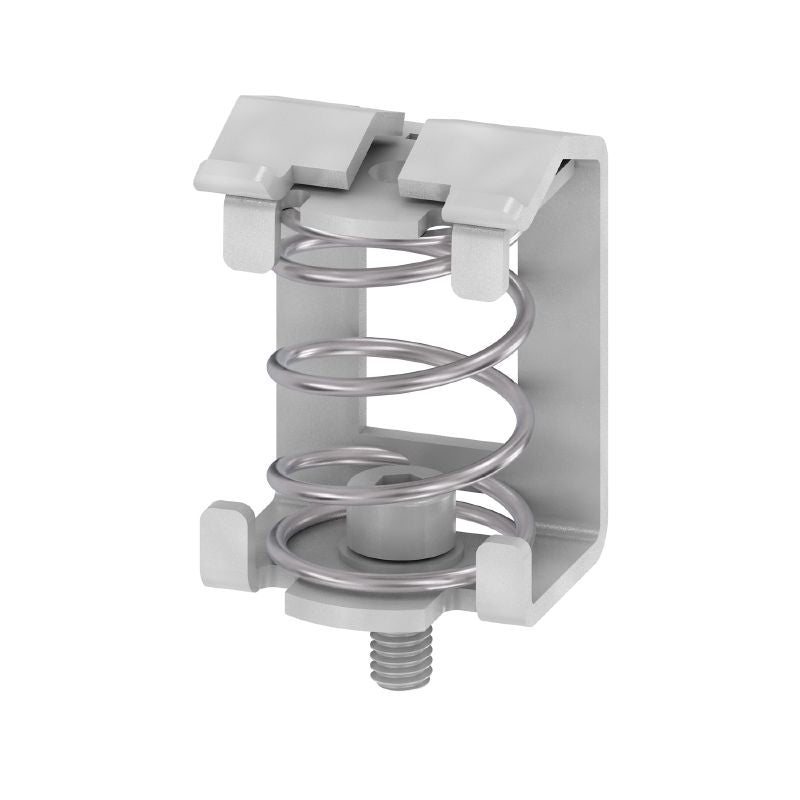

1712310050 - Steel Clamping Yoke for 4-13.5mm Cables, 50 Pack (Pack of 50)
1712310050 - Steel Clamping Yoke for 4-13.5mm Cables, 50 Pack (Pack of 50)
SKU: SKU: 1712310050 Download PDF
- 1712310050 - Steel Clamping Yoke for 4-13.5mm Cables, 50 Pack (Pack of 50)
- 1712310050 - Steel Clamping Yoke for 4-13.5mm Cables, 50 Pack (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KLBUE 4-135 SC clamping yoke, expertly crafted from sturdy steel for optimal performance in shield connections This environmentally compliant component adheres to RoHS standards without exceptions and contains no SVHCs exceeding 01 wt% It is designed for straightforward installation and is conveniently packaged in sets of 50 Accommodating cable diameters from 4 to 135 mm, it offers a rated connection cross-section of 10 mm².
Additionally, this versatile yoke can operate effectively across a temperature spectrum of -60 °C to 130 °C.
Features and Benefits:
•RoHS compliant without exemption.
•Direct mounting installation.
•For shield connection.
•Mounting plate required.
•Spring connection type.
Specifications:
| Depth | 31.45 mm |
| Height | 22 mm |
| Width | 20.1 mm |
| Net weight | 18.32 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |
| Cable diameter, max | 13.5 mm |
| Cable diameter, min | 4 mm |
| Connection cross-section, stranded, max | 13.5 mm² |
| Connection cross-section, stranded, min | 4 mm² |
| Stripping length | 22 mm |
| Rated cross-section | 10 mm² |
| ETIM 6.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
