1600480000 - Steel Clamping Yoke for Cables 3-8mm, 26mm Depth (Pack of 10)
1600480000 - Steel Clamping Yoke for Cables 3-8mm, 26mm Depth (Pack of 10)
SKU: SKU: 1600480000 Download PDF
- 1600480000 - Steel Clamping Yoke for Cables 3-8mm, 26mm Depth (Pack of 10)
- 1600480000 - Steel Clamping Yoke for Cables 3-8mm, 26mm Depth (Pack of 10)
Couldn't load pickup availability
Description:

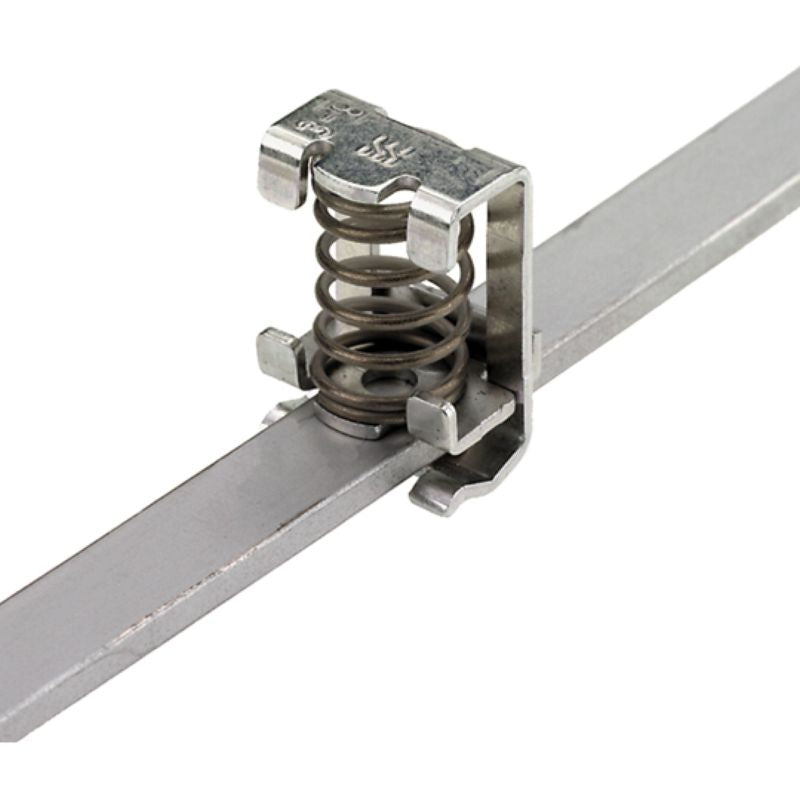

Introducing the KLBUE 3-8 clamping yoke, expertly crafted from robust steel, making it suitable for a range of applications This yoke features precise dimensions: 26 mm in depth, 185 mm in height, and 145 mm in width It's designed to accommodate cable diameters from 3 mm to 8 mm and is compatible with stranded cables having a connection cross-section of 3 mm² to 8 mm² Built to perform in various environments, this yoke can operate within a temperature range of -60 °C to 130 °C.
Features and Benefits:
•Compliant with RoHS regulations without exemption.
•Explosion-tested version available.
•Snap-on type of fixing for convenient installation.
•Compatible with busbar mounting rail.
•Environmental product compliance is fulfilled.
•For shield connections.
•Busbar installations.
Specifications:
| Depth | 26 mm |
| Height | 18.5 mm |
| Width | 14.5 mm |
| Net weight | 9 g |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |
| Basic material | Steel |
| Cable diameter, max | 8 mm |
| Cable diameter, min | 3 mm |
| Connection cross-section, stranded, max | 8 mm² |
| Connection cross-section, stranded, min | 3 mm² |
| Stripping length | 18.5 mm |
| Type of connection | Spring connection |
| Pitch in mm | 13 mm |
| Rated cross-section | 8 mm² |
| ETIM classification | EC002020 |
| ECLASS classification | 27-14-11-50 |
