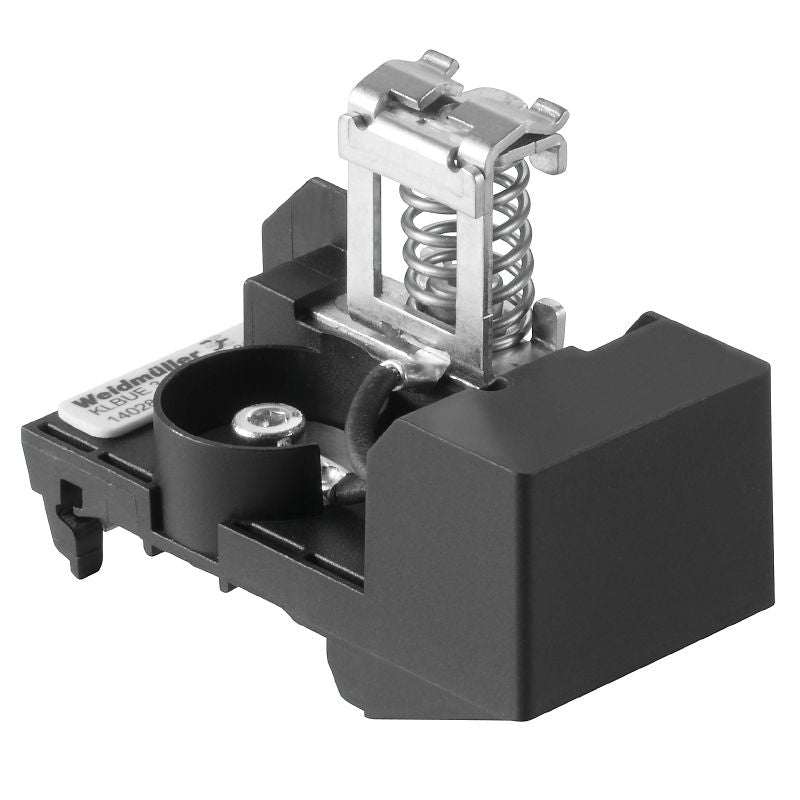

1402830000 - PA 66 GF 30 Snap-On Clamping Yoke for TS 35 Rail

1402830000 - PA 66 GF 30 Snap-On Clamping Yoke for TS 35 Rail

SKU: SKU: 1402830000   Download PDF

Select a Variant:
  • 1402830000 - PA 66 GF 30 Snap-On Clamping Yoke for TS 35 Rail
Qty:
Regular price Now $65.21   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $65.21 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the KLBUE 3-8 RC TS35 clamping yoke, crafted from durable PA 66 GF 30 material and compliant with RoHS standards, making it a reliable choice for shield connections This component features an easy direct mounting installation and utilizes a convenient snap-on mechanism Compatible with TS 35 rails, it eliminates the need for an end cover plate, ensuring a streamlined installation process.

Ideal for various applications where secure connections are essential.

Features and Benefits:

    •Compliant with RoHS and includes a specific exemption.

    •Can clamp cables with a maximum diameter of 8 mm and a minimum of 3 mm.

    •Spring connection type for reliable connectivity.

    •Net weight is 61.29 g.

Specifications:

 Depth: 50 mm
 Height: 67.5 mm
 Width: 35 mm
 Storage temperature: -25 °C to 55 °C
 Ambient temperature: -5 °C to 40 °C
 Continuous operating temp., min.: -25 °C
 Continuous operating temp., max.: 105 °C
 Cable diameter, max.: 8 mm
 Cable diameter, min.: 3 mm
 Connection cross-section, stranded, max.: 8 mm²
 Connection cross-section, stranded, min.: 3 mm²
 Stripping length: 22 mm
 Rated cross-section: 8 mm²
 Rated voltage: 230 V
 UL 94 flammability rating: V-0
