1252520000 - Versatile Clamping Yoke for Shields, -60°C to 130°C (Pack of 10)
1252520000 - Versatile Clamping Yoke for Shields, -60°C to 130°C (Pack of 10)
SKU: SKU: 1252520000 Download PDF
- 1252520000 - Versatile Clamping Yoke for Shields, -60°C to 130°C (Pack of 10)
- 1252520000 - Versatile Clamping Yoke for Shields, -60°C to 130°C (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

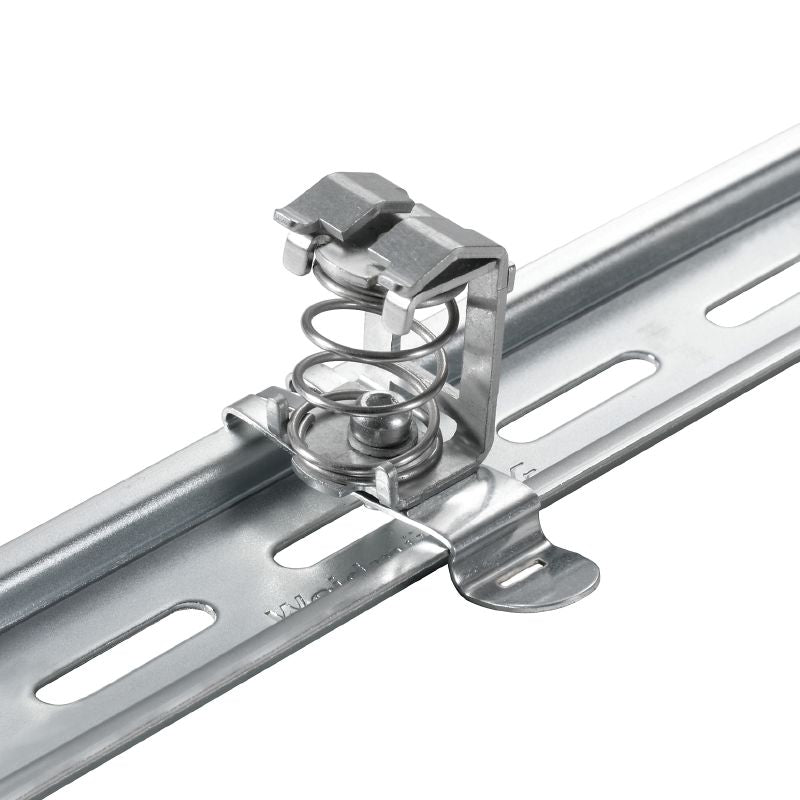

Introducing the KLBUE 4-135 FM4 clamping solution, expertly crafted for reliable connection and clamping of shields This model incorporates a robust clamping yoke for seamless integration With RoHS compliance, it adheres to essential environmental standards without exceptions The versatility of this product is evident in its wide temperature adaptability, accommodating storage from -25 °C to 55 °C, and functioning flawlessly in conditions ranging from -60 °C to 130 °C.
Its robust design makes it suitable for a variety of environments, ensuring dependable performance wherever it is used.
Features and Benefits:
•Compliant with RoHS regulations.
•Snap-on mounting type for easy installation.
•No end cover plate required for setup.
•TS 35 mounting rail compatibility.
•Spring connection type for reliable interconnections.
Specifications:
| Depth | 31.5 mm |
| Height | 50.5 mm |
| Width | 20.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temperature, min. | -60 °C |
| Continuous operating temperature, max. | 130 °C |
| Cable diameter, max. | 13.5 mm |
| Cable diameter, min. | 4 mm |
| Rated cross-section | 10 mm² |
| Stripping length | 22 mm |
| Connection cross-section, stranded, max. | 13.5 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
