Description:

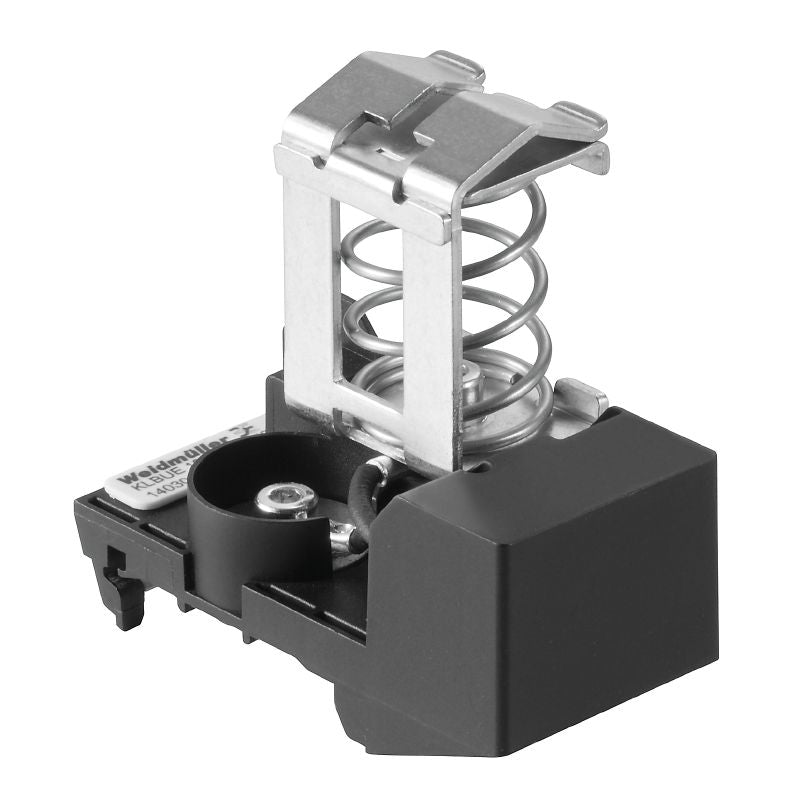

Introducing the KLBUE 10-20 RC TS35, a robust solution engineered for shield connections, featuring a reliable spring connection type Crafted from durable PA 66 GF 30, this component boasts a sleek black finish It is designed for straightforward installation on TS 35 mounting rails, ensuring a seamless setup
With the capability to accommodate cable diameters between 10 mm and 20 mm, it supports connection cross-sections from 10 mm² to 20 mm².
This version does not undergo explosion testing and is conveniently designed without the need for an end cover plate, making it a practical choice for various applications.
Features and Benefits:
•RoHS compliant with exemption.
•Rated cross-section of 20 mm².
•Rated voltage of 230 V.
•Installation advice for direct mounting.
•Snap-on type of mounting.
Specifications:
| Depth: | 63.6 mm |
| Height: | 67.5 mm |
| Width: | 39.6 mm |
| Net weight: | 86.24 g |
| Storage temperature: | -25 °C...55 °C |
| Ambient temperature: | -5 °C…40 °C |
| Continuous operating temp. min: | -25 °C |
| Continuous operating temp. max: | 105 °C |
| Basic material: | PA 66 GF 30 |
| UL 94 flammability rating: | V-0 |
| Cable diameter, max: | 20 mm |
| Cable diameter, min: | 10 mm |
| Stripping length: | 30 mm |
