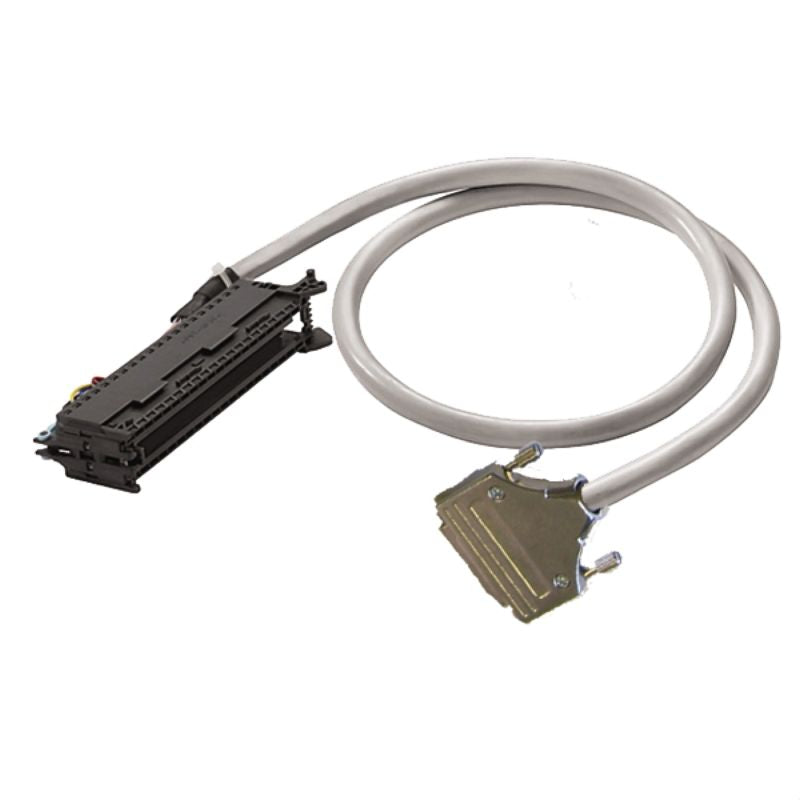

1991700040 - 4m PVC Pre-Assembled Cable with SUB-D 25P Connector

SKU: SKU: 1991700040 Download PDF

Variant:

1991700040 - 4m PVC Pre-Assembled Cable with SUB-D 25P Connector

Now $265.56

~~BEFORE $0.00~~ Now $265.56

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S1500-SD25-V3-4M pre-assembled cable, engineered for dependable connectivity With a wire cross-section of 025 mm², this cable is made from durable PVC material Spanning a length of 4 meters, it provides ample reach for a variety of uses The cable is equipped with a SUB-D FEMALE 25P interface connector, making it an excellent choice for transmitting analogue signals seamlessly.

Features and Benefits:

•Compliant with RoHS standards with exemptions.

•Environmental compliance with REACH regulations.

•Suitable for analogue signals.

Specifications:

Storage temperature	-10...60 °C
Operating temperature	-10...50 °C
Cable	Cable LiYCY
Connector PLC side	SIEMENS S71500 6ES7592-1AM00-0XB0 40P
Number of poles, min.	25-pole
Outer diameter	10.15 ± 1 mm
Electrical Data	{'Capacity wire / shield': '300 pF/m', 'Capacity wire / wires': '300 pF/m', 'Permissible current strength per path, max.': '1 A', 'Rated voltage': '≤ 60 Vdc ≤ 25 Vac', 'Resistance': '≤ 80 mΩ/m', 'Total current, max.': '3 A'}
GTIN (EAN)	4032248272174
Order No.	1991700040
Basic material	PVC
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1', 'SCIP': '4bbf2c0d-0764-4fc8-bb24-9351c28c190d'}
ETIM classification	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237'}
ECLASS classification	{'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
