1985970000 - RoHS Compliant Connector for 30V AC, 60V DC, Temp -40°C to 60°C

1985970000 - RoHS Compliant Connector for 30V AC, 60V DC, Temp -40°C to 60°C

SKU: 1985970000   Download PDF

Select a Variant:
  • 1985970000 - RoHS Compliant Connector for 30V AC, 60V DC, Temp -40°C to 60°C
Qty:
Now $149.75   Web pricing policy
BEFORE   $0.00 Now $149.75 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

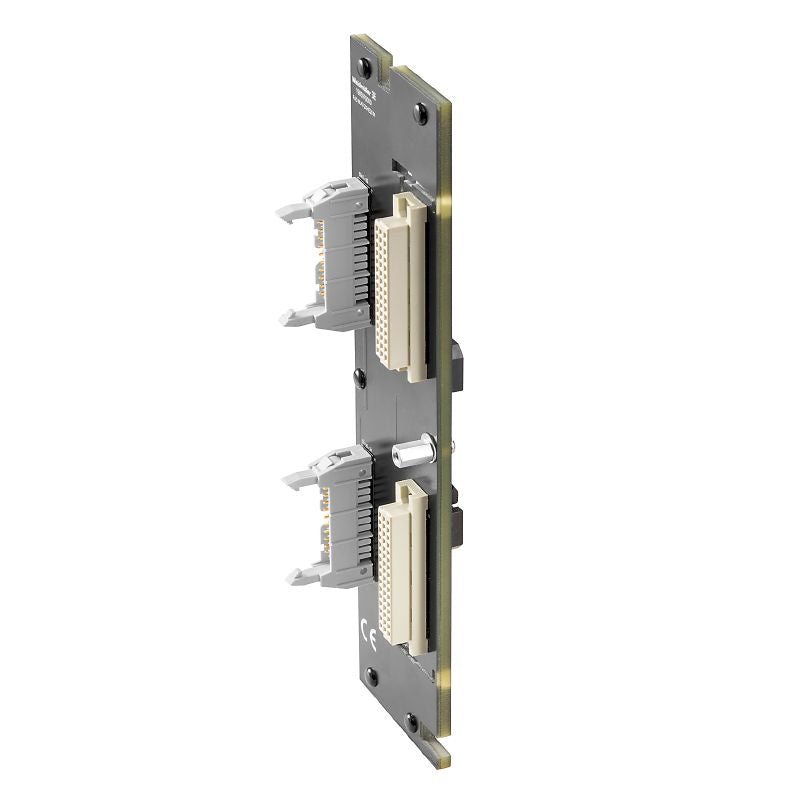

Introducing the FAD BLK9 2XHE20 M, a compliant electronic component that adheres to RoHS regulations This unit is equipped with two connectors crafted to meet both IEC60603-13 and DIN41651 standards It operates efficiently within a voltage range of 30 V AC to 60 V DC, allowing a maximum channel current of 1 A, and up to 2 A per byte, with an overall capability of 6 A Designed for versatility, this component performs well in diverse environments, supporting storage temperatures from -40 °C to 60 °C and operational ranges from -25 °C to 50 °C.

Features and Benefits:

    •Meets RoHS compliance without exemptions.

    •No SVHC above 0.1 wt%.

    •Connector compatibility according to IEC60603-13/DIN41651.

    •Rated insulation voltage is less than 250 V AC.

    •Surge voltage category III.

    •Pollution severity level 2.

    •Insulation test voltage of 1.2 kV AC.

Specifications:

 Depth 36 mm
 Height 218 mm
 Width 54 mm
 Storage temperature range -40...60 °C
 Operating temperature range -25...50 °C
 Max. current per channel 1 A
 Max. current per byte 2 A
 Total operating current 6 A
 Insulation coordination (EN50178) According to DIN EN 50178
 ETIM classification EC002584
 ECLASS classification 27-33-02-92
