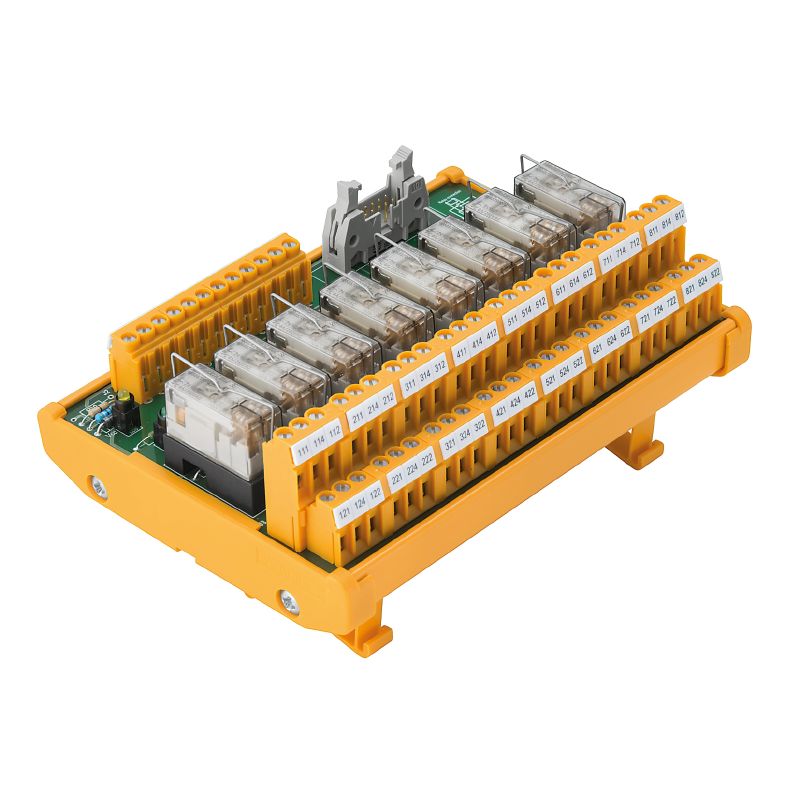

1449070000 - RSM-8 115VAC/DC Relay with Tension-Clamp Connection, ROHS Compliant

SKU: SKU: 1449070000 Download PDF

Variant:

1449070000 - RSM-8 115VAC/DC Relay with Tension-Clamp Connection, ROHS Compliant

Now $222.72

~~BEFORE $0.00~~ Now $222.72

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 115VAC/DC 2CO Z, engineered for a variety of applications with its reliable tension-clamp connection interface This unit is compliant with ROHS standards and carries a UL File Number for additional safety assurance Please note, this model has been discontinued It operates effectively within specific temperature ranges and weighs approximately 413273 grams, making it a robust choice for your needs.

Features and Benefits:

•Specialized tension-clamp connection.

•LED status display showing green for each relay.

•Mechanical service life rated for 30 million switching cycles.

Specifications:

Depth	66 mm
Height	109 mm
Width	149 mm
Operating temperature	-25...50 °C
Storage temperature	-40...60 °C
Input voltage	115 VAC/DC ± 10%
Input current	AC 3.3 mA / DC 4.8 mA
Relay type	RCL
Type of output	Potential-free contact
Rated current I max	4.6 A
Rated voltage AC U N (output)	250 V
Max. AC continuous current	5 A
Minimum contact current	0.1 A
Minimum contact voltage	5 V
Clamping range, max	2.5 mm²
Clamping range, min	0.13 mm²
Insulation test voltage AC	1.2 kV
