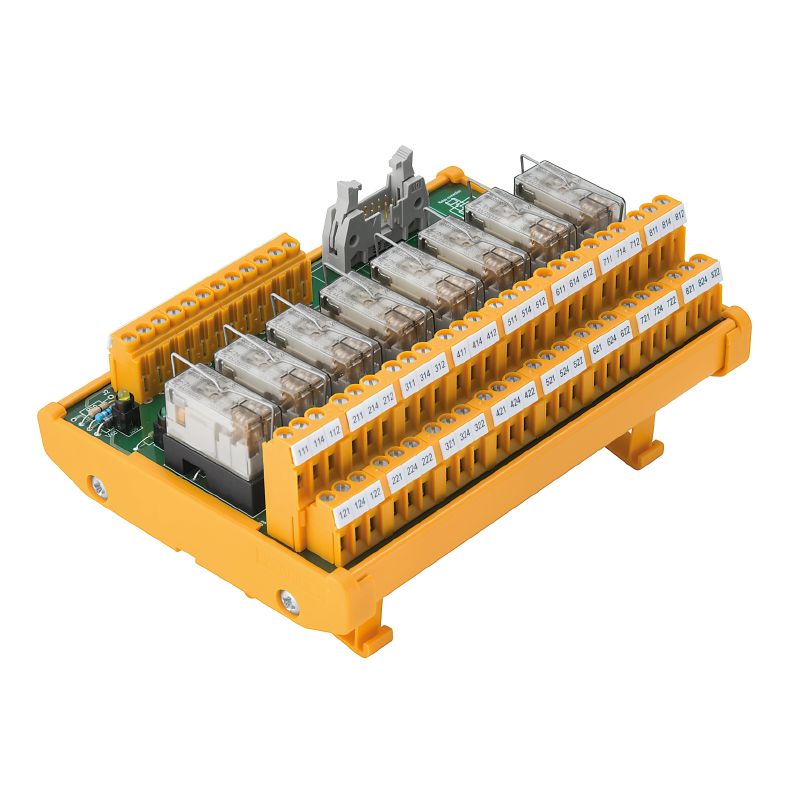

1448890000 - RSM-8 12V Interface, 71mm Deep, RoHS Compliant with LED Indicators

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 12V+ 2CO S interface, engineered with secure screw connections and compliant with RoHS standards This device is recorded under UL file number E141197, although it is currently discontinued With compact dimensions of 149 mm in width, 109 mm in height, and a depth of 71 mm, it has a weight of 461208 g The unit is designed to function efficiently in temperatures ranging from -25 °C to 50 °C, and it can be stored safely at temperatures between -40 °C and 60 °C.

Notably, it features LED indicators that display the relay status in green and the power supply status in yellow, providing clear visual feedback on operational conditions.

Features and Benefits:

•Screw connection interface.

•RoHS compliant.

•LED indicators for power and relay status.

•Discontinued item.

Specifications:
