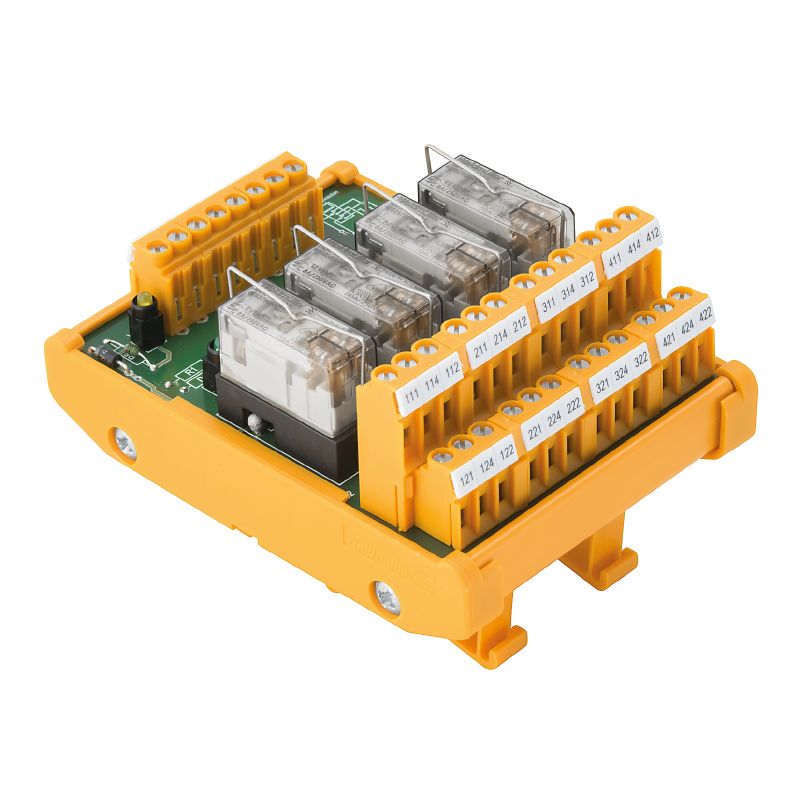

1447510000 - RSM-4 48V Device, 66mm x 87mm, Screw Connections

1447510000 - RSM-4 48V Device, 66mm x 87mm, Screw Connections

SKU: 1447510000 Download PDF

Variant:
  • 1447510000 - RSM-4 48V Device, 66mm x 87mm, Screw Connections
Now $64.11
BEFORE   $0.00 Now $64.11
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 48V-1CO S, a specialized device that features a convenient screw connection interface This product adheres to RoHS regulations and proudly carries the UL certification number E141197 Please note that this item is now discontinued With compact dimensions of 66 mm in depth, 87 mm in height, and 69 mm in width (equivalent to approximately 26 x 34 x 27 inches), it weighs just 181 grams.

It is built to operate effectively in temperatures ranging from -25 °C to 50 °C and can be stored safely between -40 °C and 60 °C.

Features and Benefits:

    •Compliant with RoHS standards.

    •LED status display indicators.

    •Screw connection for easy attachment.

    •Mechanical service life of 30 million switching cycles.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 69 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated current I N 8.7 mA
 Rated voltage DC U N (supply) 48 V
 Rated voltage DC U N (input) 48 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Maximum AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) {'Pollution severity level': '2', 'Pulse voltage test (1,2/50μs)': '6 kV', 'Insulation test voltage AC': '1.2 kV'}
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
