1129130000 - 16-Channel PLC Switch with LED Status Display

1129130000 - 16-Channel PLC Switch with LED Status Display

SKU: 1129130000   Download PDF

Select a Variant:
  • 1129130000 - 16-Channel PLC Switch with LED Status Display
Qty:
Now $472.68   Web pricing policy
BEFORE   $0.00 Now $472.68 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

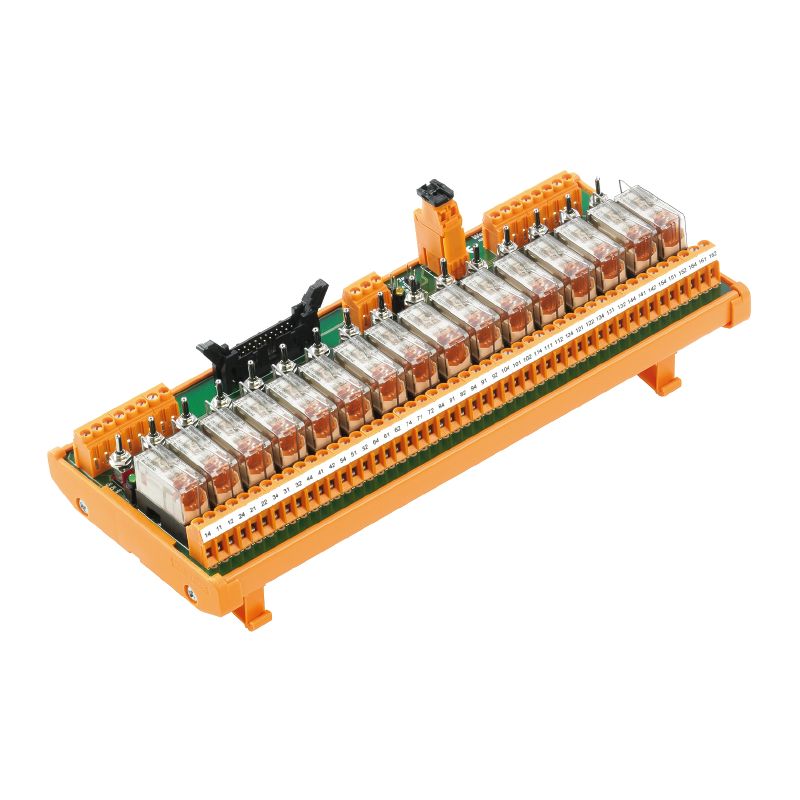

Introducing the RSM-16 PLC SW 1CO Z, a versatile 16-channel interface equipped with a reliable switch and tension-clamp connections This product is RoHS compliant and comes with a UL certification, ensuring it meets high safety standards Engineered for dependable performance, it operates within a defined temperature range and is rated for both input and output voltage The built-in LED status display enhances operational visibility, making it an excellent choice for industrial settings.

Its robust design supports efficient switching cycles, making it ideal for a variety of automation applications.

Features and Benefits:

    •Compliant with RoHS standards.

    •LED status display for monitoring.

    •Supports up to 3 million switching cycles.

    •Utilizes tension-clamp connections for secure wiring.

Specifications:

 Order No. 1129130000
 Dimensions 68 mm depth, 109 mm height, 255 mm width
 Net weight 770 g
 Operating temperature -25 to 50 °C
 Rated current (supply) 2 A
 Rated voltage DC (supply) 24 V
 Relay type RCL
 Rated voltage AC (output) 250 V
 Max. AC continuous current 6 A
 Pollution severity level 2
 Clamping range (max) 2.5 mm²
 Clamping range (min) 0.13 mm²
