1114861001 - 230V AC Relay Module with 4 Contacts, 3A Capacity

1114861001 - 230V AC Relay Module with 4 Contacts, 3A Capacity

SKU: 1114861001 Download PDF

Variant:
  • 1114861001 - 230V AC Relay Module with 4 Contacts, 3A Capacity
Now $215.00
BEFORE   $0.00 Now $215.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

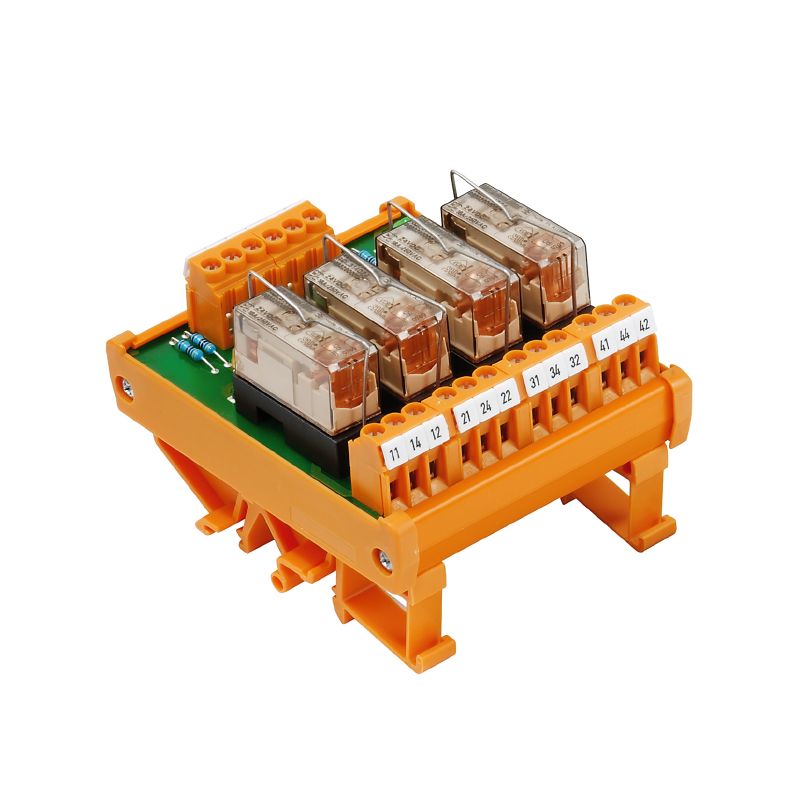

Introducing the RSM 4RS relay module, a reliable solution featuring four CO contacts made from AgNi 90/10 It operates at a control voltage of 230V AC and is capable of handling a maximum continuous current of 3 A Built with screw connections for secure installation, this model is designed without a test button, making it a straightforward choice for your relay needs.

Features and Benefits:

    •RoHS compliant.

    •Compact dimensions for easy installation.

    •Durable mechanical service life of 30 x 10^6 switching cycles.

Specifications:

 Depth 76 mm
 Height 87 mm
 Width 75 mm
 Operating temperature -25 °C to 50 °C
 Storage temperature -40 °C to 60 °C
 Rated voltage AC U N (input) 230 V
 Rated current I max (output) 3 A
 Switch-on delay ≤ 10 ms
 Switch-off delay ≤ 10 ms
 Power rating 1.2 VA
 Humidity 40 °C / 93 % relative humidity, no condensation
 GTIN (EAN) 4032248047833
