Description:

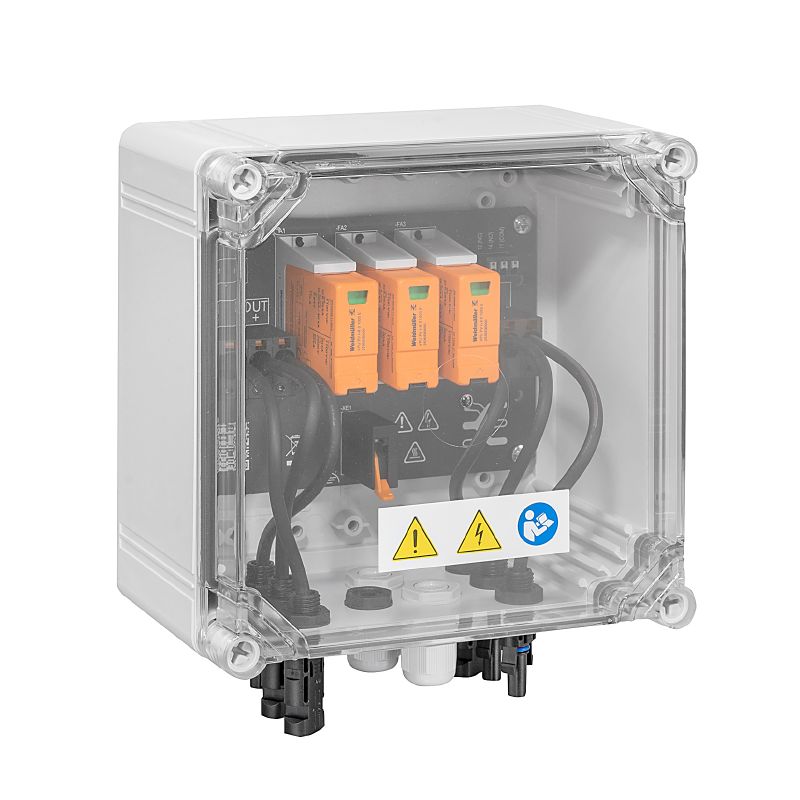

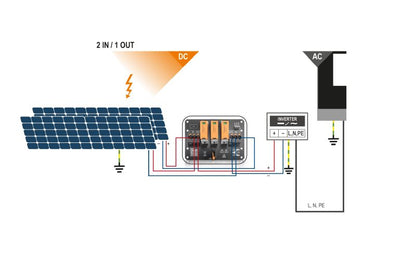

Introducing the reliable Photovoltaic Combiner Box, designed to operate at a maximum voltage of 1100 V This device features a single Maximum Power Point (MPP) with two inputs and one output per MPP, optimizing your solar energy collection It is equipped with surge protection types I and II, providing enhanced safety and compliance with RoHS standards Perfect for efficient solar energy management.
Features and Benefits:

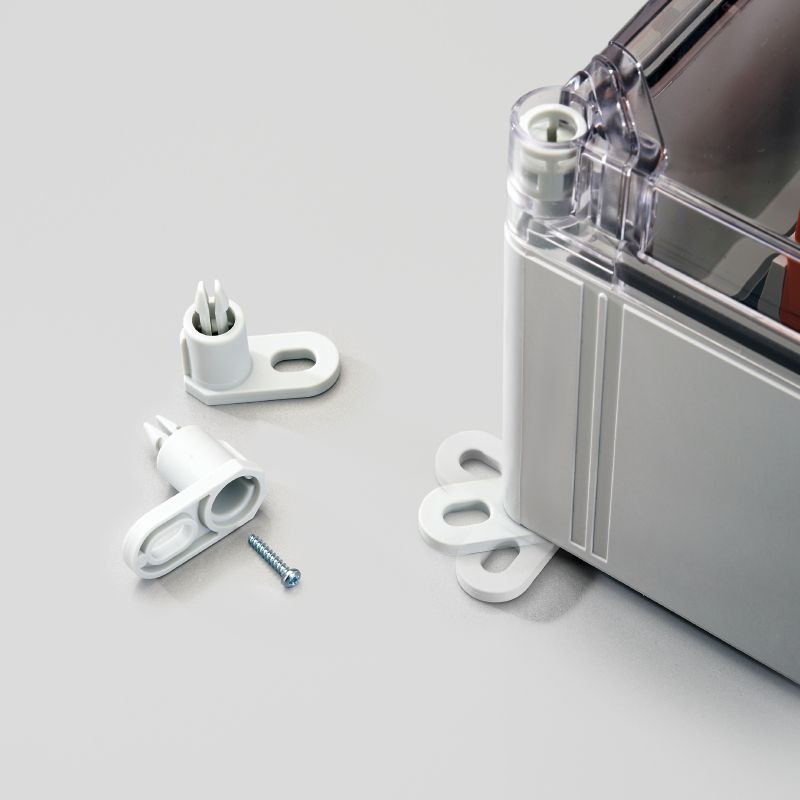

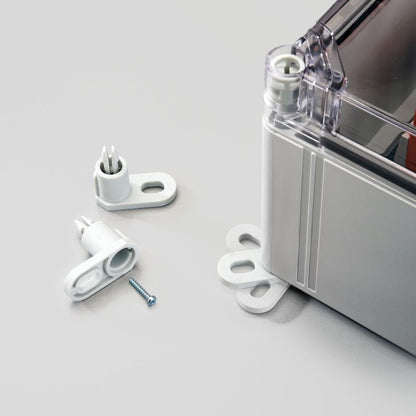

•Includes 4 mounting feet.
•Designed for installation in protected outdoor areas.
•Constructed from polycarbonate and glass-fibre reinforced polyester.
•Provides IP65 protection.
•Meets EN 61643-31 standards.

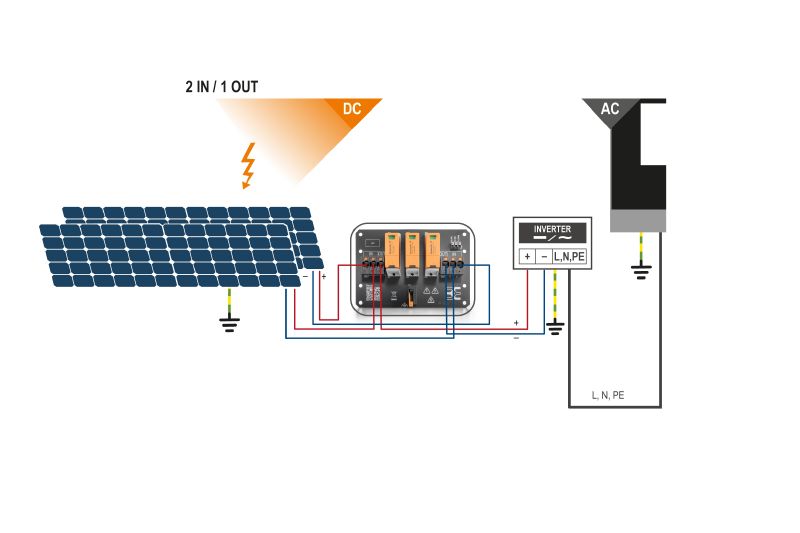

•Suitable for protecting the DC side of photovoltaic systems.
Specifications:

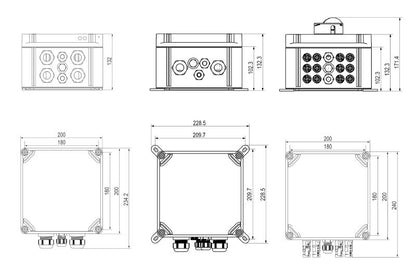

| Depth | 132 mm |
| Height | 234 mm |
| Width | 200 mm |
| Net weight | 1660 g |
| Ambient temperature | -40 °C…50 °C |
| Humidity | 5...95 %, no condensation |
| Rated DC voltage | 1,100 V |
| Current per Maximum Power Point, max. | 30 A |
| Rated current | 37.5 A |
| Protection class | II |
| Protection degree | IP65 |
| Max. number of DC inputs | 2 connected in parallel per Maximum Power Point |
| Max. number of DC outputs | 1 per Maximum Power Point |
| Discharge current I_n (8/20 µs) | 20 kA |
| Max discharge current (8/20 µs) | 40 kA |
| Maximum continuous operating voltage DC UCPV mode | 1,100 V |
| Protection level U_p (+/-) | ≤ 3.8 kV |
| Protection level U_p (+/PE) | ≤ 3.8 kV |
| Protection level U_p (-/PE) | ≤ 3.8 kV |
| SCIP | bdab5698-6a20-4370-8e28-8810d882d01a |
| ETIM classifications | ETIM 6.0 EC002928; ETIM 7.0 EC002928; ETIM 8.0 EC003857; ETIM 9.0 EC003857; ETIM 10.0 EC003857 |
