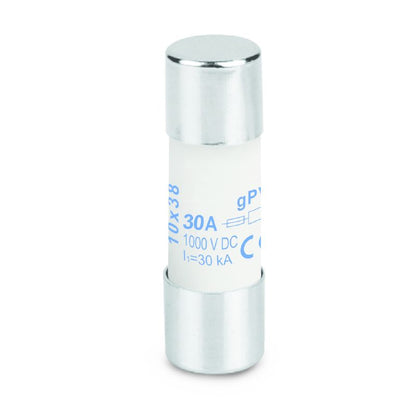

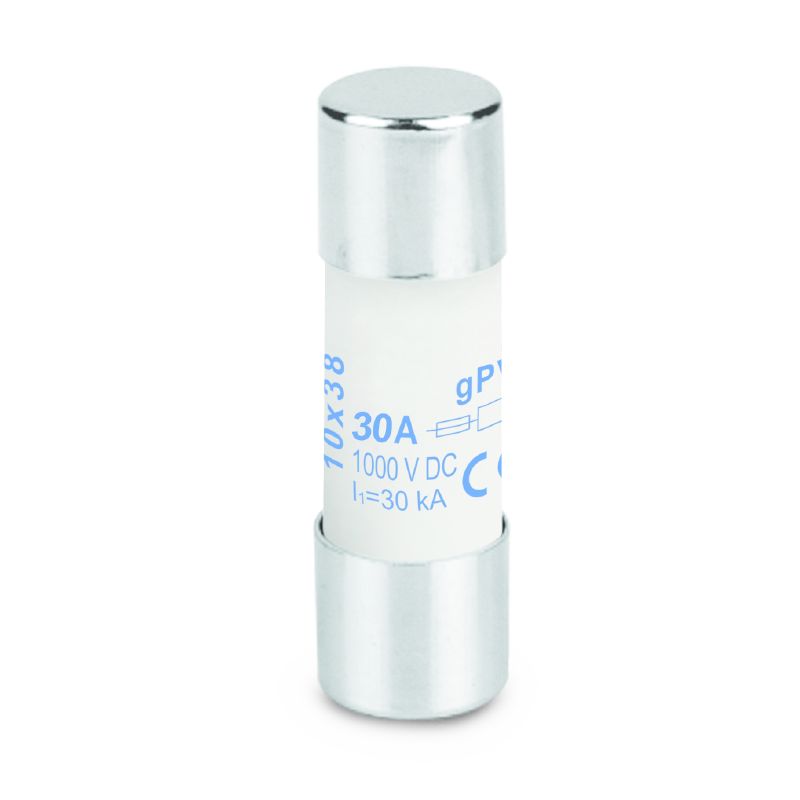

2828000000 - 10x38mm 30A Photovoltaic Fuse, 1000V DC, RoHS Compliant (Pack of 10)
2828000000 - 10x38mm 30A Photovoltaic Fuse, 1000V DC, RoHS Compliant (Pack of 10)
SKU: SKU: 2828000000 Download PDF
- 2828000000 - 10x38mm 30A Photovoltaic Fuse, 1000V DC, RoHS Compliant (Pack of 10)
- 2828000000 - 10x38mm 30A Photovoltaic Fuse, 1000V DC, RoHS Compliant (Pack of 10)
Couldn't load pickup availability
Description:
Introducing a reliable photovoltaic cartridge fuse, designed to operate at 1000 V with dimensions of 10x38 mm and a current rating of 30 A This fuse adheres to RoHS regulations and is free from any Substances of Very High Concern (SVHC) in concentrations exceeding 01 wt% Built to meet IEC 60269-1 and IEC 60269-6 standards, it is an excellent choice for a wide range of electrical systems applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Rated breaking capacity of 10 kA.
•Silver-plated contacts.
•Max power dissipation of 3.8 W.
Specifications:

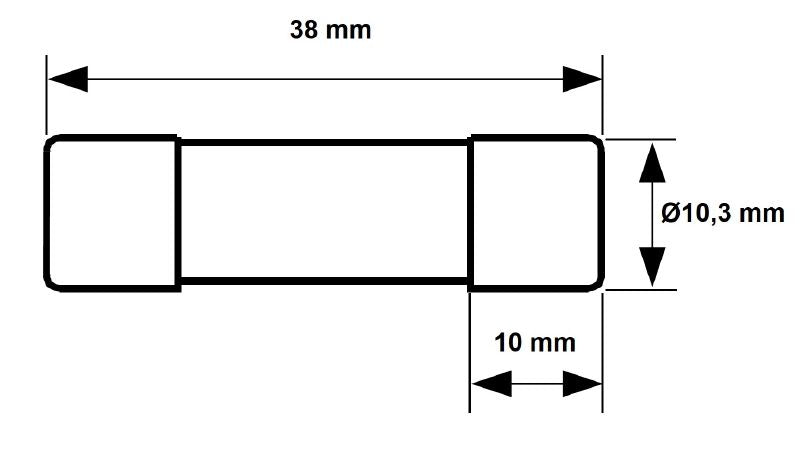

| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Storage temperature | -40°C ... 90°C |
| Operating temperature range | -40...80 ℃ |
| Current | 30 A |
| Rated DC voltage | 1,000 V |
| Fuse-link standard | IEC 60269-1, IEC 60269-6, gPV (EN 60269-6) |
