2683100000 - Photovoltaic Combiner Box with Surge Protection, 340mm Height

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

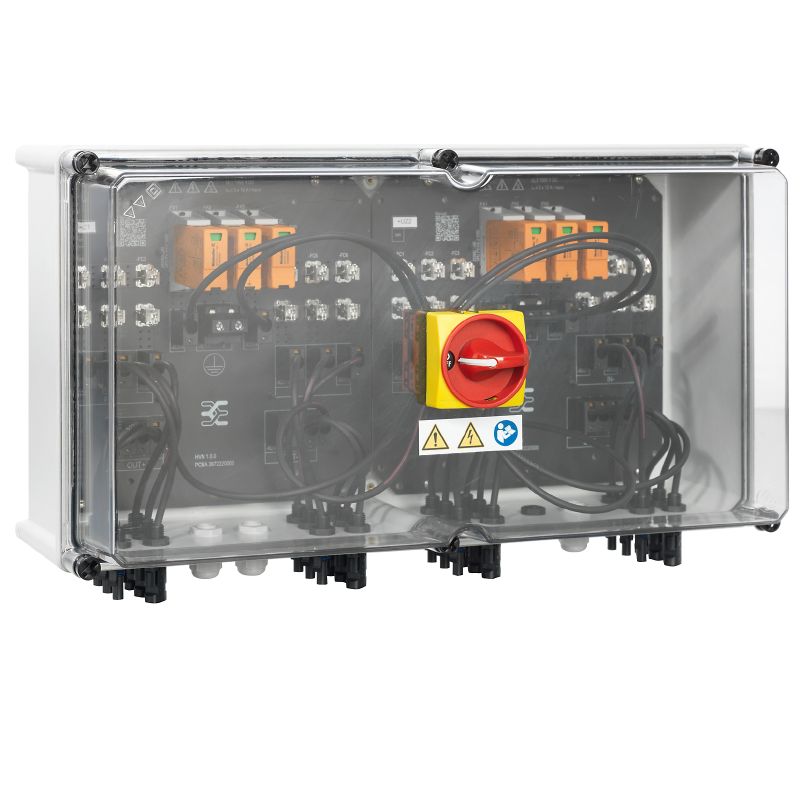

Introducing a specialized combiner box tailored for photovoltaic systems, engineered to safeguard the DC side effectively This unit features two maximum power points (MPPs), each offering three inputs and outputs, ensuring optimal power management Additionally, it is equipped with a fuse holder and both type I and II surge protection for enhanced safety Measuring 340 mm in height, 600 mm in width, and 172 mm in depth, this box weighs just 6.

981 kg, making it compact yet robust It’s designed to operate efficiently in a wide range of ambient temperatures, from -40 °C to 45 °C, and adheres to RoHS standards for environmental safety Suitable for wall mounting, this combiner box comes with various installation accessories, ensuring a seamless setup for your photovoltaic system.

Features and Benefits:

•Includes a fuse holder and surge protection types I and II.

•Suitable for protected outdoor areas (Land and Sea).

•Compliant with RoHS and REACH regulations.

•Impact resistance rated IK08 and IK10.

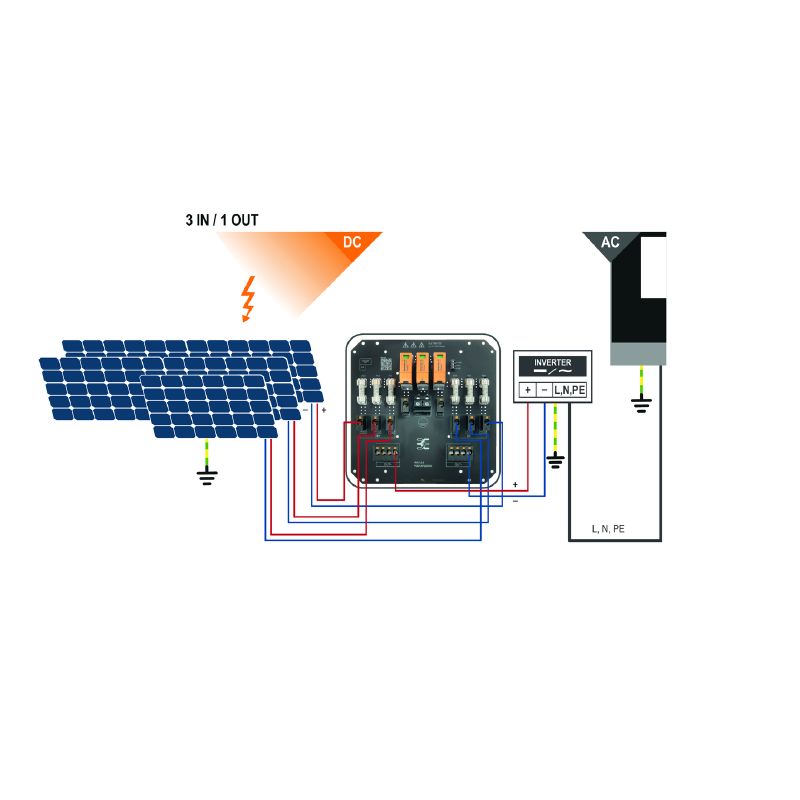

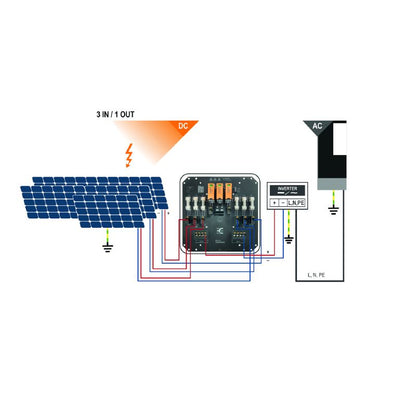

•Photovoltaic systems with DC string monitoring.

Specifications:
