2764180000 - IP67 Surge Protector for Inverters, 1500V, Compact Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable surge protection device engineered specifically for safeguarding the DC side of inverters equipped with two maximum power point trackers (MPPs) This robust unit can manage a maximum string voltage of 1500 V, ensuring your system remains protected It features two Type II inputs for effective surge protection, all housed in a durable plastic casing measuring 168 mm x 160 mm x 91 mm.

Rated IP67, this device offers excellent protection against dust and water ingress, making it suitable for various environments It operates efficiently within a temperature range of -40 °C to +85 °C and adheres to RoHS standards, with no harmful substances present in quantities exceeding 01 wt%.

Features and Benefits:

•IP67 protection degree for maximum environmental resistance.

•Compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2069.

•Designed for installation in grounded and ungrounded PV systems up to 4000 m high.

•Discharge current up to 40 kA.

•Total discharge current rating of 50 kA.

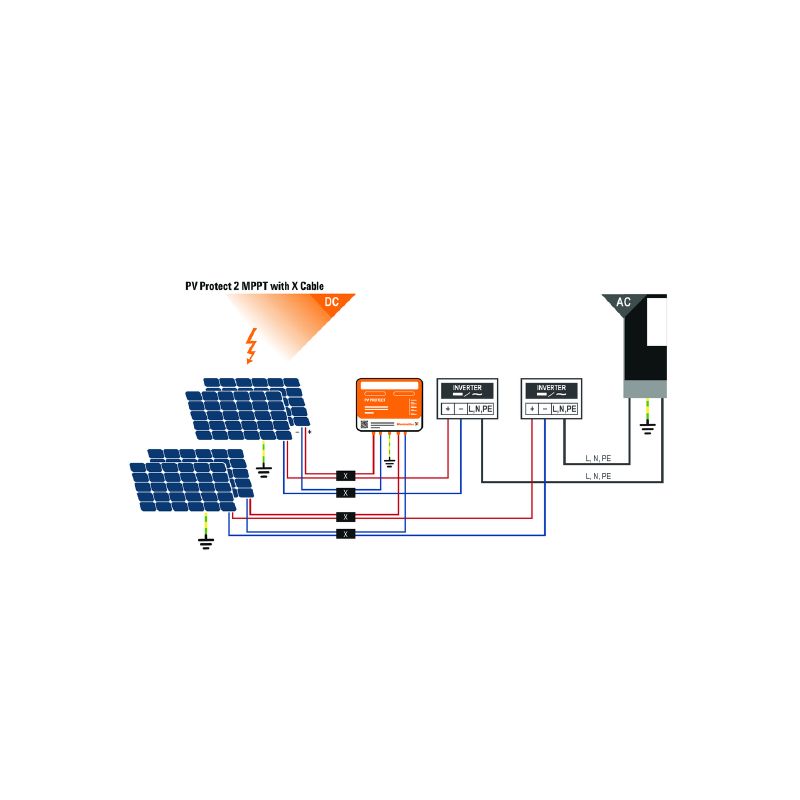

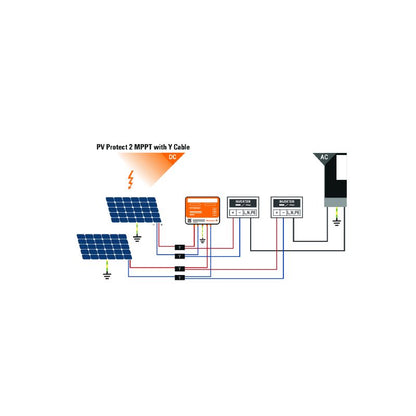

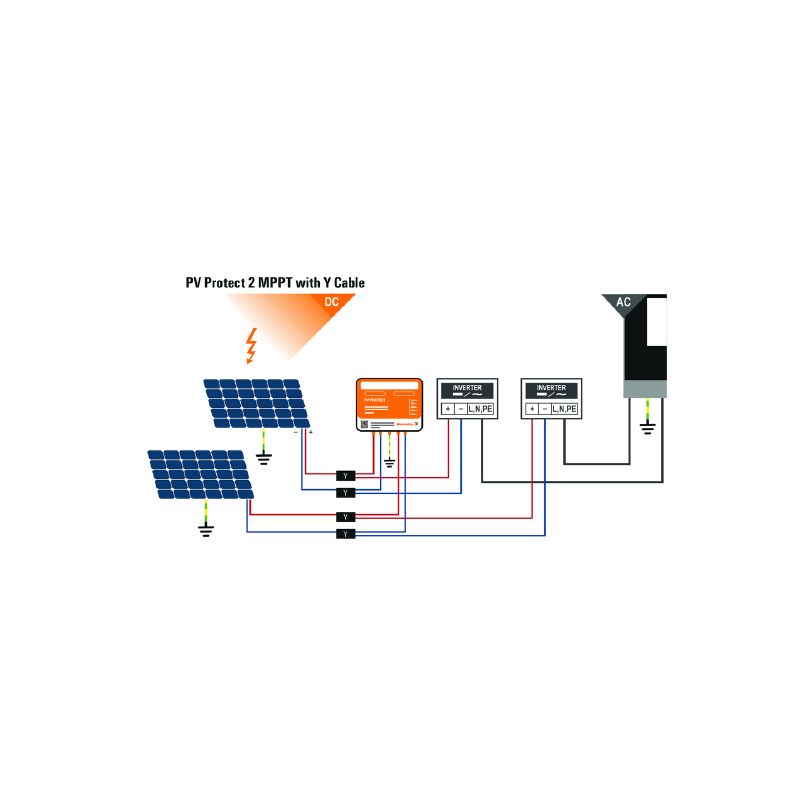

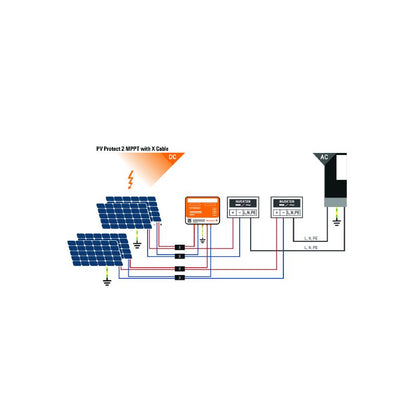

•Used to protect the DC side of inverters in photovoltaic (PV) systems.

Specifications:
