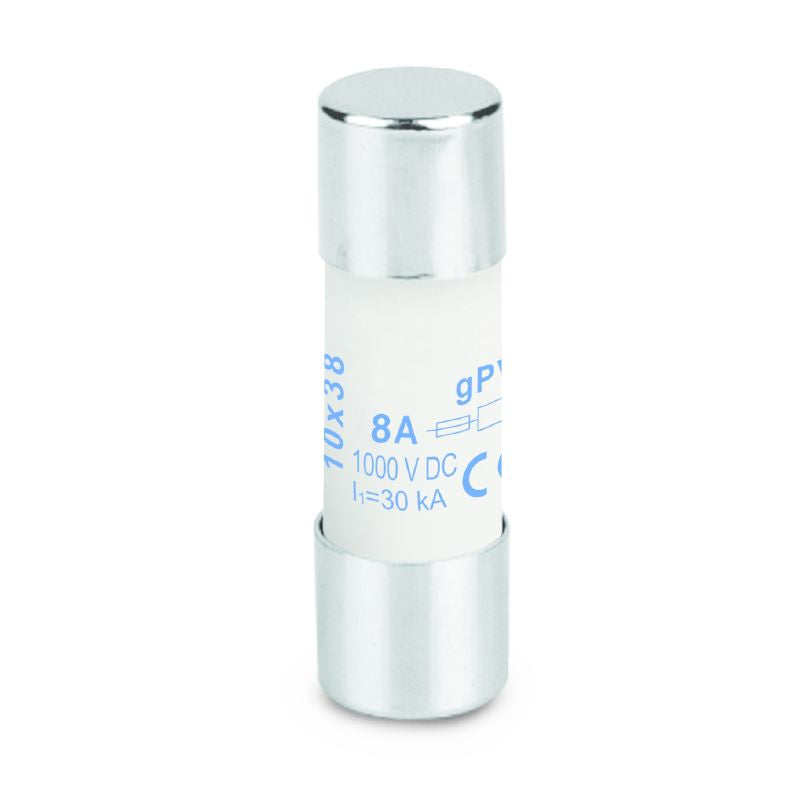

2783220000 - 10x38mm 8A Photovoltaic Fuse for 1000V Systems (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

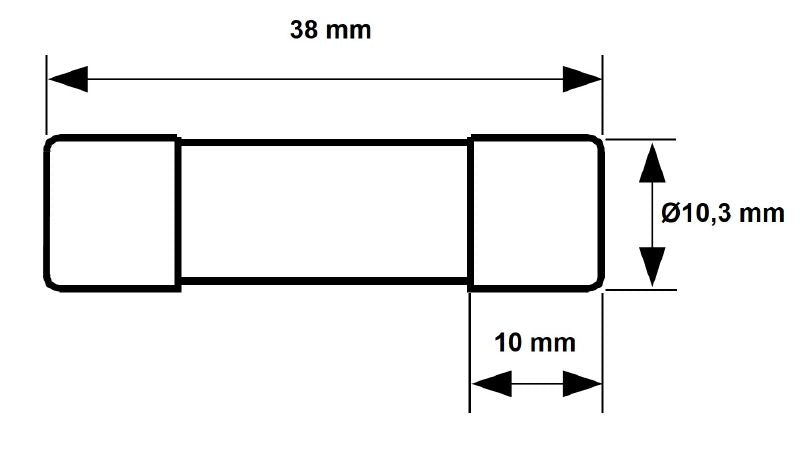

Introducing a versatile photovoltaic cartridge fuse, expertly crafted for efficiency With a voltage capacity of 1000 V and rated for 8 A, this fuse measures 10 mm in both width and depth, while standing at a height of 38 mm Meeting RoHS standards and fully compliant without any exemptions, this product is an excellent choice for a variety of applications within photovoltaic systems.

Features and Benefits:

•Compliant with IEC 60269-1 and IEC 60269-6 standards.

•Rated breaking capacity of 30 kA.

•Silver-plated contacts.

•Max power dissipation of 2 W.

•Designed for storage temperatures ranging from -40°C to 90°C.

•Operating temperature range from -40°C to 80°C.

Specifications:
