2737530000 - Outdoor Photovoltaic Combiner Box, 1000V, 6 Inputs, 330mm Height
2737530000 - Outdoor Photovoltaic Combiner Box, 1000V, 6 Inputs, 330mm Height
SKU: SKU: 2737530000 Download PDF
- 2737530000 - Outdoor Photovoltaic Combiner Box, 1000V, 6 Inputs, 330mm Height
- 2737530000 - Outdoor Photovoltaic Combiner Box, 1000V, 6 Inputs, 330mm Height
Couldn't load pickup availability
Description:

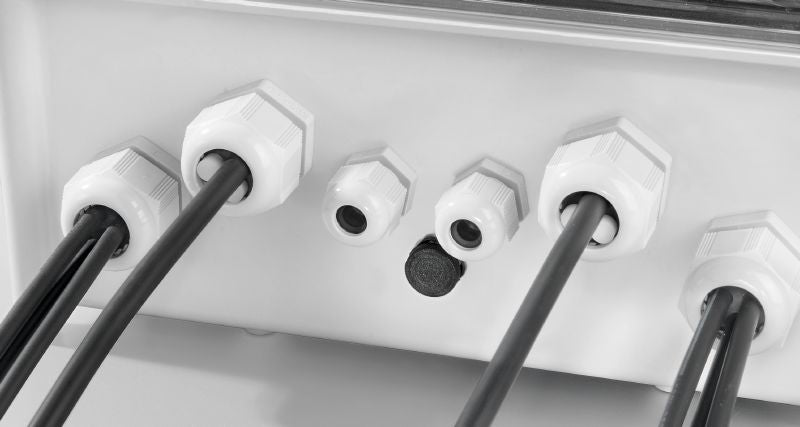

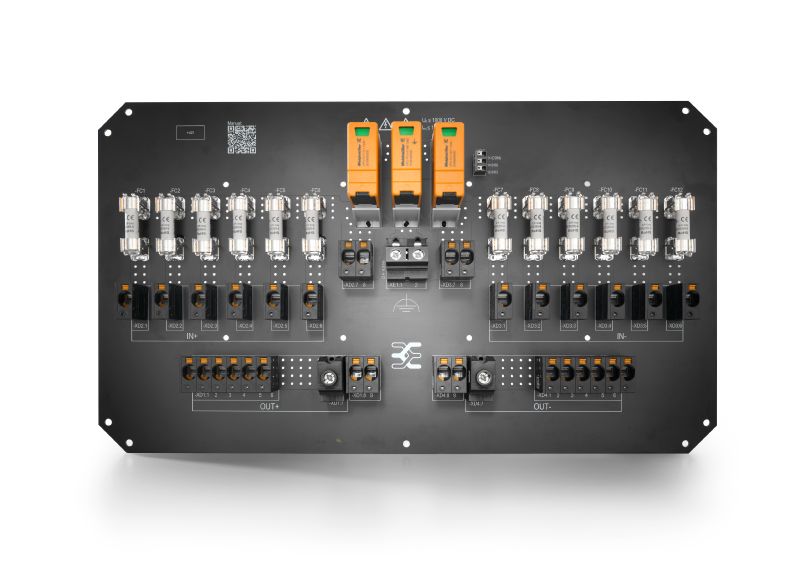

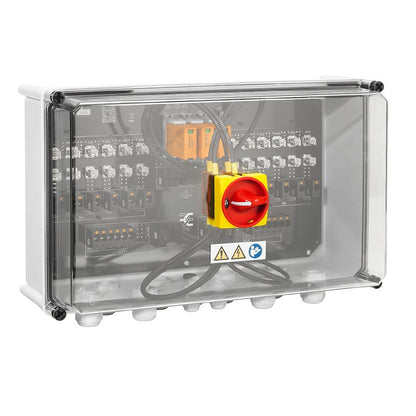

Optimize your solar power system with this photovoltaic combiner box, operating at 1000 V and featuring one Maximum Power Point (MPP) with six inputs and outputs each It includes essential components such as a fuse holder, surge protection rated at class I/II, a switch disconnector, and a cable gland for secure wiring Measuring 330 mm in height, 488 mm in width, and 249 mm in depth, this unit has a net weight of 6,453 grams, making it a robust option for outdoor installations while meeting RoHS compliance standards.
Features and Benefits:
•Compatible with both single-wire and multi-wire connections.
•Includes a sealing plug accessory.
•Designed for outdoor installations.
•Protection class rated IP65.

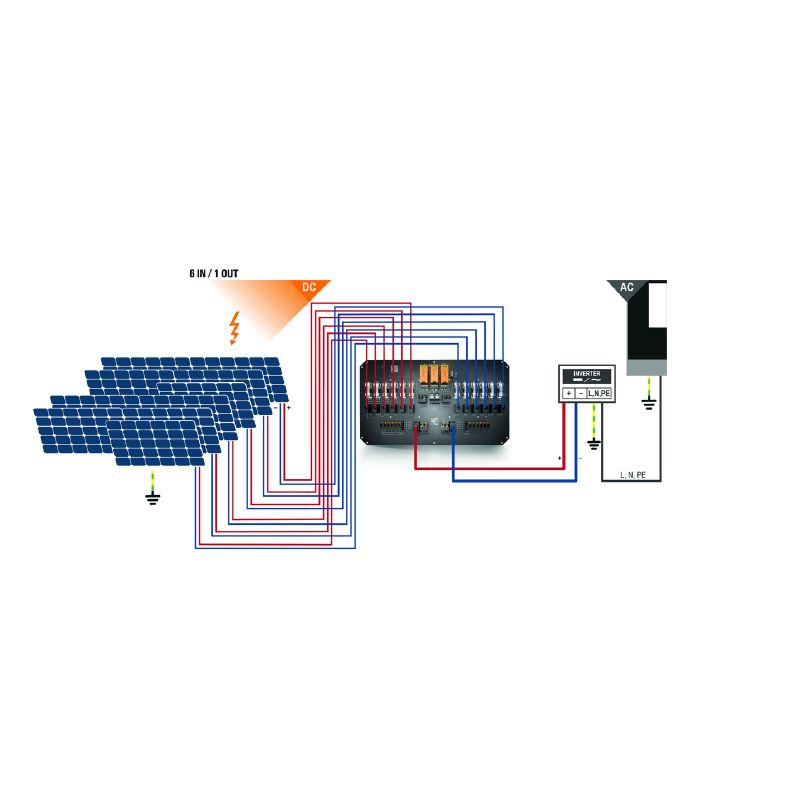

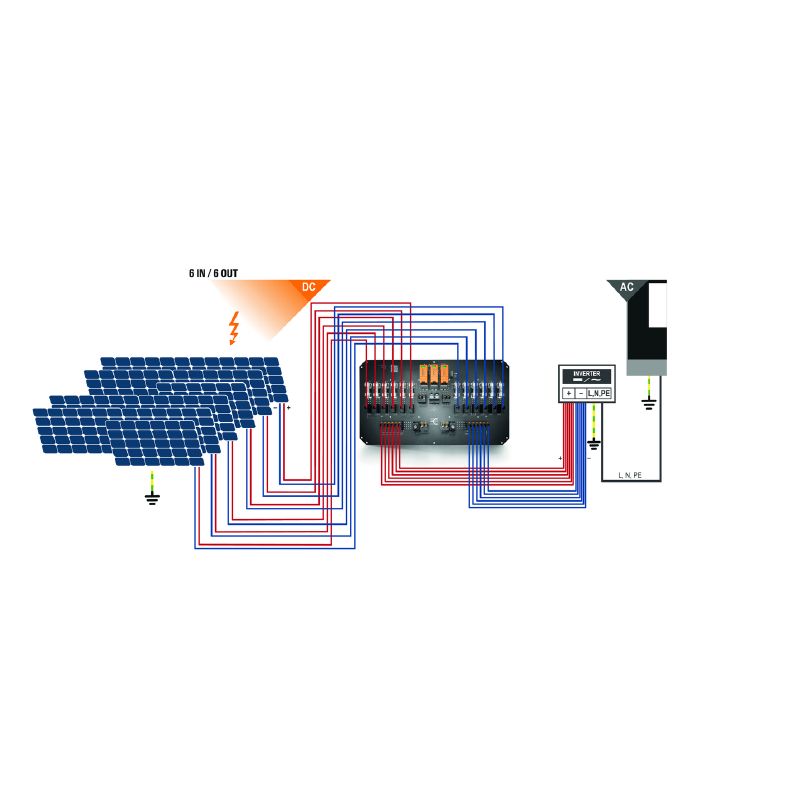

•Used in photovoltaic systems.
•Suitable for installations requiring surge protection.
Specifications:
| Depth | 249 mm |
| Height | 330 mm |
| Width | 488 mm |
| Ambient temperature | 25 °C…40 °C |
| Humidity | 5 - 90 %, no condensation |
| Rated DC voltage | 1,000 V |
| Current per Maximum Power Point, max. | 90 A |
| Impact resistance | IK08 / IK10 |
| Protection degree | IP65 |
| Max. number of DC inputs per Maximum Power Point | 6 inputs |
| Max. number of DC outputs per Maximum Power Point | 7 outputs |
| Rated impulse withstand voltage | 8 kV |
| Fuses | Not included |
| Installation location | Protected outdoor area |
