Description:

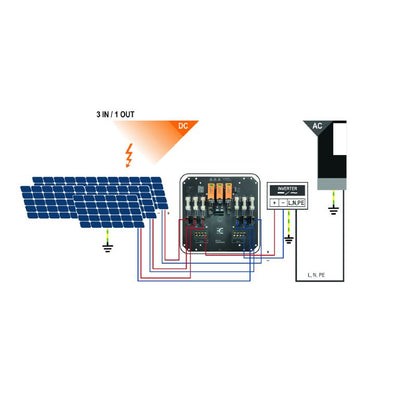

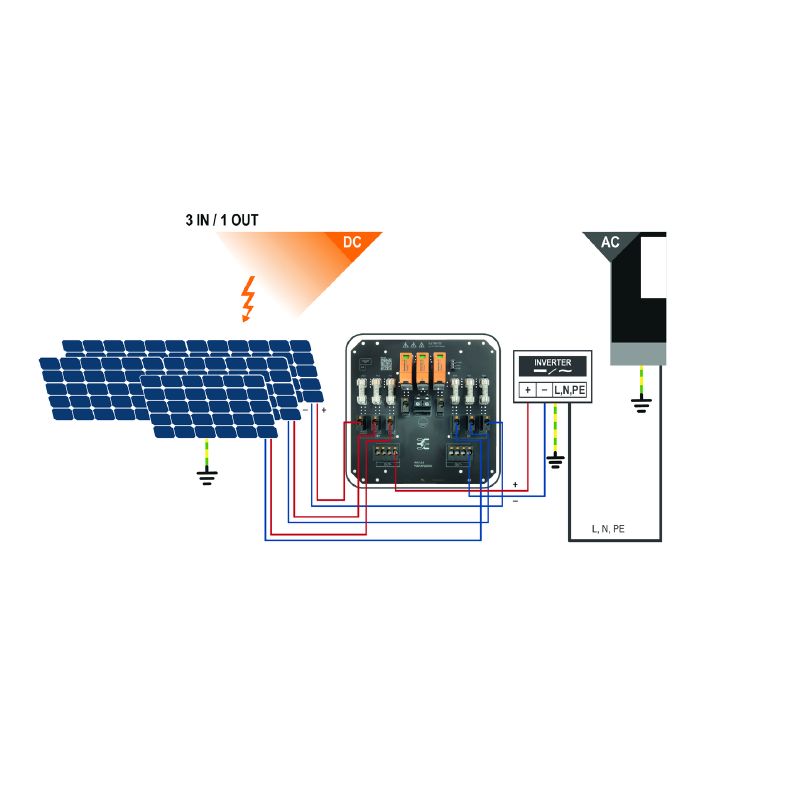

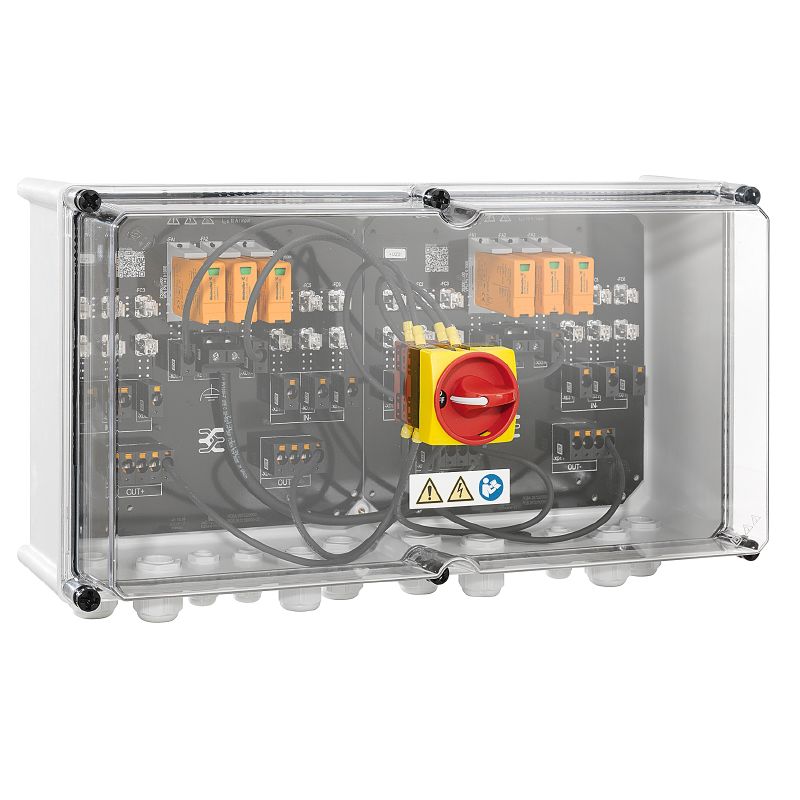

Optimize your solar energy setup with this photovoltaic combiner box, specifically designed for inverters that utilize dual maximum power point (MPP) tracking This robust unit safeguards the DC side of your solar system and meets EN 51543-32 standards It efficiently manages 2 MPPs, offering 3 inputs and outputs for each, along with essential features like a fuse holder, surge protection I/II, and a handy switch disconnector.
Its dimensions are tailored for a variety of installations, making it suitable for both terrestrial and marine applications.
Features and Benefits:
•Conforms to RoHS standards and is exempt compliant.
•Rated for environmental conditions from -40 °C to 45 °C.
•IP65 rated for protection against dust and water.
•Includes 4 mounting feet and 11 sealing plugs.

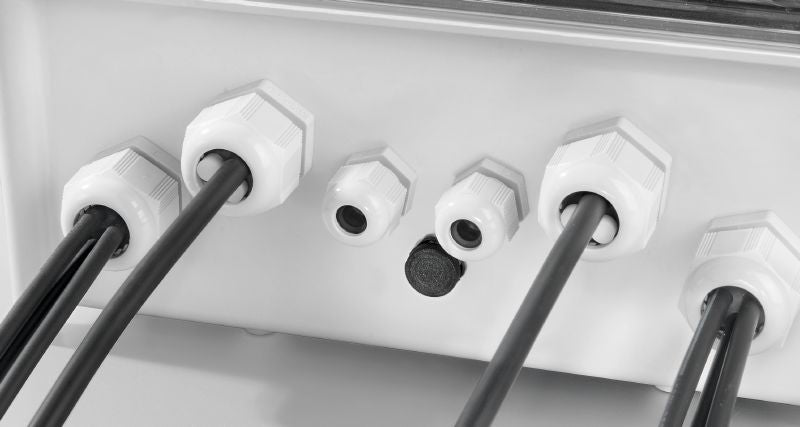

•Flexible cable entry options with M25 and M16 cable glands.
•Suitable for outdoor protected areas.
•Ideal for integrating into photovoltaic systems.
Specifications:
| Depth | 172 mm |
| Height | 335 mm |
| Width | 600 mm |
| Net weight | 6,717 g |
| Ambient temperature | -40 °C to 45 °C |
| Protection class | II |
| Protection degree | IP65 |
| Rated DC voltage | 1,000 V |
| Nominal current | 45 A |
| Discharge current I n (8/20 µs) | 20 kA |
| Total discharge current I total (8/20µs) | 50 kA |
| Maximum continuous operating voltage DC | 1,100 V |
| Compatibility range for wire cross-section | 2.5 to 16 mm² |
| Fuses | Yes |
| Number of inputs | 6 |
| Outputs | 3 outputs connected in parallel per MPP |
