Description:

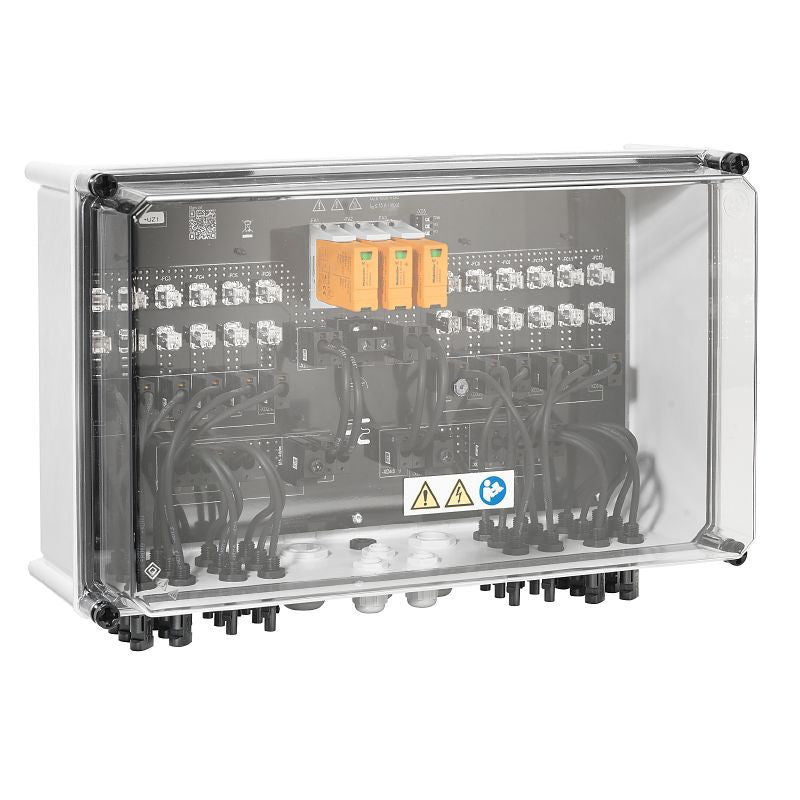

Introducing our advanced combiner box, specifically engineered for photovoltaic systems with a dedicated maximum power point (MPP) tracker This unit supports up to 6 inputs and 6 outputs for each MPP, ensuring impressive versatility It comes equipped with a fuse holder and features robust surge protection rated for Type I/II applications Fully compliant with RoHS environmental standards, this model is ideal for installation in sheltered outdoor environments.
Detailed weights and dimensions are specified for accurate fitting to your system.
Features and Benefits:
•Compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2015.
•Protection class IP65.
•Includes 8 sealing plugs as accessories.
•Impact resistance IK08 and IK10.
•Suitable for outdoor installations.
•Used in photovoltaic systems to protect DC sides.
Specifications:
| Dimensions | 334 mm height x 488 mm width x 210 mm depth |
| Operating Voltage | 1000 V |
| Max Current | 112.5 A |
| Surge Protection Class | Type I/II |
| Ambient Temperature | 25 °C – 40 °C |
| Humidity | 5 - 90 %, no condensation |
| Protection Degree | IP65 |
| Max DC Voltage | 1100 V |
| Installation Location | Protected outdoor area (Land and Sea) |
