Description:

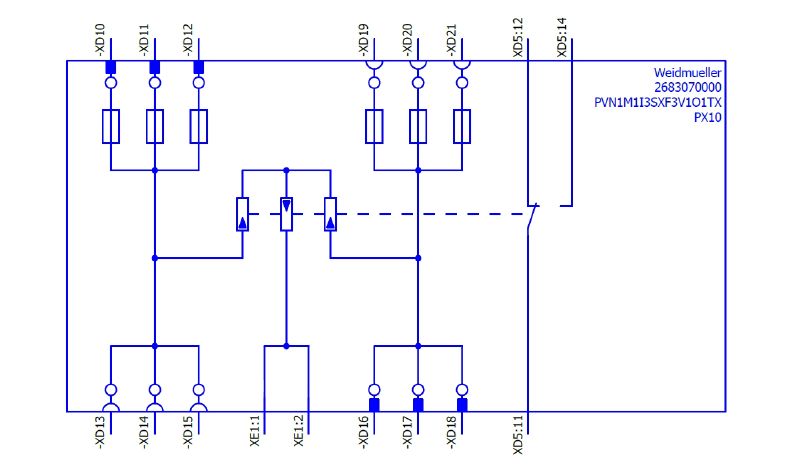

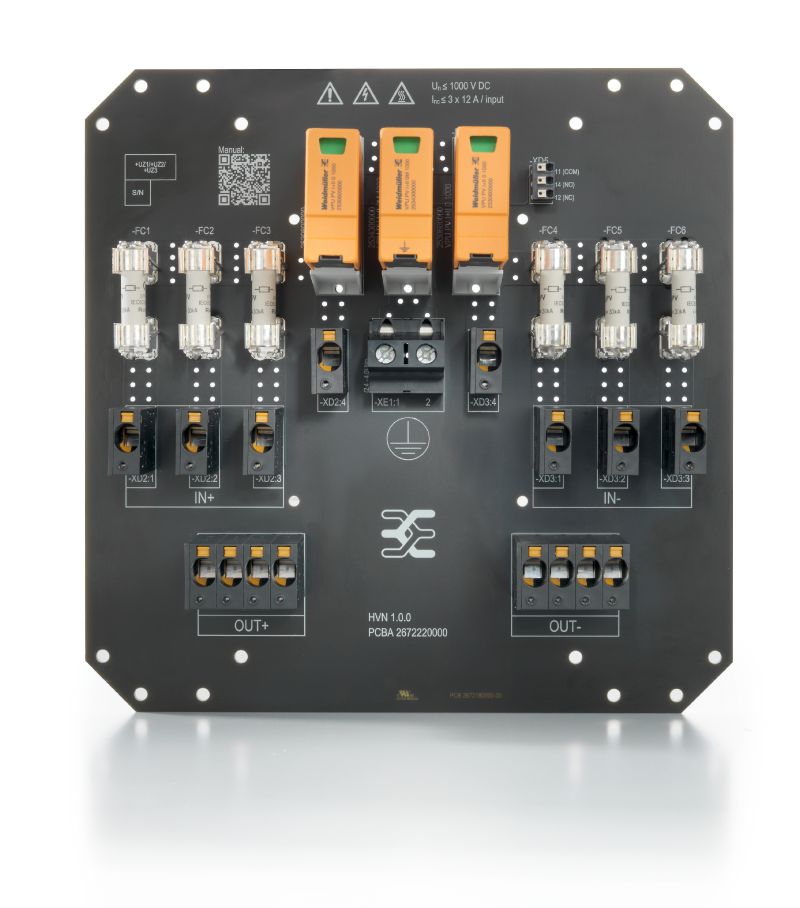

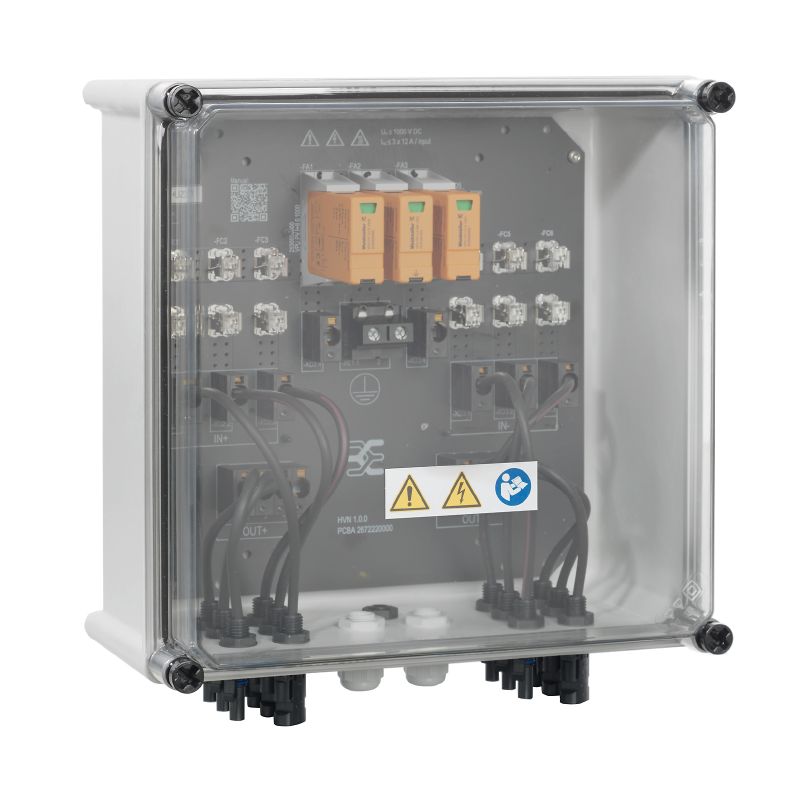

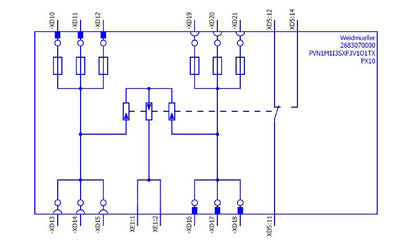

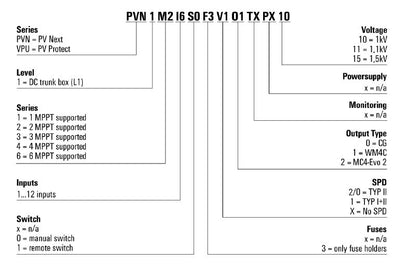

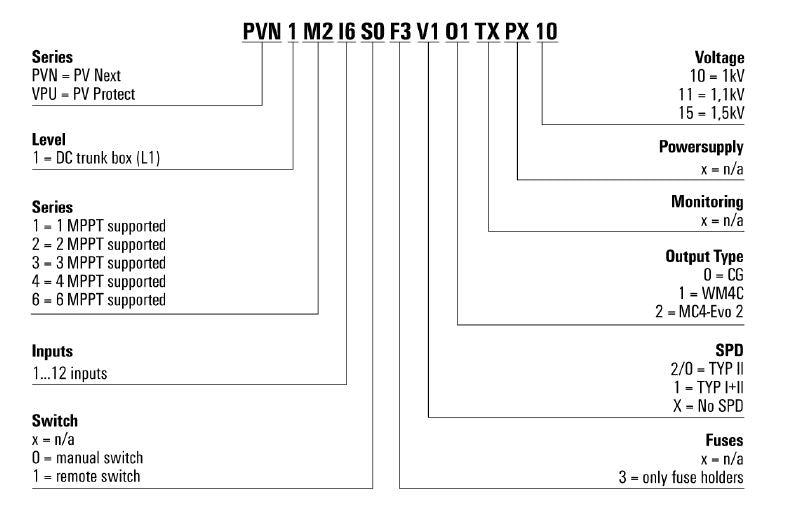

Introducing the PV Next combiner box, an essential component for photovoltaic systems This device is engineered with a single Maximum Power Point (MPP) and allows for seamless connection for three inputs and three outputs per MPP It comes equipped with a fuse holder and offers reliable surge protection categorized as I/II
With a height of 340 mm, a width of 300 mm, and a depth of 132 mm, this combiner box has a net weight of 2,990 g.
It functions efficiently in a range of ambient temperatures from -40 °C to 45 °C Additionally, the product includes mounting feet and sealing plugs for easy installation and enhanced durability.
Features and Benefits:
•Includes surge protection I/II.
•Protected outdoor installation location.
•Compatible with specific cable types.
•Non-monitored DC string.
•Includes various accessories like dust caps and mounting feet.

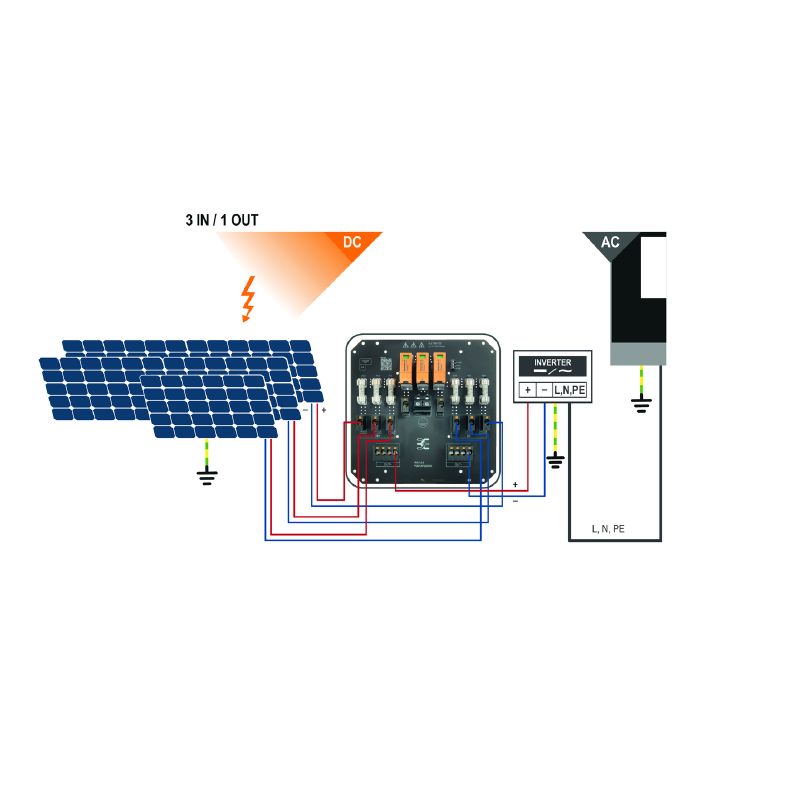

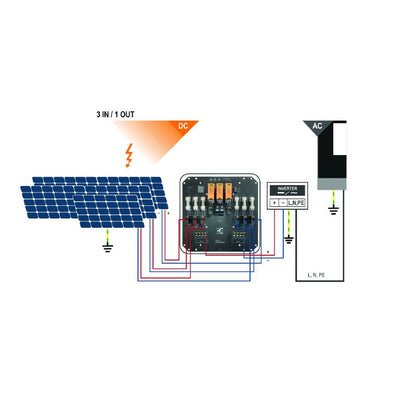

•Photovoltaic systems for solar power generation.
Specifications:
| Current per Maximum Power Point, max. | 45 A |
| Rated DC voltage | 1,000 V |
| Impact resistance | IK08 in accordance with IEC 62208, IK10 in accordance with IEC 62262 |
| Protection degree | IP65 |
| Max. number of DC inputs per Maximum Power Point | 3 inputs connected in parallel |
| Max. number of DC outputs per Maximum Power Point | 3 outputs connected in parallel |
| Short-circuit current I SCPV | 11,000 A |
| Surge protection DC side | 1000 V type I + II with remote contact |
| Total discharge current I total (8/20µs) | 50 kA |
| Total discharge current I total (10/350µs) | 12.5 kA |
| Installation location | Protected outdoor area (Land and Sea) |
| Fuse type | Empty fuse holder |
