2783280000 - 10x38mm 20A Photovoltaic Fuse, 1000V DC Compliance (Pack of 10)
2783280000 - 10x38mm 20A Photovoltaic Fuse, 1000V DC Compliance (Pack of 10)
SKU: SKU: 2783280000 Download PDF
- 2783280000 - 10x38mm 20A Photovoltaic Fuse, 1000V DC Compliance (Pack of 10)
- 2783280000 - 10x38mm 20A Photovoltaic Fuse, 1000V DC Compliance (Pack of 10)
Couldn't load pickup availability
Description:

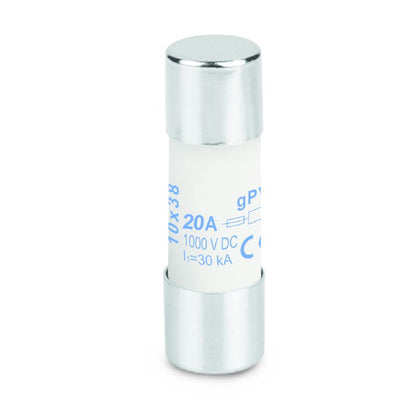

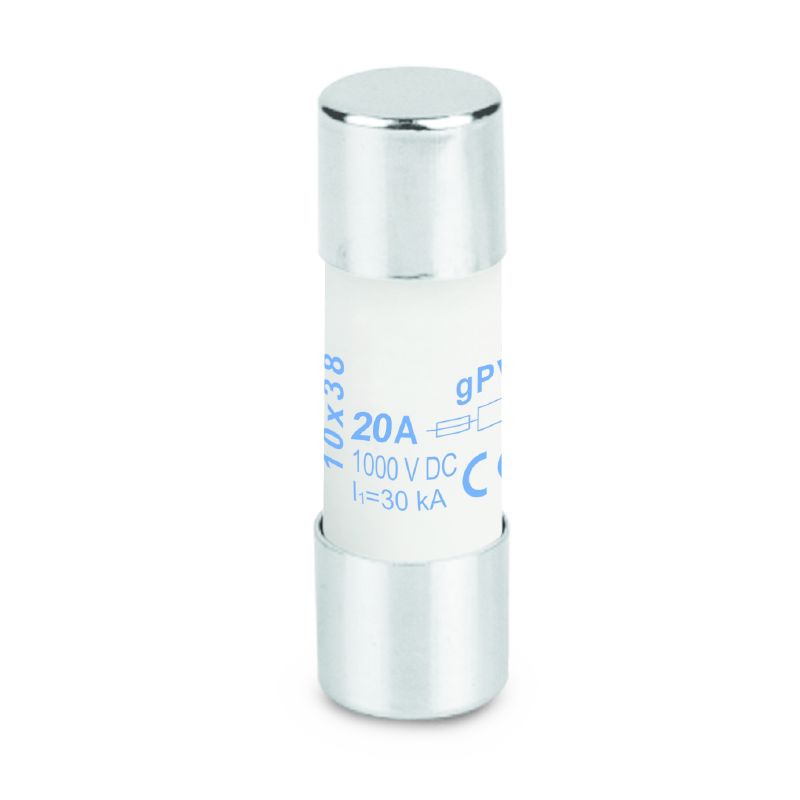

Introducing the FUSE 10X38 cartridge fuse, engineered specifically for photovoltaic systems This fuse operates with a rated current of 20 A, handling a maximum DC voltage of 1000 V with ease Its compact dimensions are 10 mm in width, depth, and 38 mm in height, making it a versatile choice for various applications Built to meet IEC standards and RoHS compliant, this fuse boasts a breaking capacity of 30 kA and a maximum power dissipation of 3.
2 W, ensuring reliable performance and safety in your solar energy setups.
Features and Benefits:
•RoHS compliant without exemption.
•Fuse-link standard adheres to IEC 60269-1 and IEC 60269-6.
•Rated breaking capacity of 30 kA.
•Photovoltaic systems.
Specifications:

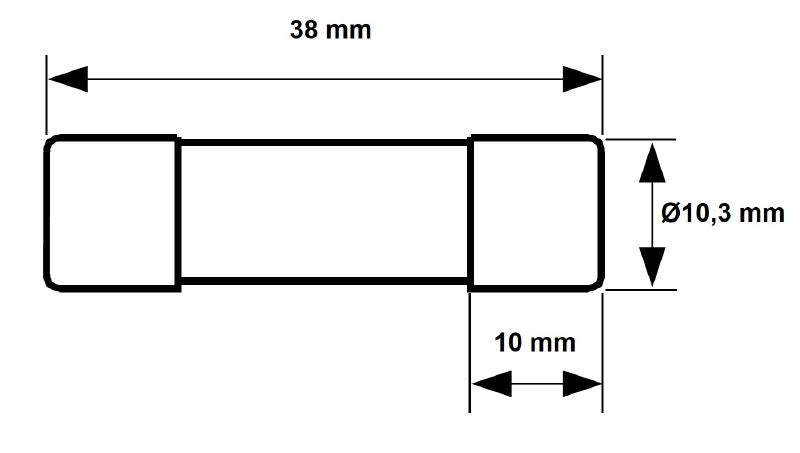

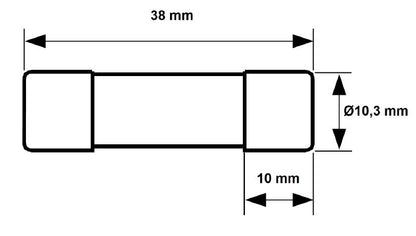

| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Storage temperature | -40°C to 90°C |
| Operating temperature range | -40 to 80 °C |
| Current | 20 A |
| Rated DC voltage | 1,000 V |
| Power dissapation, max. | 3.2 W |
