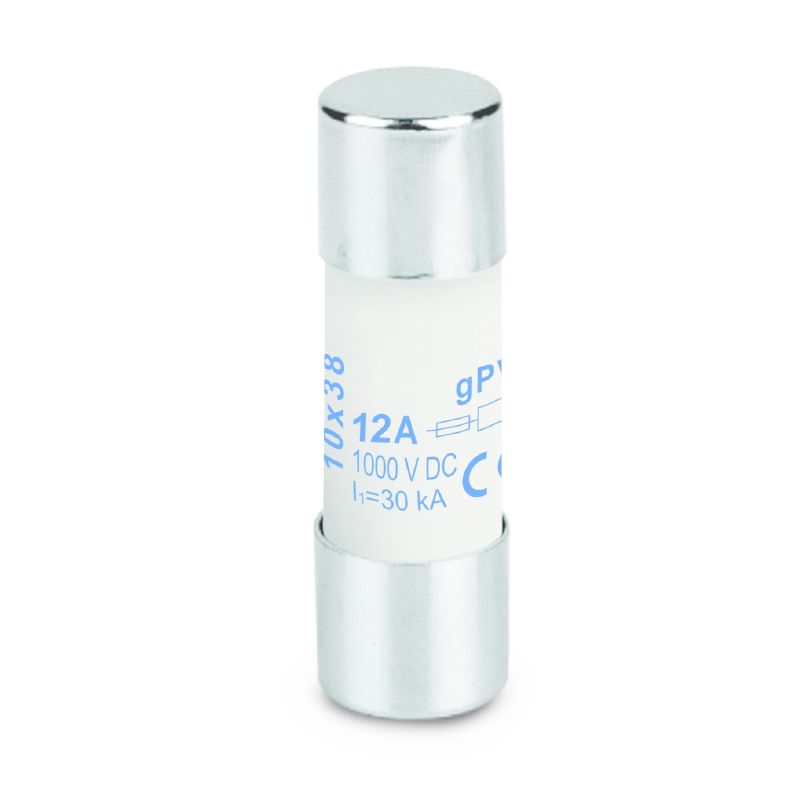

2783240000 - 10x38mm 12A Photovoltaic Cartridge Fuse, 1000 V (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

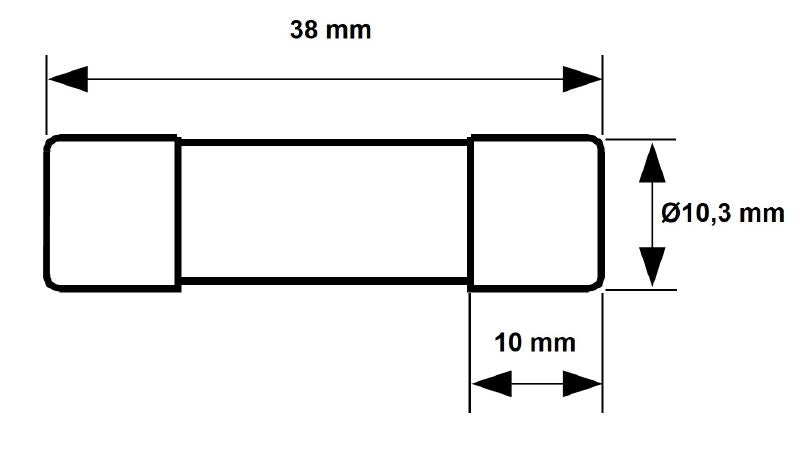

Introducing a specialized cartridge fuse expertly crafted for photovoltaic systems, rated at 1000 V and 12 A Meeting the rigorous standards of IEC 60269-1 and IEC 60269-6, this fuse is designed for optimal performance With compact dimensions of 10mm in both width and depth, and a height of 38mm, it easily fits into your applications Additionally, it is compliant with RoHS regulations and contains no Substances of Very High Concern (SVHC) above 0.

1 wt%, ensuring safety and sustainability in its use.

Features and Benefits:

•Compliant with RoHS without exemption.

•Silver-plated contacts.

•Rated breaking capacity of 30 kA.

•Maximum power dissipation of 2.4 W.

•Designed for use in photovoltaic systems.

Specifications:
