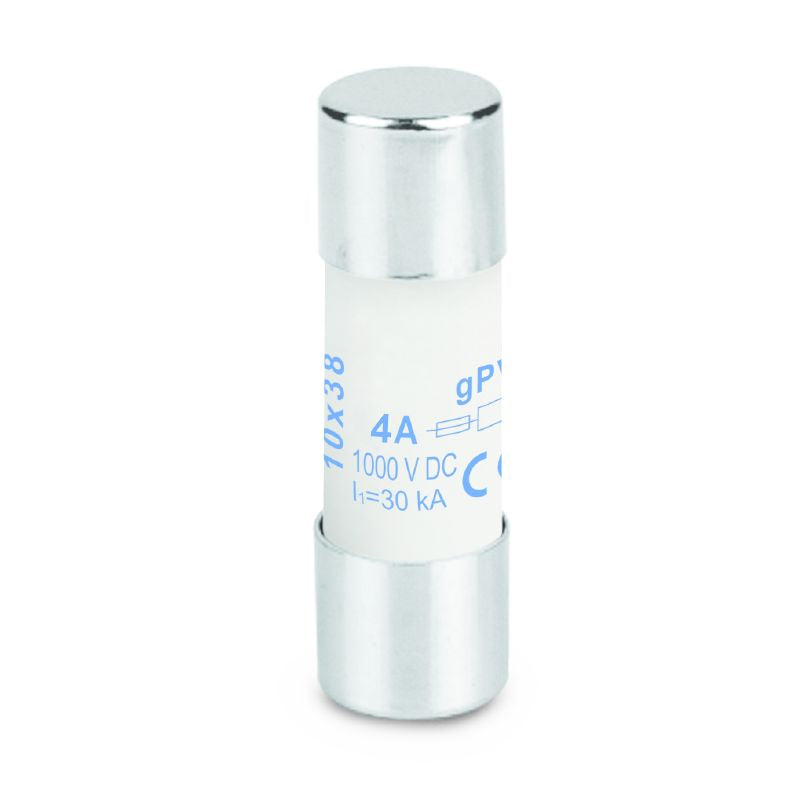

2783190000 - 10mm gPV Cartridge Fuse, 4A 1000VDC, 30kA Capacity (Pack of 10)
2783190000 - 10mm gPV Cartridge Fuse, 4A 1000VDC, 30kA Capacity (Pack of 10)
SKU: SKU: 2783190000 Download PDF
- 2783190000 - 10mm gPV Cartridge Fuse, 4A 1000VDC, 30kA Capacity (Pack of 10)
- 2783190000 - 10mm gPV Cartridge Fuse, 4A 1000VDC, 30kA Capacity (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the gPV cartridge fuse, engineered specifically for photovoltaic systems This robust component supports a current rating of 4 A and can handle direct current voltages up to 1000 V With compact dimensions of 10 mm in depth, 38 mm in height, and 10 mm in width, it also features a diameter of 103 mm Crafted with silver-plated contacts, this fuse boasts an impressive breaking capacity of 30 kA and a maximum power dissipation of 1.
57 W Perfect for your solar energy applications, it combines efficiency with reliability.
Features and Benefits:
•Compliant with RoHS without exemption.
•No SVHC above 0.1 wt%.
•Designed to withstand temperatures from -40°C to 90°C for storage and -40°C to 80°C during operation.
•Constructed according to IEC 60269 standards.
•Photovoltaics.
•General use in circuits requiring cartridge fuses.
Specifications:

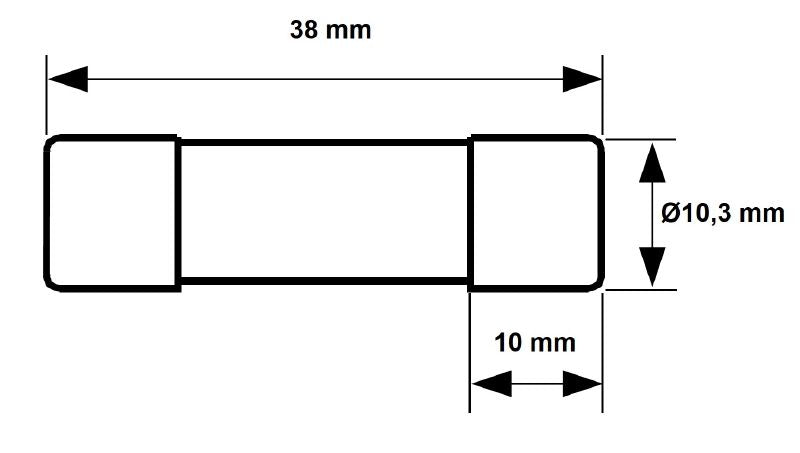

| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Net Weight | 6.864 g |
| Storage Temperature | -40°C to 90°C |
| Operating Temperature Range | -40°C to 80°C |
| Fuse-Link Standard | IEC 60269-1, IEC 60269-6, gPV (EN 60269-6) |
| Current | 4 A |
| Rated DC Voltage | 1,000 V |
| Rated Breaking Capacity | 30 kA |
| Material of Contacts | silver-plated |
| Power Dissipation, Max | 1.57 W |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ETIM 10.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ECLASS 14.0 | 27-14-20-02 |
| ECLASS 15.0 | 27-14-20-02 |
