Description:

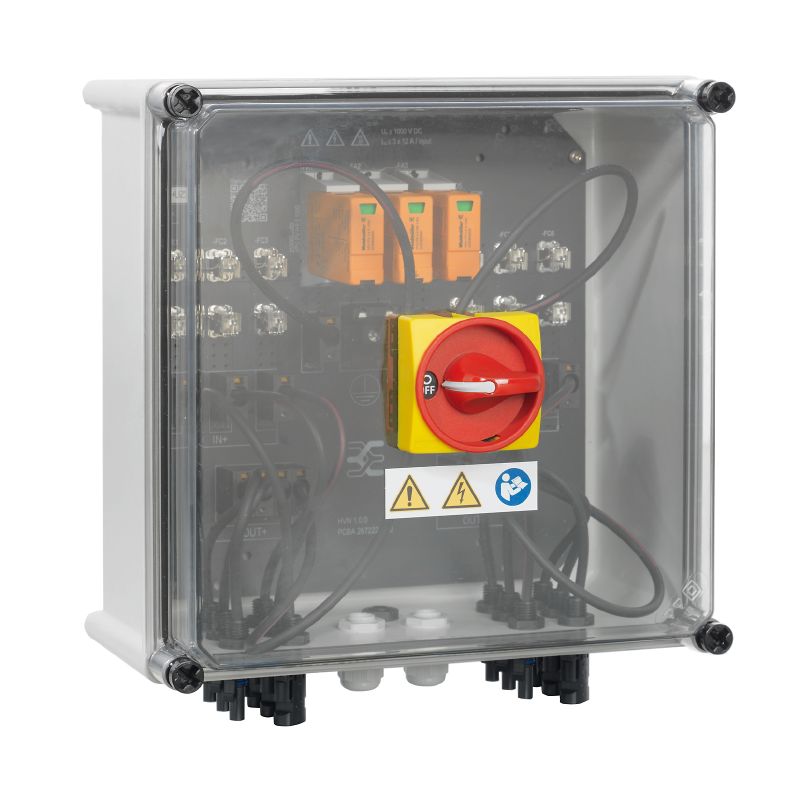

Introducing our Photovoltaic Combiner Box, engineered specifically for inverters featuring a single Maximum Power Point (MPP) tracker This essential component ensures the safety of the DC side of your photovoltaic system, fully compliant with EN 51543-32 standards It accommodates 3 inputs and 3 outputs per MPP using WM4C connectors, tailored for specific cable types With a maximum string voltage capacity of 1000V, this unit is built for reliable performance.

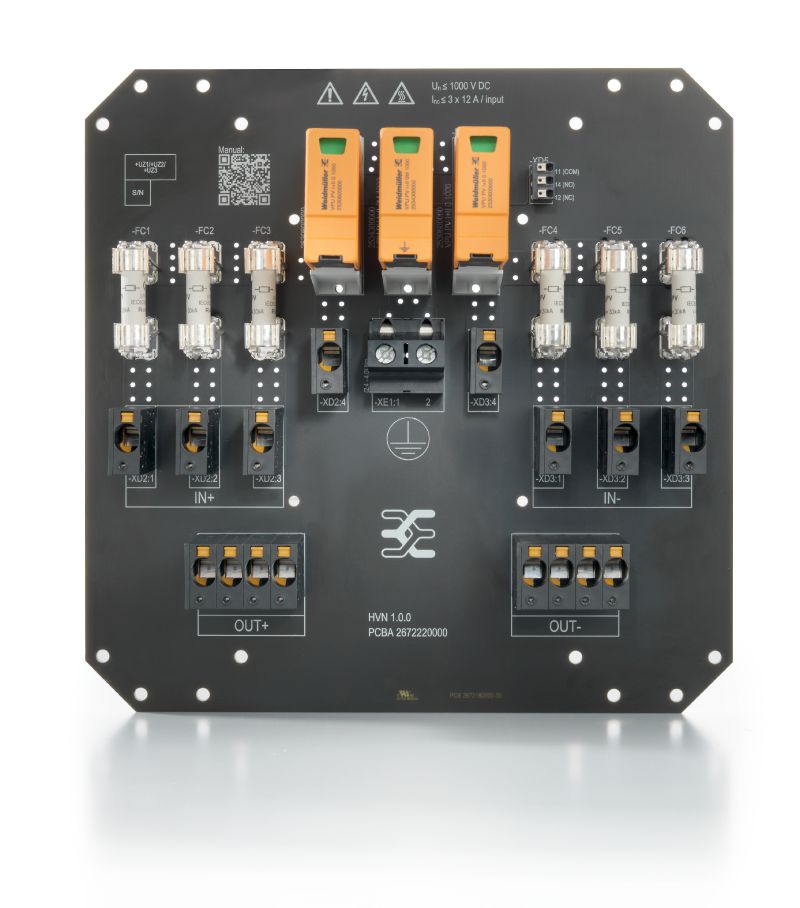

Safety is prioritized with integrated features such as combined surge protection devices and fuse holders (fuses sold separately) Housed in a sturdy casing with an IP65 protection rating, this combiner box is ready to withstand various environmental conditions Perfect for enhancing the efficiency and safety of your solar energy system.
Features and Benefits:
•Includes a load break switch for secure disconnection of string lines.
•Constructed from glass-fiber reinforced polyester housing for enhanced durability.
•Compliant with RoHS standards.
•Designed for outdoor installation in protected areas.

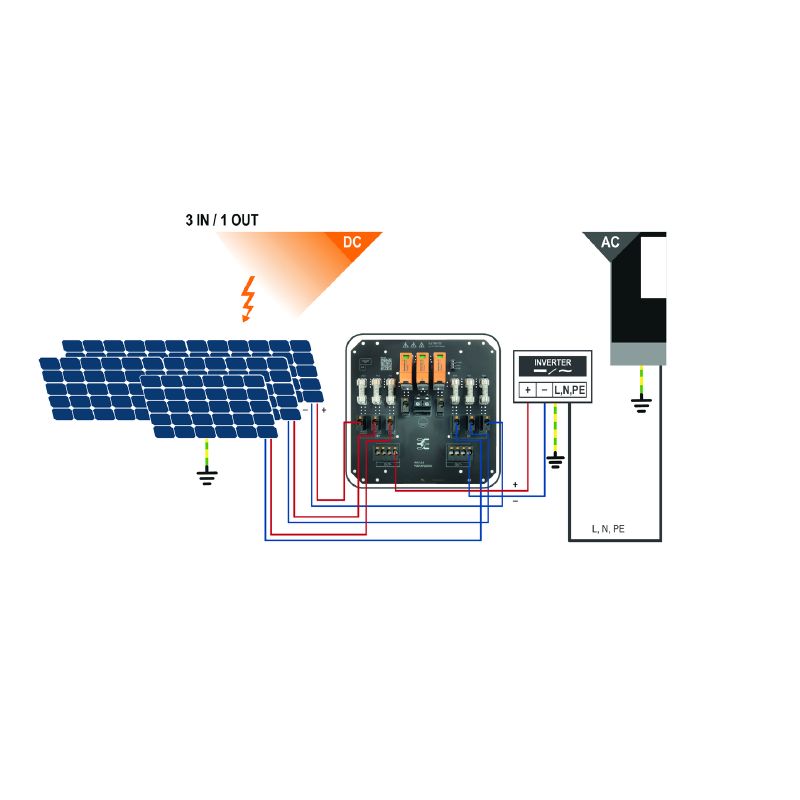

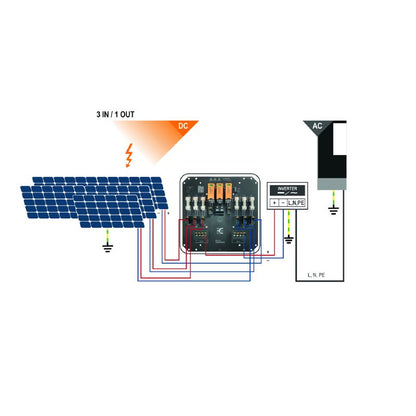

•Protecting the DC side of photovoltaic systems.
•Connecting multiple DC inputs and outputs efficiently.
Specifications:
| Depth | 172 mm |
| Height | 340 mm |
| Width | 300 mm |
| Ambient temperature | -40 °C…45 °C |
| Protection degree | IP65 |
| Current per Maximum Power Point, max. | 45 A |
| Rated DC voltage | 1,000 V |
| Number of inputs | 3 |
| Number of outputs | 3 |
| Max. number of DC inputs per MPP | 3 |
| Max. number of DC outputs per MPP | 3 |
| Protection class | II |
| Weight | 3,244 g |
| DC load break switch | No |
| Dominant Materials | Polyester glass-fibre reinforced, Polycarbonate |
