Description:

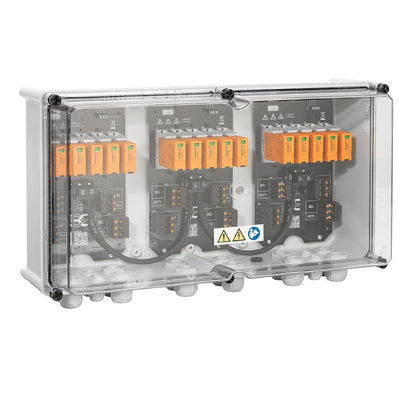

Introducing a cutting-edge photovoltaic combiner box, expertly crafted to oversee and safeguard the DC side of your solar energy system This advanced device boasts 6 Maximum Power Points (MPPs), with dual inputs and a single output for each MPP, ensuring optimal energy management Additionally, it includes surge protection levels I and II, guaranteeing safety and compliance with environmental standards.
Enhance your solar power efficiency with this reliable and protective solution.
Features and Benefits:
•Includes surge protection I / II.
•Compliant with RoHS and REACH.
•Designed for wall mounting and outdoor installation.
•Impact-resistant construction with IK08 and IK10 ratings.
•IP65 protection degree for outdoor applications.

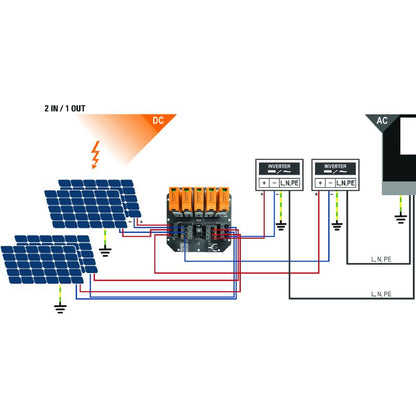

•Used in photovoltaic systems for managing DC connections.
•Suitable for protected outdoor areas including land and sea.
Specifications:
| Depth | 175 mm |
| Height | 330 mm |
| Width | 558 mm |
| Net weight | 6,943 g |
| Rated DC voltage | 1,000 V |
| Max. number of DC inputs per Maximum Power Point | 2 inputs connected in parallel |
| Max. number of DC outputs per Maximum Power Point | 1 output |
| Surge protection DC side, Discharge current I n (8/20 µs) | 20 kA |
| Protection class | II |
| Ambient temperature | -40 °C…50 °C |
| Humidity | 5 - 90 %, no condensation |
| IP rating | IP65 |
| Installation location | Protected outdoor area |
