Description:

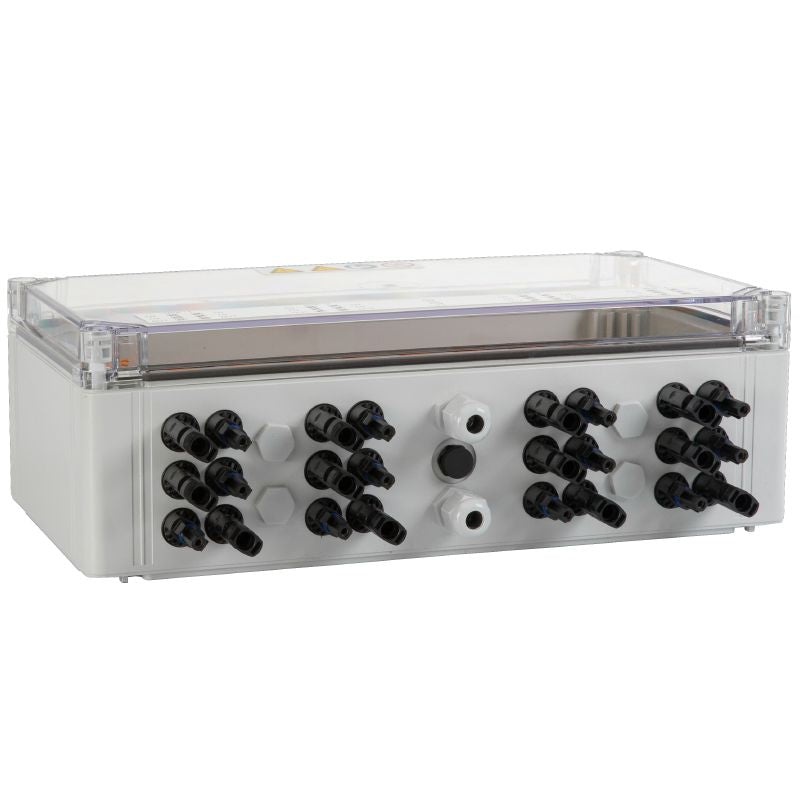

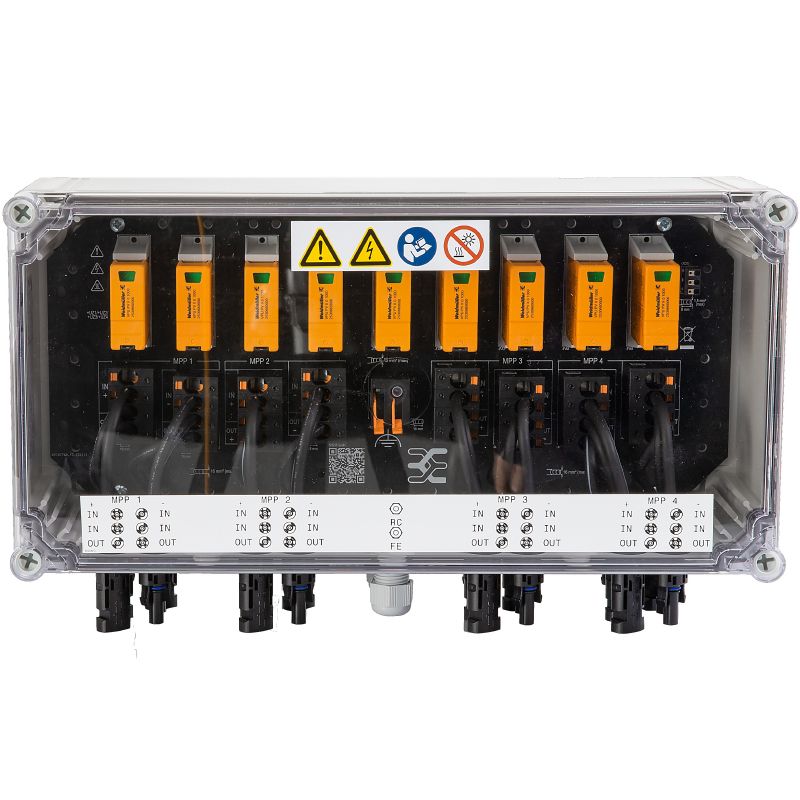

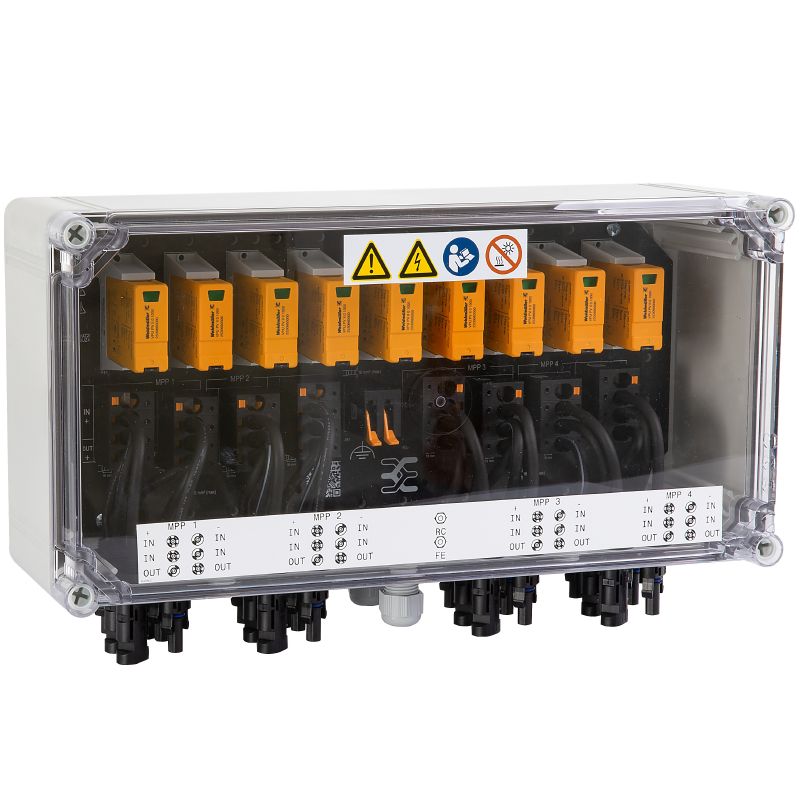

Introducing a robust photovoltaic combiner box optimized for efficiency with 4 maximum power points (MPPs) This unit includes 2 inputs and 1 output for each MPP, accommodating a DC voltage of up to 1100 V Enhanced with surge protection levels I and II, this model (PVN DC 2I 1O 4MPP SPD1R WM4 11) guarantees reliable performance for your solar energy systems Perfect for maximizing energy output while ensuring safety and durability.
Features and Benefits:
•RoHS compliant and adheres to environmental product standards.
•Designed for protected outdoor areas.
•IP65 protection degree suitable for harsh environmental conditions.

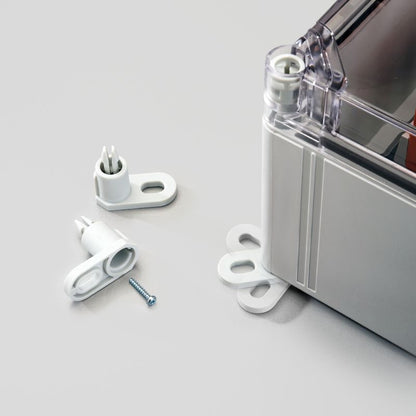

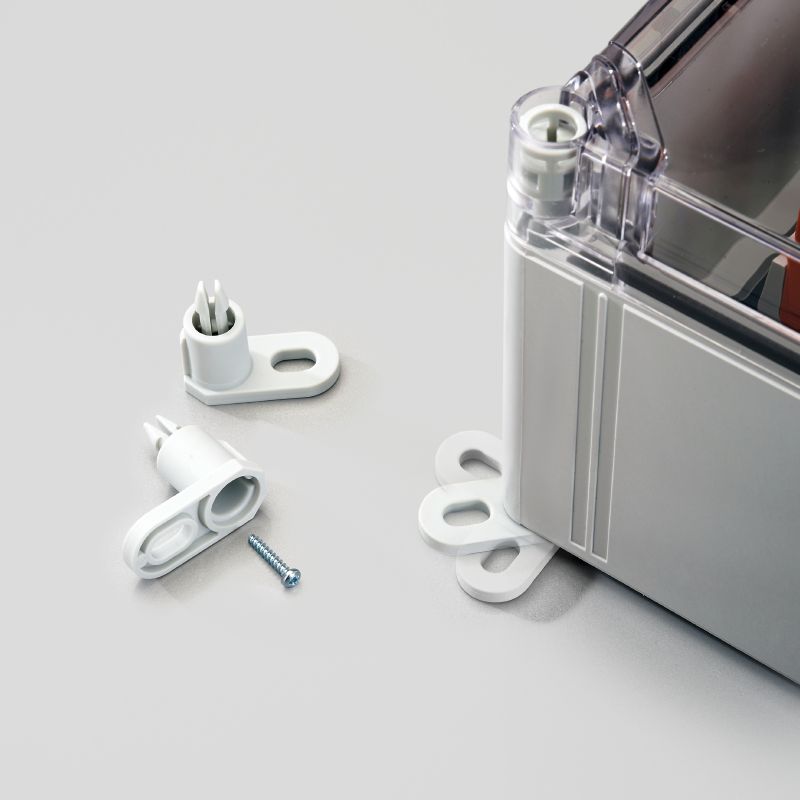

•Includes mounting feet for secure installation.

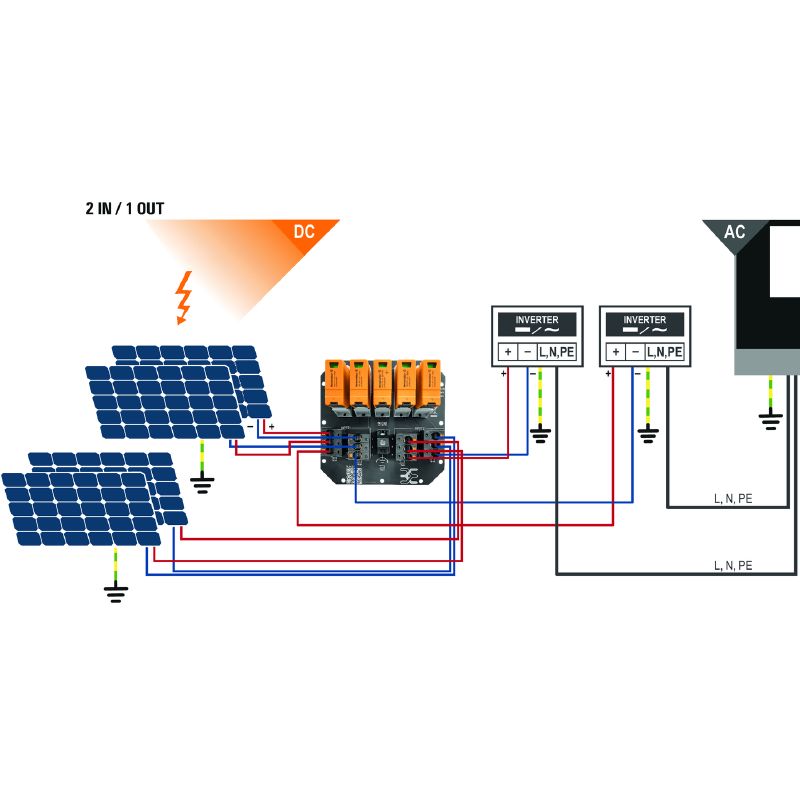

•Used in photovoltaic systems to protect the DC side.
Specifications:

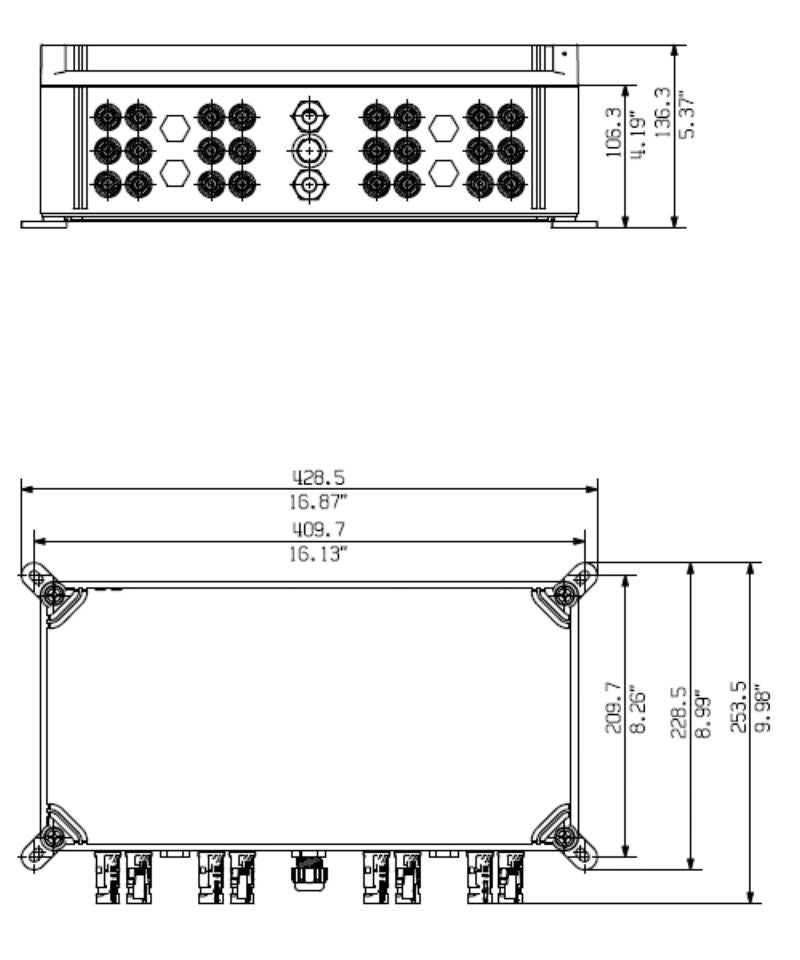

| Depth | 132 mm |
| Height | 240 mm |
| Width | 400 mm |
| Operating temperature range | -40 °C to 50 °C |
| Humidity range | 5 - 90 %, no condensation |
| Current per Maximum Power Point, max | 35 A |
| Rated DC voltage | 1,100 V |
| Protection class | II |
| Protection level U | ≤ 3.8 kV |
| Max. number of DC inputs per MPP | 2 inputs connected in parallel |
| Max. number of DC outputs per MPP | 1 output |
| Surge protection DC side discharge current I_n (8/20 µs) | 20 kA |
| Total discharge current I_total (8/20 µs) | 50 kA |
| Max. string voltage U_oc | 1000V |
| IP rating | IP65 |
| Enclosure material | Glass-fibre reinforced polyester |
