2764110000 - 1000V Over-Voltage Protection Device for Inverters
2764110000 - 1000V Over-Voltage Protection Device for Inverters
SKU: SKU: 2764110000 Download PDF
- 2764110000 - 1000V Over-Voltage Protection Device for Inverters
- 2764110000 - 1000V Over-Voltage Protection Device for Inverters
Couldn't load pickup availability
Description:

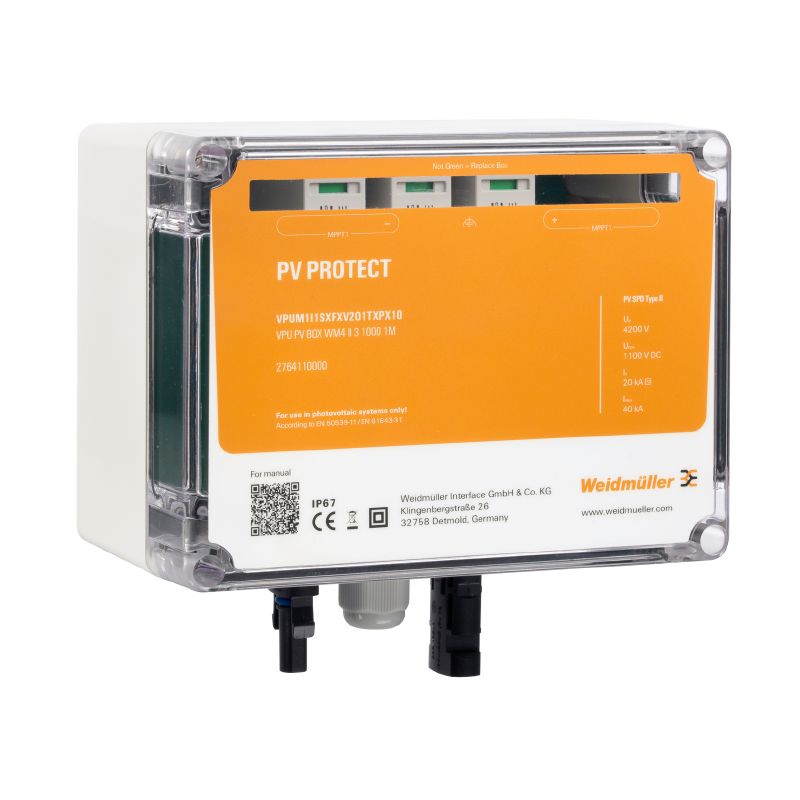

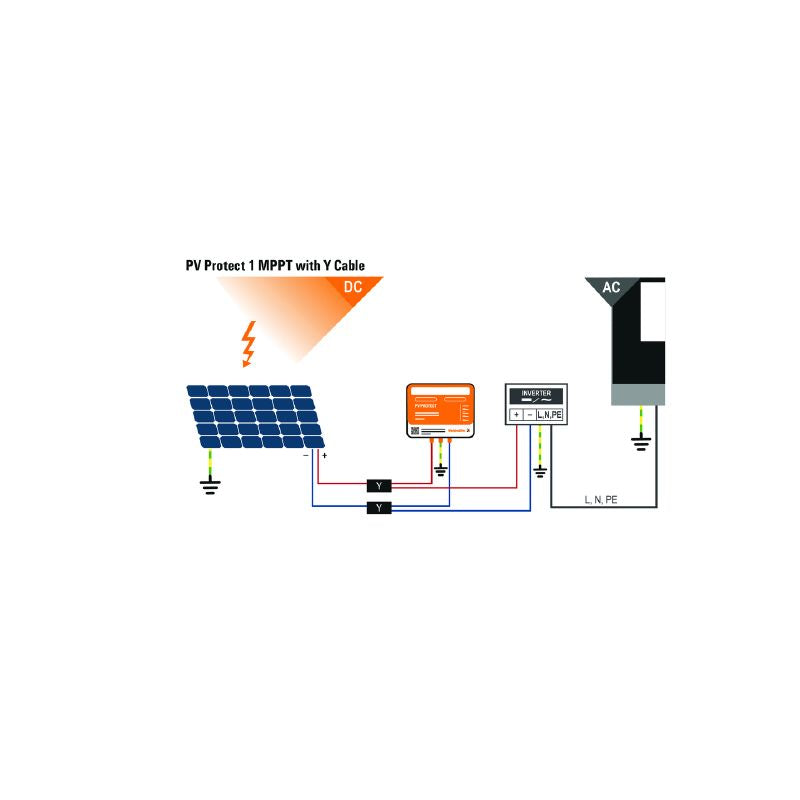

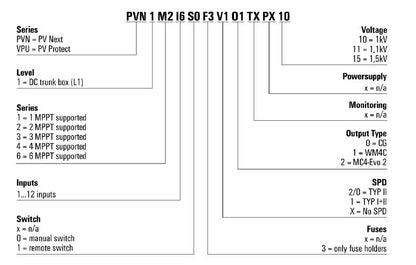

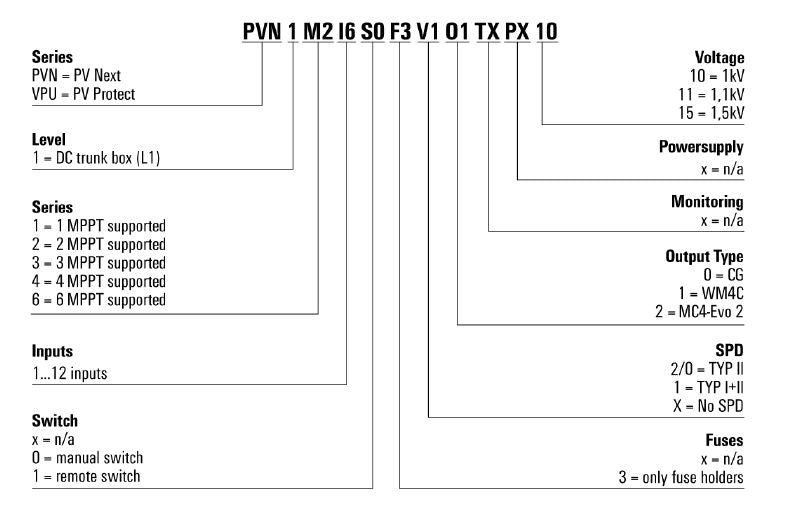

Introducing a reliable over-voltage protection solution tailored specifically for inverters equipped with a single maximum power point (MPP) tracker This essential device safeguards the direct current (DC) side with a maximum allowable string voltage of 1000 V It is compatible with WM4C plug-in connectors and complies with high industry standards, including EN 50539-11: 2013+A1:2014 and IEC 61643-31: 2018.

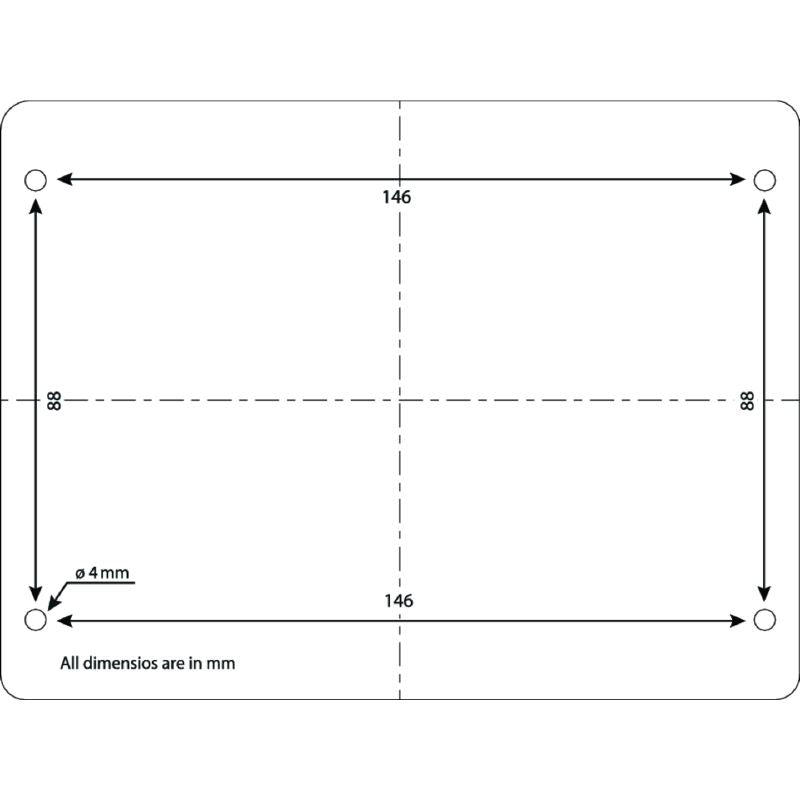

Crafted with a robust plastic enclosure, its dimensions are 168 mm in height, 160 mm in width, and 91 mm in depth With IP65 and IP67 ratings, this protection device is built to perform reliably across diverse environments, ensuring your system’s longevity and safety.
Features and Benefits:
•Compliant with RoHS standards.
•Operates under a wide temperature range of -40 °C to 85 °C.
•Protection degree is IP67, ensuring durability.
•Capable of handling a maximum continuous voltage of 1,100 V.
•Includes surge protection for the DC side with high discharge currents.
•Used in photovoltaic (PV) systems for inverter protection.
Specifications:
| Depth | 91 mm |
| Height | 160 mm |
| Width | 168 mm |
| Net weight | 678 g |
| Storage temperature | -40 °C...85 °C |
| Ambient temperature | -40 °C…85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% relative humidity |
| Protection degree | IP67 |
| Max String Voltage Uoc | 1000 V |
| Operating height in grounded PV system | ≤ 4000 m |
| Operating height in ungrounded PV system | ≤ 4000 m |
| Discharge current I_n (8/20 µs) | 20 kA |
| Max Discharge current (8/20 µs) | 40 kA |
| Protection level U_p (+/-, -/PE, +/PE) | ≤4,2 kV |
| Requirements class | Type II |
| Short-circuit current I_SCPV | 11 kA |
| Total discharge current I_total (8/20µs) | 50 kA |
| Connection type | WM4C plug-in connector |
| Plastic enclosure dimensions | 168x160x91 mm |
