Description:

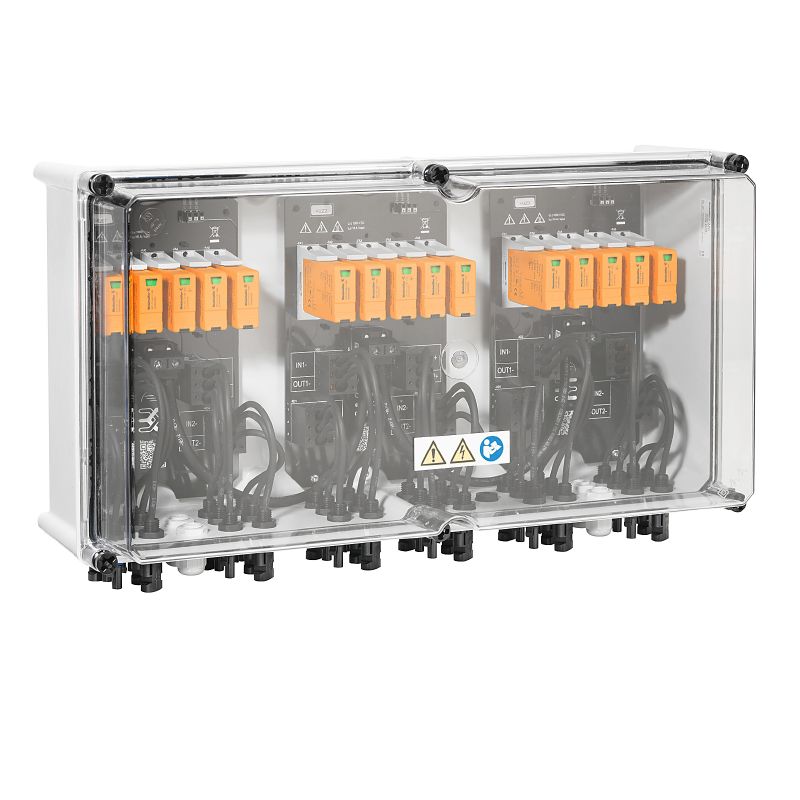

Introducing a high-performance photovoltaic combiner box tailored for efficient management of multiple power sources in solar energy systems This robust unit is rated for a voltage of 1000 V and accommodates up to six maximum power points (MPP), each featuring two inputs and a single output per MPP For added security, it includes surge protection types I and II, safeguarding your installation from electrical spikes.
With compliance to RoHS standards and an IP65 rating, this combiner box is designed for outdoor use and is resilient against various environmental conditions Crafted from glass-fiber reinforced polyester, it promises both durability and longevity.
Features and Benefits:
•Surge protection I / II.
•Installed in a robust and durable housing.
•Suitable for protected outdoor areas.
•Includes mounting feet and accessories.

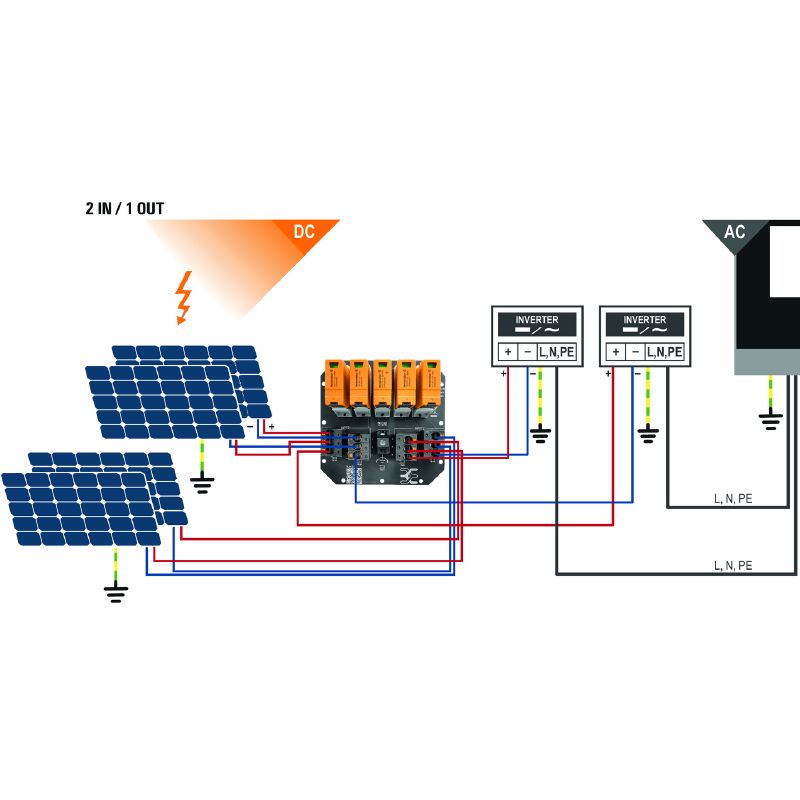

•Used in photovoltaic systems for combining multiple MPPs.
Specifications:
| Depth | 175 mm |
| Height | 334 mm |
| Width | 558 mm |
| Net weight | 6,947 g |
| Ambient temperature | -40 °C to 50 °C |
| Protection degree | IP65 |
| Max. number of DC inputs per Maximum Power Point | 2 inputs connected in parallel |
| Max. number of DC outputs per Maximum Power Point | 1 output |
| Rated DC voltage | 1,000 V |
| Type of mounting | Wall mounting |
| Protection class | II |
| Current per Maximum Power Point, max. | 30 A |
| Rated current | 37.5 A |
| Impact resistance | IK08 in accordance with IEC 62208; IK10 in accordance with IEC 62262 |
