Description:

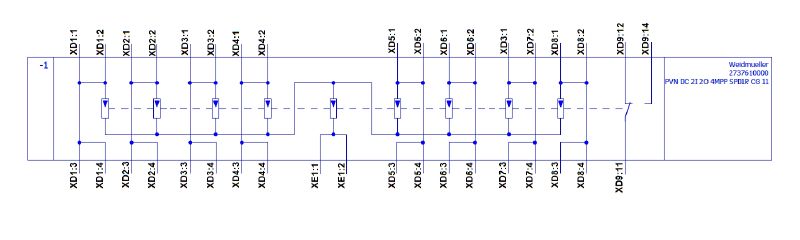

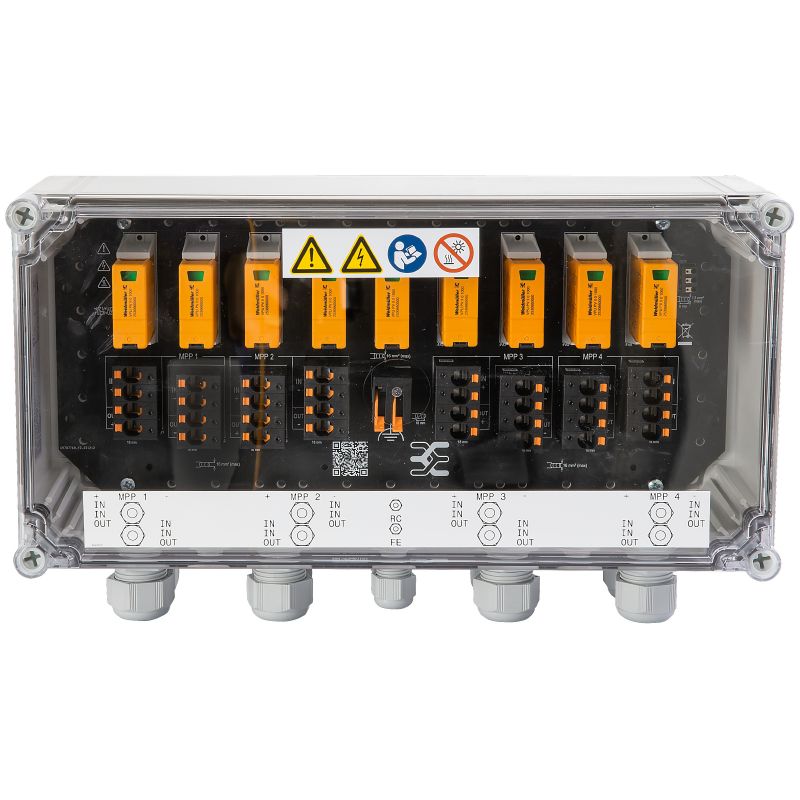

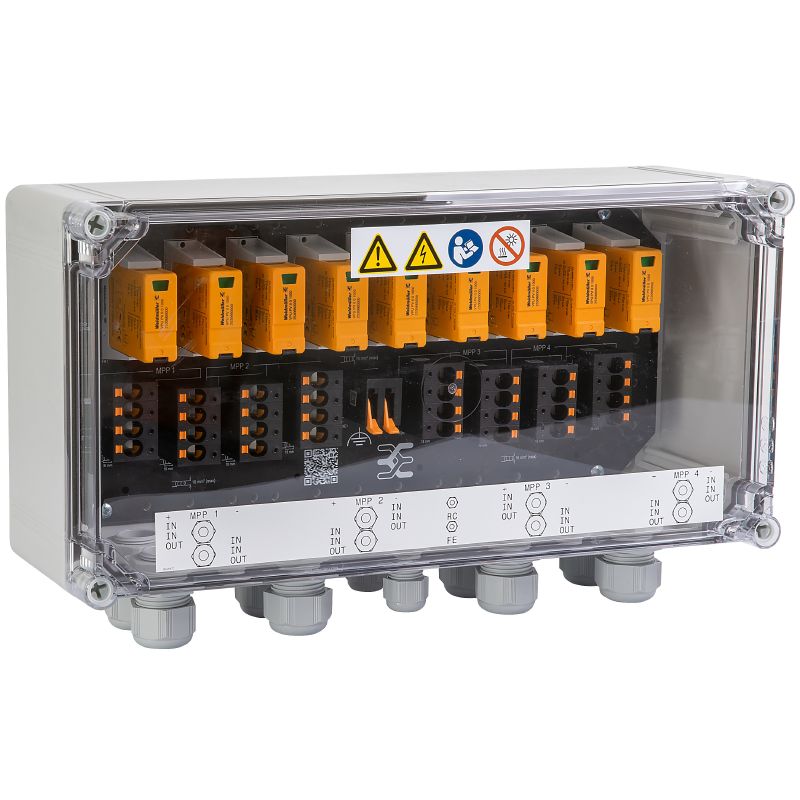

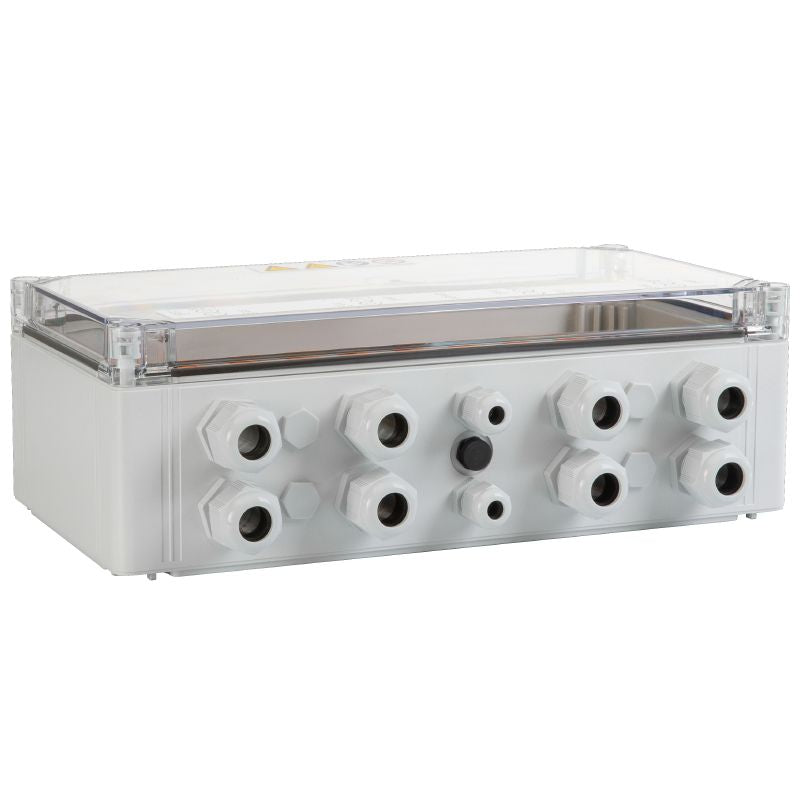

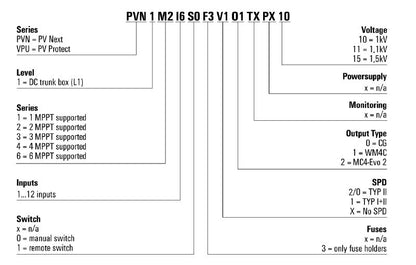

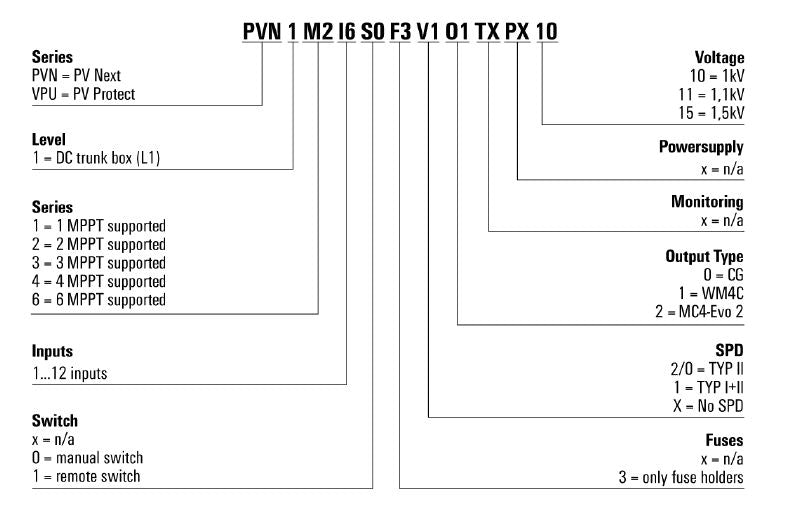

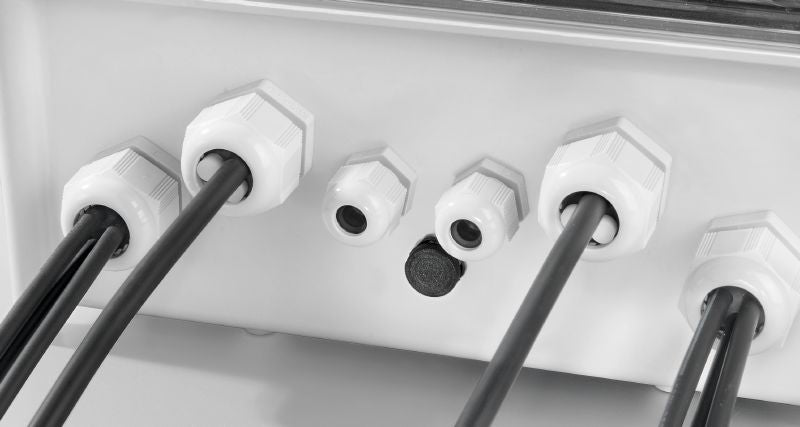

Introducing the PVN DC 2I 2O 4MPP SPD1R CG 11, a robust photovoltaic combiner box crafted for solar energy systems Designed to operate at a maximum voltage of 1100 V, this advanced unit supports four maximum power points, each featuring two inputs and two outputs for seamless energy management Equipped with surge protection levels I and II, it guarantees enhanced safety, and it includes a practical cable gland for easy installations.
Meeting RoHS compliance standards, this combiner box is ideal for safe and efficient use in outdoor environments.
Features and Benefits:
•Includes mounting foot and sealing plug.
•Constructed for outdoor protection with IP65 rating.
•Compatible with multiple cable cross-sections.
•Lightweight design with a net weight of 3,897 g.
•Designed to withstand temperatures from -40 °C to 45 °C.
•Impact resistance ratings of IK08 and IK10.
•Photovoltaic systems.
•Solar power applications.
Specifications:

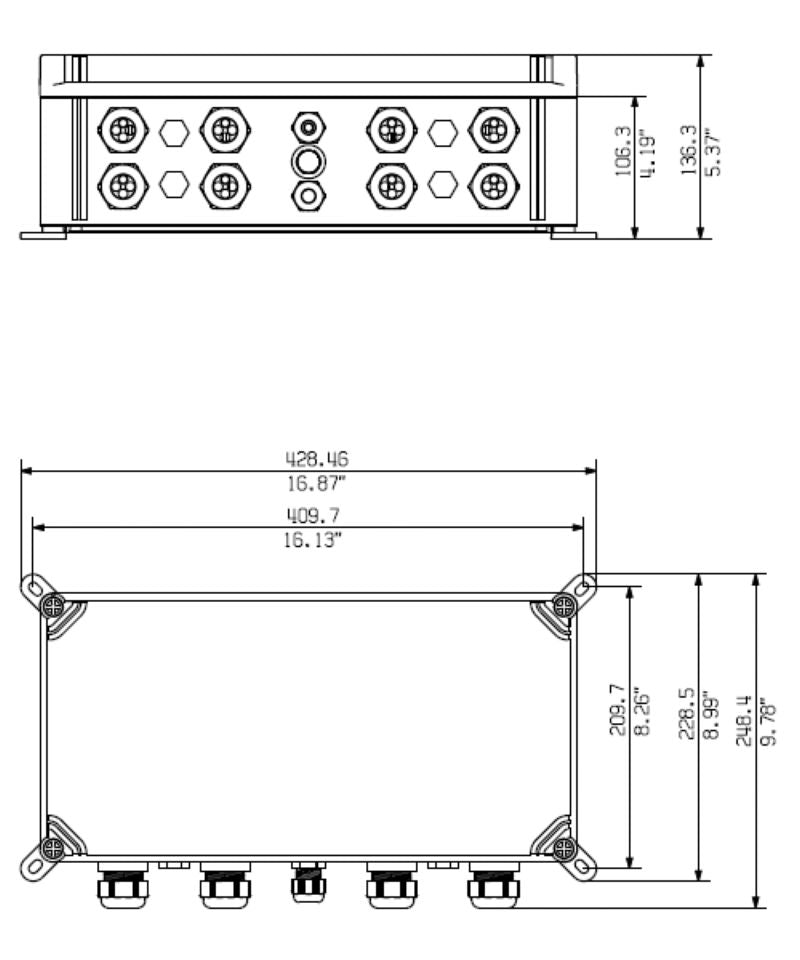

| Dimensions (HxWxD) | 235 mm x 400 mm x 132 mm |
| Current per Maximum Power Point, max. | 53.6 A |
| Rated DC voltage | 1,100 V |
| Protection degree | IP65 |
| Wire connection type | PUSH IN |
| Number of inputs | 8 |
| Max. number of DC inputs per Maximum Power Point | 2 inputs connected in parallel |
| Surge protection DC side | {'Discharge current I': '20 kA', 'Discharge current, max.': '40 kA', 'Lightning test current I': '6.25 kA'} |
| Requirements class | Type I/II |
| Protection class | II |
