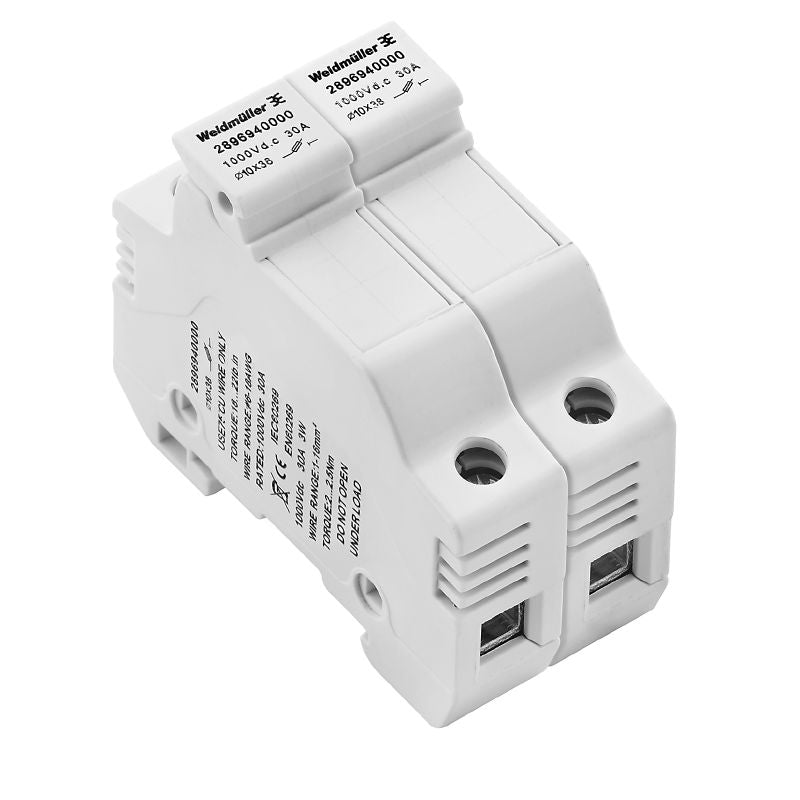

2896940000 - 10x38mm Photovoltaic Fuseholder for 1000V Applications (Pack of 5)
2896940000 - 10x38mm Photovoltaic Fuseholder for 1000V Applications (Pack of 5)
SKU: SKU: 2896940000 Download PDF
- 2896940000 - 10x38mm Photovoltaic Fuseholder for 1000V Applications (Pack of 5)
- 2896940000 - 10x38mm Photovoltaic Fuseholder for 1000V Applications (Pack of 5)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the Fuseholder WSFH/2, a reliable choice for photovoltaic systems With the capacity to handle a maximum operating voltage of 1000 V, this compact component measures 10x38 mm and is engineered to support 2 strings While it does not feature an LED indicator, it adheres strictly to RoHS guidelines, promoting an environmentally conscious solution for your energy needs.
Features and Benefits:
•Designed for photovoltaic systems.
•Supports up to 30 A current.
•RoHS compliant.
•Light blue color.
Specifications:
| Depth | 61 mm |
| Height | 73 mm |
| Width | 18 mm |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 90 °C |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Tightening torque, max. | 2.5 Nm |
| Tightening torque, min. | 2 Nm |
| Type of connection | Screw connection |
| Wire material | Copper |
| Wire connection cross section AWG, min. | AWG 6 |
| Wire connection cross section AWG, max. | AWG 17 |
| Max. current | 30 A |
| Number of potentials | 1 |
| Operating voltage, max. | 1000 V |
| Power dissipation, max. | 3 W |
| Mounting rail | TS 35 |
| Rated impulse withstand voltage | 6 kV |
| Surge voltage category | III |
| Type of mounting | Rail |
