2729230000 - 14-Piece RoHS Compliant PV Sealing Insert Set
2729230000 - 14-Piece RoHS Compliant PV Sealing Insert Set
SKU: SKU: 2729230000 Download PDF
- 2729230000 - 14-Piece RoHS Compliant PV Sealing Insert Set
- 2729230000 - 14-Piece RoHS Compliant PV Sealing Insert Set
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

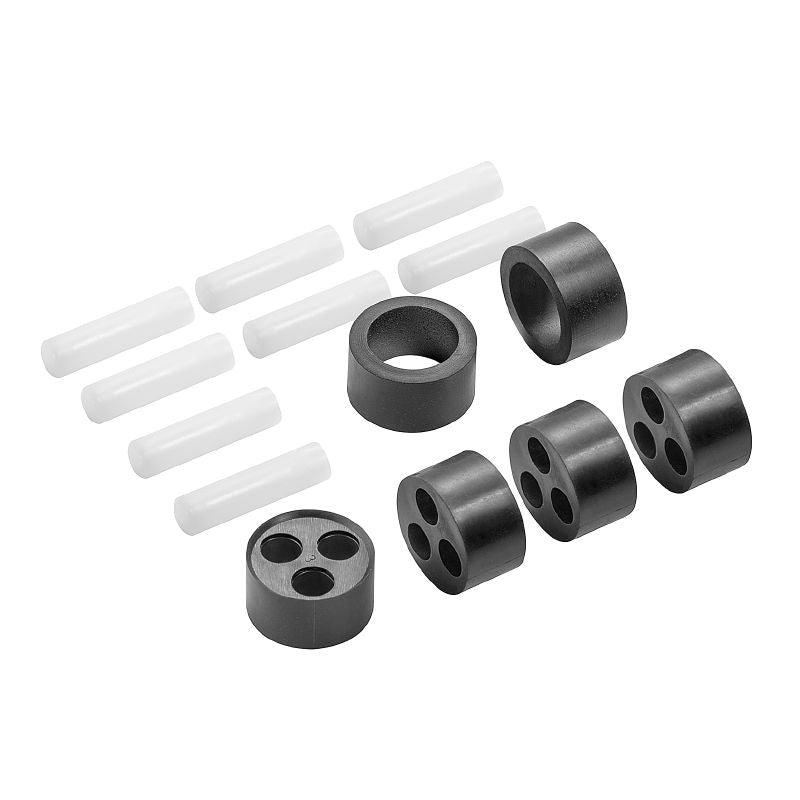

Discover this versatile product set designed specifically for photovoltaic applications, fully compliant with RoHS standards The package includes 14 essential components: four sealing inserts, each 7mm in diameter, one reducing sealing insert at 16mm, and eight blind pins measuring 28mm by 7mm This comprehensive set ensures you have everything needed for efficient installations in solar energy systems.
Features and Benefits:
•Includes 4 Pcs. M25 Multiple sealing inserts 3x Ø7mm.
•Contains 2 Pcs. M25 Reducing sealing insert 1x Ø16mm.
•Comes with 8 Pcs. Blind pin 28mm x Ø7mm.
Specifications:
| Depth | 22.9 mm |
| Depth (inches) | 0.902 inch |
| Height | 12.2 mm |
| Height (inches) | 0.48 inch |
| Width | 22.9 mm |
| Width (inches) | 0.902 inch |
| Net weight | 27 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
