2764130000 - 1000V Surge Protection Box for Inverters with Dual MPP Trackers
2764130000 - 1000V Surge Protection Box for Inverters with Dual MPP Trackers
SKU: SKU: 2764130000 Download PDF
- 2764130000 - 1000V Surge Protection Box for Inverters with Dual MPP Trackers
- 2764130000 - 1000V Surge Protection Box for Inverters with Dual MPP Trackers
Couldn't load pickup availability
Description:

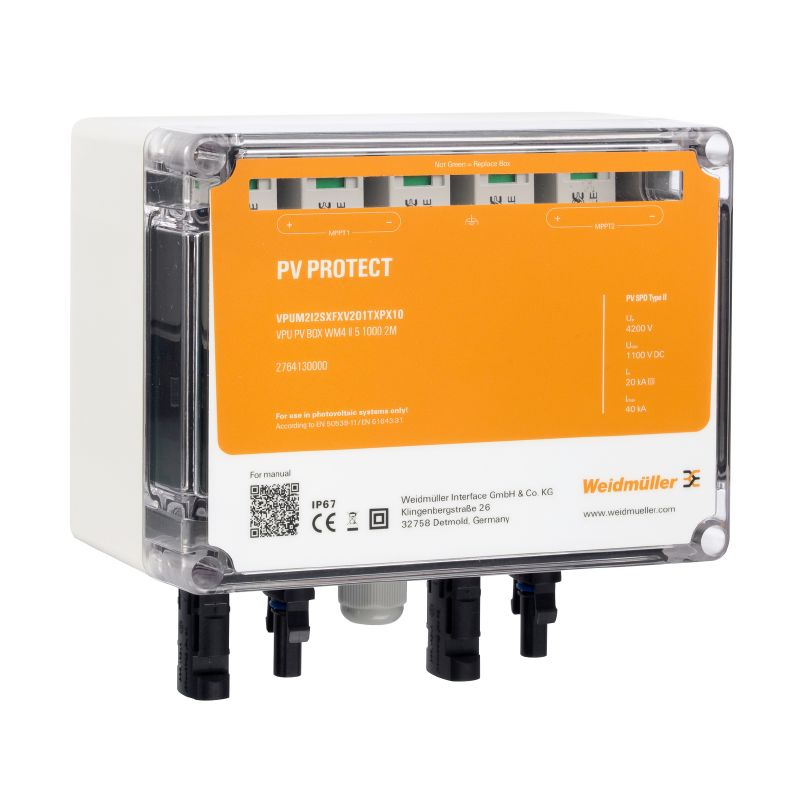

Protect your inverter system with this reliable over voltage protection box, specifically crafted for units featuring dual maximum power point (MPP) trackers Designed to secure the DC side of your setup, this protective box accommodates a maximum string voltage of 1000 V Each MPP comes equipped with a single input, utilizing WM4 C plug-in connectors compatible with select cable types It also includes type II surge protection and adheres to established safety standards, ensuring optimal performance and reliability.
Features and Benefits:
•Meets RoHS compliance status without exemptions.
•Enclosure protection degree rated at IP67.
•Compatible with dynamic voltage systems up to 1100 V.
•Dust-tight with protection against water immersion.
•Designed for use in ambient temperatures ranging from -40 °C to 85 °C.

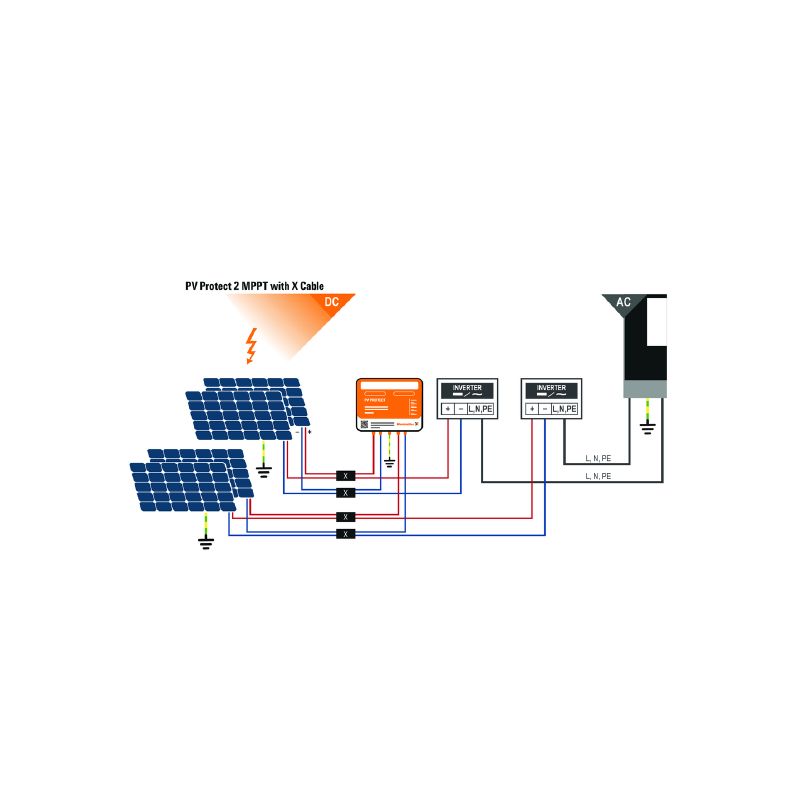

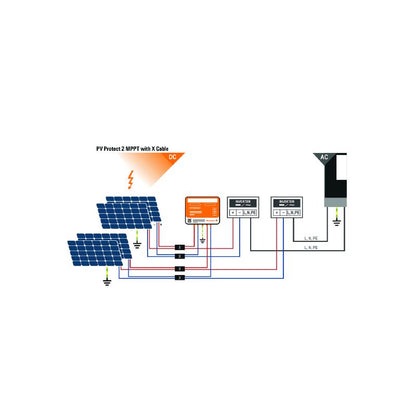

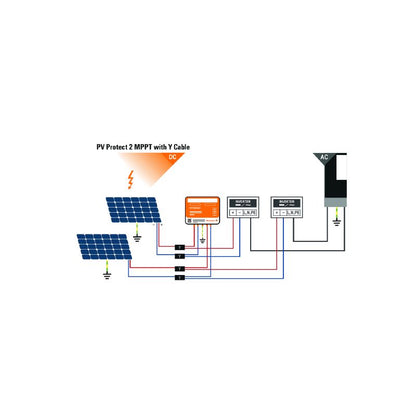

•Used to protect the DC side of inverters in photovoltaic systems.
Specifications:
| Depth | 91 mm |
| Height | 160 mm |
| Width | 168 mm |
| Storage temperature | -40 °C to 85 °C |
| Ambient temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Protection level | ≤4.2 kV |
| Discharge current I n (8/20 µs) | 20 kA |
| Maximum continuous operating voltage DC UCPV mode | 1,100 V |
| Number of string inputs per MPP | 1 |
| Short-circuit current I SCPV | 11 kA |
| Total discharge current I total (8/20 µs) | 50 kA |
| Standards | EN 50539-11 |
