Description:

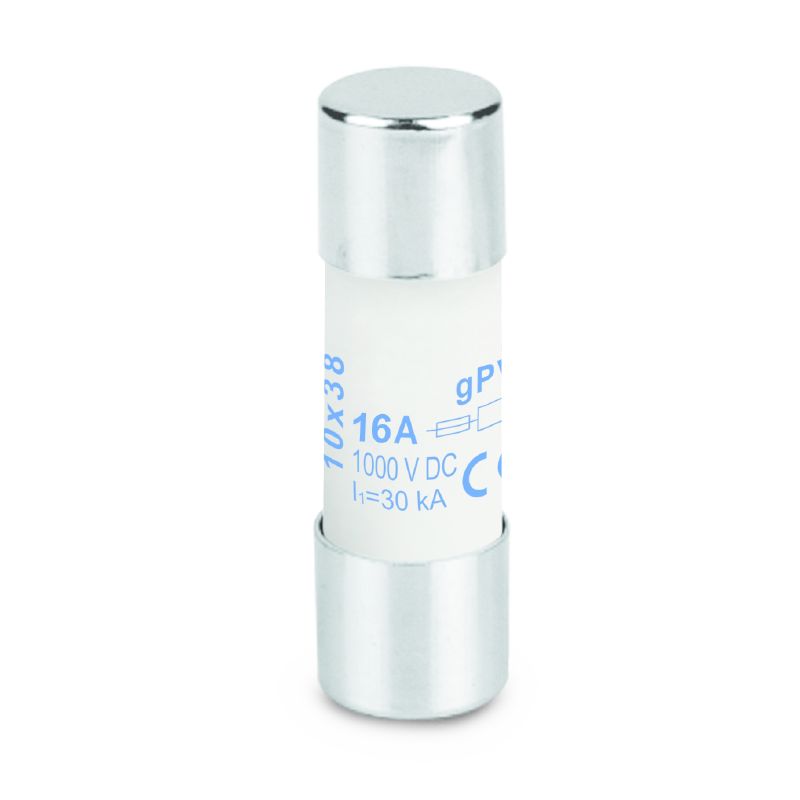

Introducing the 10x38 gPV fuse, specifically engineered for photovoltaic systems This durable fuse operates at a maximum voltage of 1000 volts and has a current rating of 16 amps, making it a reliable choice for solar applications Compliant with RoHS regulations, this product guarantees safety and environmental responsibility

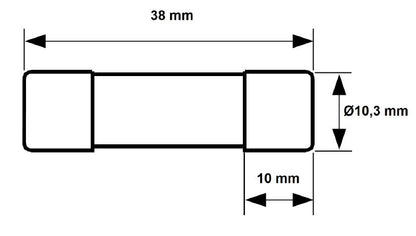

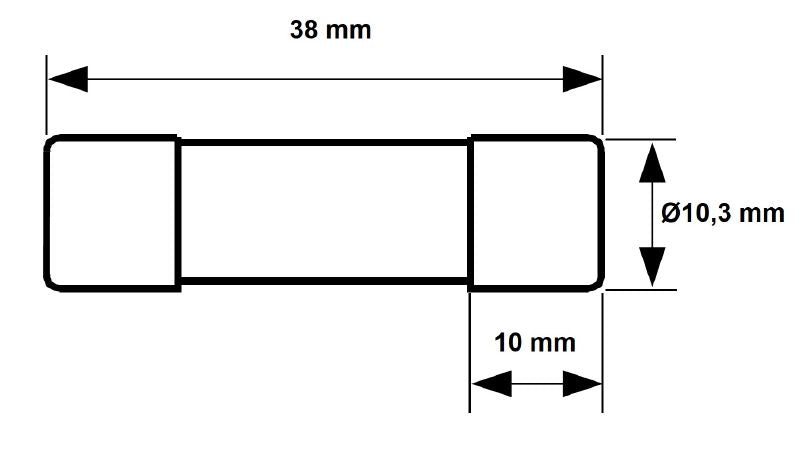

Measuring 10 mm in depth and width, with a height of 38 mm, this fuse meets the stringent standards set by IEC 60269-1 and IEC 60269-6.
Available in convenient packs of 10, it functions effectively across a wide temperature range, from -40°C to +80°C, ensuring safe and reliable performance in various conditions.
Features and Benefits:
•RoHS compliant.
•Pack of 10 items.
•Designed for use in photovoltaic applications.
•Silver-plated contacts.
•Photovoltaic systems.
Specifications:
| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Net weight | 7.8 g |
| Storage temperature | -40°C to 90°C |
| Operating temperature | -40°C to 80°C |
| Current | 16 A |
| Rated DC voltage | 1,000 V |
| Rated breaking capacity | 30 kA |
| Power dissipation, max. | 2.7 W |
| Fuse-link standard | IEC 60269-1, IEC 60269-6, gPV (EN 60269-6) |
