Description:

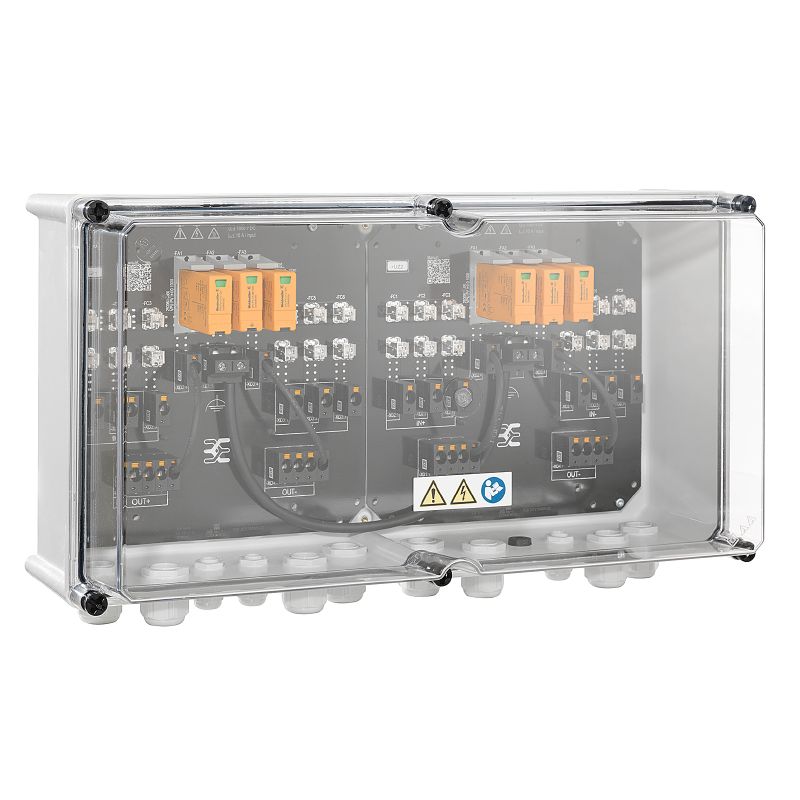

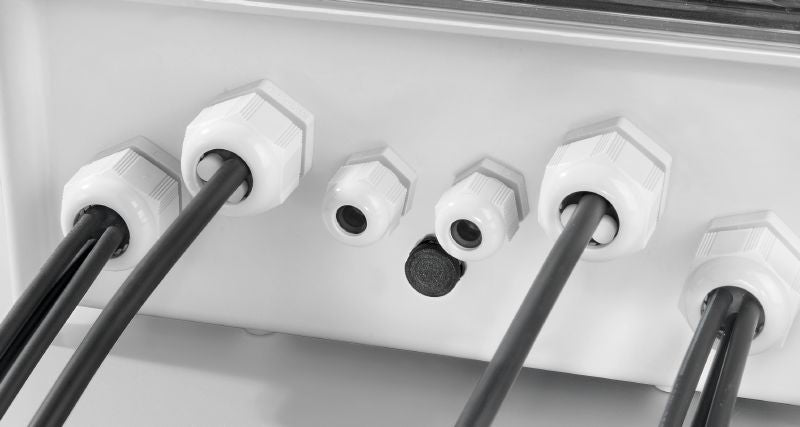

Discover the ultimate solution for your photovoltaic needs with this specially crafted combiner box Designed to handle a rated voltage of 1000 V, it features dual Maximum Power Points (MPP), each offering three inputs and outputs for seamless integration Enhanced safety is prioritized through integrated fuse holders, complemented by surge protection levels I and II, and efficient cable glands that facilitate reliable connections.
Perfect for optimizing your solar energy systems.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Includes four mounting feet and eleven sealing plugs.
•Designed for wall mounting with easy installation.
•Protected outdoor area usage.
•Impact resistance rated at IK08 and IK10.

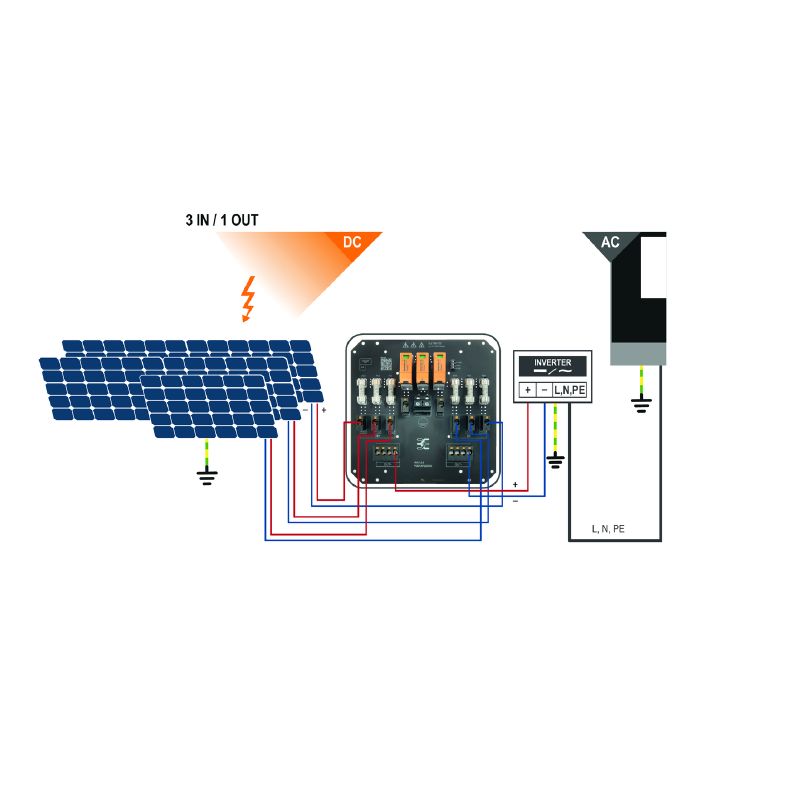

•Used in photovoltaic systems for protecting the DC side of inverters.
Specifications:
| Depth | 132 mm |
| Height | 335 mm |
| Width | 600 mm |
| Ambient temperature | -40 °C…45 °C |
| Protection degree | IP65 |
| Current per Maximum Power Point, max. | 45 A |
| Rated DC voltage | 1,000 V |
| Rated short-term current resistance | 56.25 A |
| Installation location | Protected outdoor area (Land and Sea) |
| Max. number of DC inputs per Maximum Power Point | 3 |
| Max. number of DC outputs per Maximum Power Point | 3 |
| Total discharge current I total (8/20µs) | 50 kA |
| Total discharge current I total (10/350µs) | 12.5 kA |
