Description:

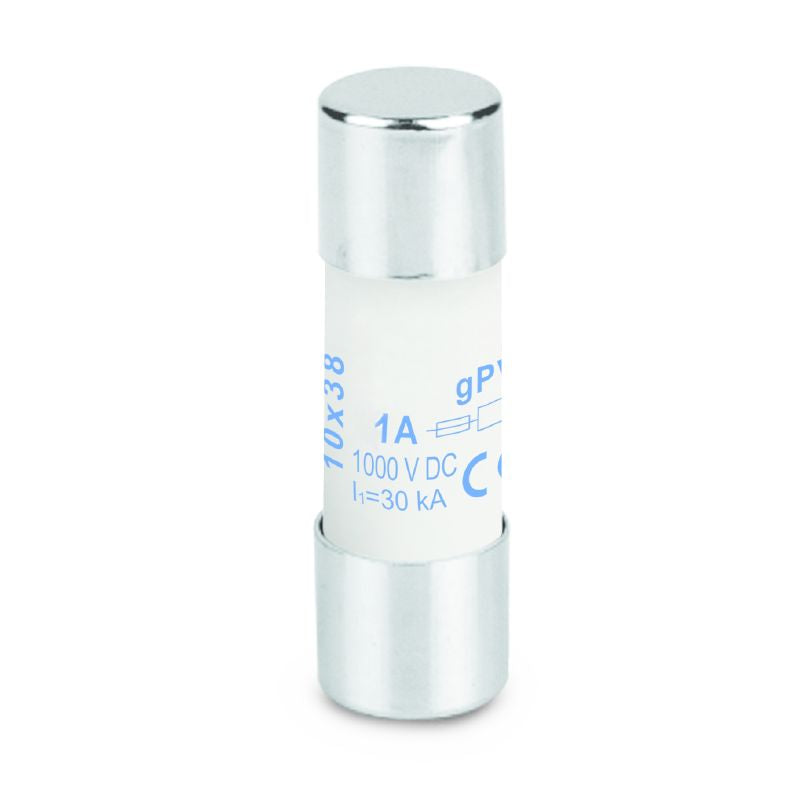

Introducing a photovoltaic cartridge fuse specifically engineered for high-voltage applications up to 1000 V With dimensions of 10x38 mm and a current rating of 1 A, this fuse is essential for safe operation It ensures compliance with RoHS regulations and adheres to international IEC standards 60269-1 and 60269-6, making it a reliable choice for various electrical needs.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Item weight is 1 g.
•Fuse-link standards according to IEC regulations.
•Current rating of 1 A.
•Rated DC voltage of 1,000 V.
Specifications:

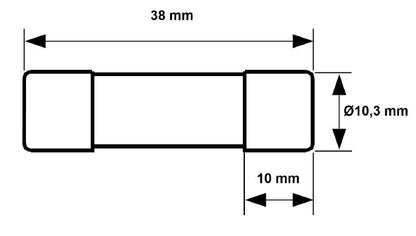

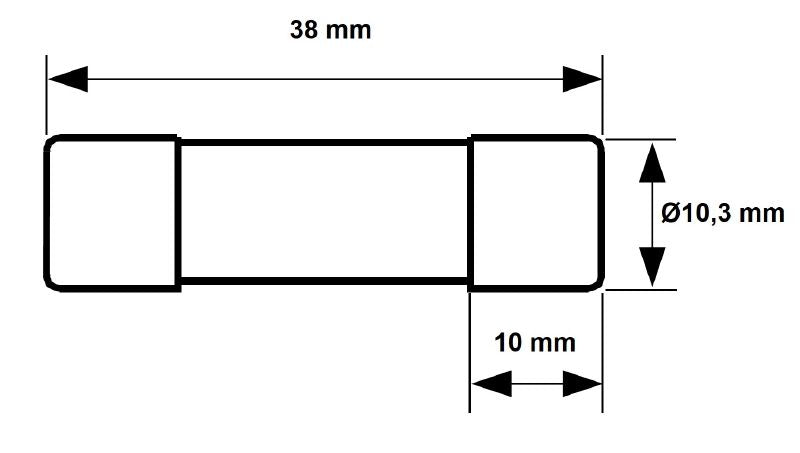

| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Storage temperature | -40°C ... 90°C |
| Operating temperature range | -40...80 ℃ |
| Rated breaking capacity | 30 kA |
| Material of contacts | silver-plated |
| Power dissipation, max. | 0.76 W |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ETIM 10.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ECLASS 14.0 | 27-14-20-02 |
| ECLASS 15.0 | 27-14-20-02 |
