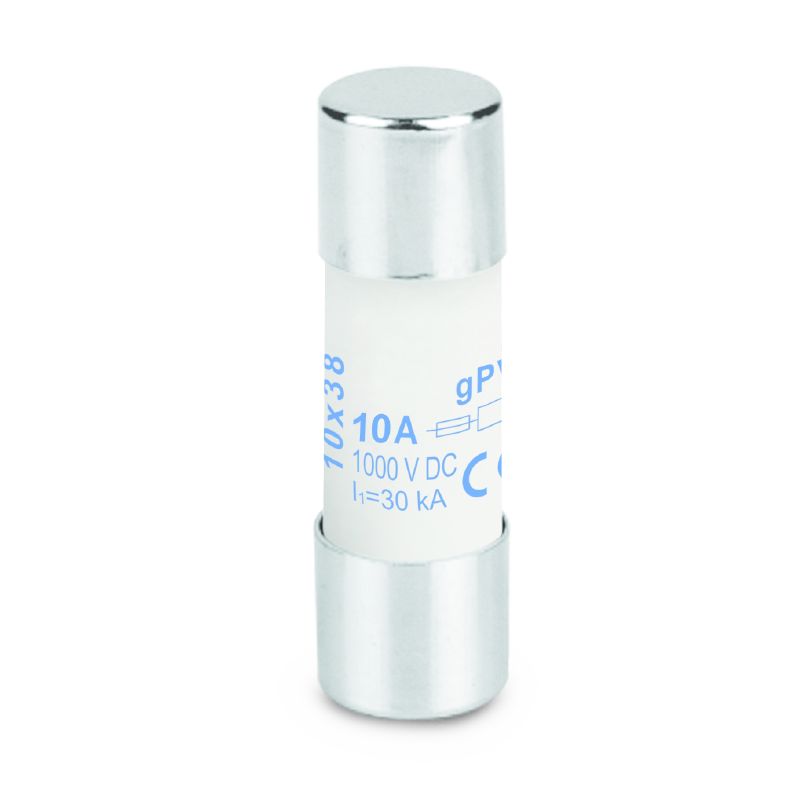

2783230000 - 10A 10x38mm Cartridge Fuse for Solar Applications (Pack of 10)
2783230000 - 10A 10x38mm Cartridge Fuse for Solar Applications (Pack of 10)
SKU: SKU: 2783230000 Download PDF
- 2783230000 - 10A 10x38mm Cartridge Fuse for Solar Applications (Pack of 10)
- 2783230000 - 10A 10x38mm Cartridge Fuse for Solar Applications (Pack of 10)
Couldn't load pickup availability
Description:
Optimize your solar energy systems with this specialized cartridge fuse, tailored for photovoltaic applications Measuring 10x38 mm and capable of handling up to 10 A and 1000 V DC, this fuse complies with IEC 60269 standards, guaranteeing dependable performance in solar setups Enhance your solar installations with this reliable safety component.
Features and Benefits:
•Compliance with RoHS standards.
•No SVHC above 0.1 wt%.
•Low power dissipation with a maximum of 2.2 W.
•Silver-plated contacts for better conductivity.
•Used in photovoltaic systems.
Specifications:

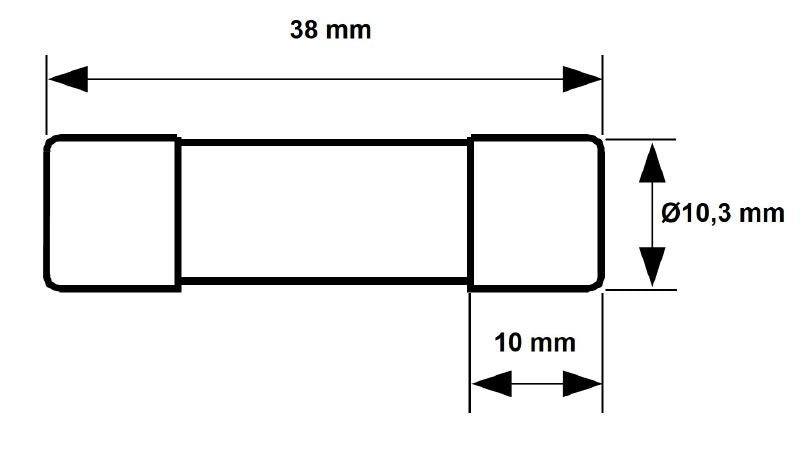

| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Storage temperature | -40°C to 90°C |
| Operating temperature range | -40 to 80 °C |
| Current | 10 A |
| Rated DC voltage | 1,000 V |
| Rated breaking capacity | 30 kA |
| Material of contacts | silver-plated |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ETIM 10.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ECLASS 14.0 | 27-14-20-02 |
| ECLASS 15.0 | 27-14-20-02 |
