Description:
Upgrade your solar energy system with this photovoltaic combiner box, featuring two maximum power points (MPP) for efficient performance Each MPP comes with three inputs and three outputs, allowing for versatile connections It operates at a rated DC voltage of 1,000 V and includes surge protection levels I/II for added security Designed for wall mounting, this enclosure boasts IP65 protection to withstand various environmental conditions.

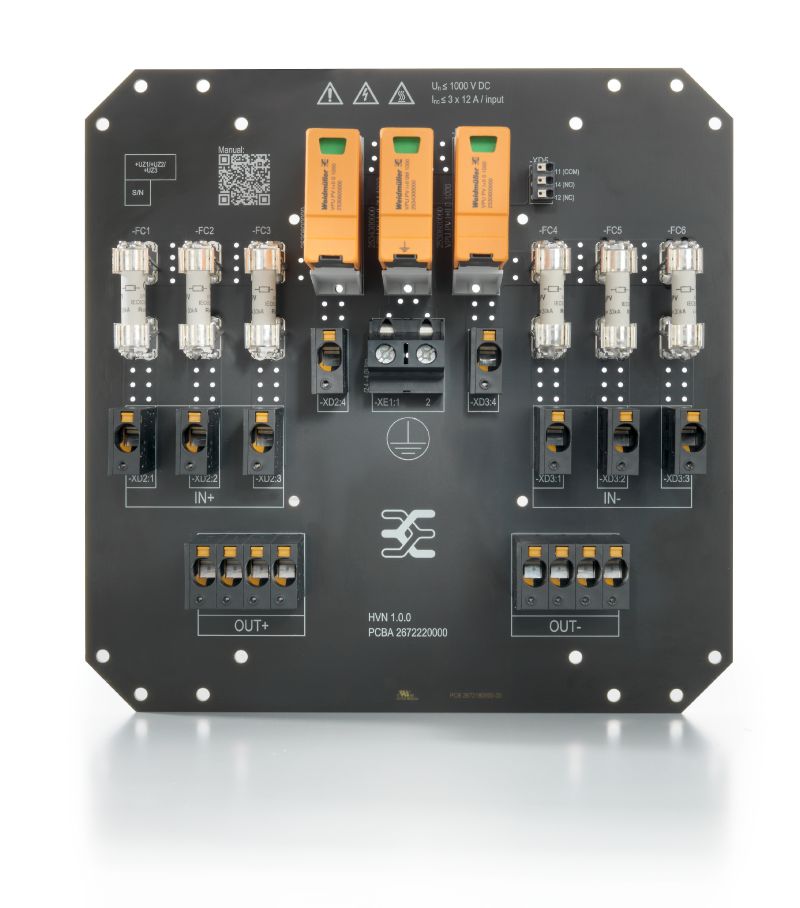

The assembly also comes with a fuse holder and monitoring capabilities, all while adhering to RoHS standards for safe usage.
Features and Benefits:
•Includes fuse holders for inputs and outputs.
•Compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2015.
•Impact resistance rated at IK08 and IK10.
•Constructed from glass-fibre reinforced polyester and polycarbonate.
•Suitable for both land and sea protected outdoor areas.

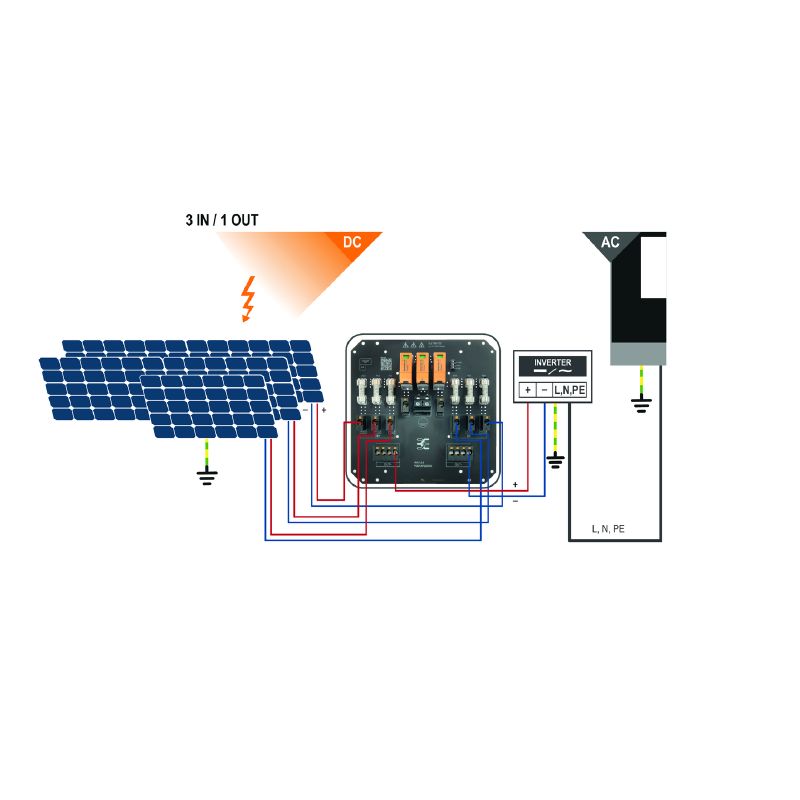

•Used in photovoltaic systems to ensure protection on the DC side.
Specifications:
| Depth | 132 mm |
| Height | 340 mm |
| Width | 600 mm |
| Ambient temperature | -40 °C to 45 °C |
| Protection degree | IP65 |
| Rated short-term current resistance | 56.25 A |
| Max. number of DC inputs | 3 inputs connected in parallel |
| Max. number of DC outputs | 3 outputs connected in parallel |
| Surge protection max discharge current (8/20 µs) | 40 kA |
| Max. continuous operating voltage DC UCPV mode | 1,100 V |
| Short-circuit current | 11,000 A |
| Weight | 6,881 g |
