2764140000 - VPU PV Box 168x160x91mm for Inverter Overvoltage Protection

Description:

Introducing the VPU PV BOX WM4 I+II, an essential component for safeguarding inverters with a single MPP tracker against overvoltage This protective box is designed to handle a maximum string voltage of 1000 V, providing robust safety for the DC side It features a WM4C plug-in connector for straightforward installation and is compatible with TÜV 2 Pfg1169/0807 / EN 50618:2069 cable types With one input and no need for a DC switch, this device integrates a Type II surge protection system.

Its durable plastic enclosure offers top-notch weather protection with IP65 and IP67 ratings The compact unit measures 168 x 160 x 91 mm, conforming to standards EN 50539-11:2013+A1:2014 and IEC 61643-31:2018, making it a reliable choice for your inverter safety needs.

Features and Benefits:

•Protection degree: IP67.

•Compliant with RoHS without exemptions.

•Operating temperatures range from -40 °C to 85 °C.

•Functional earth connection via cable glands.

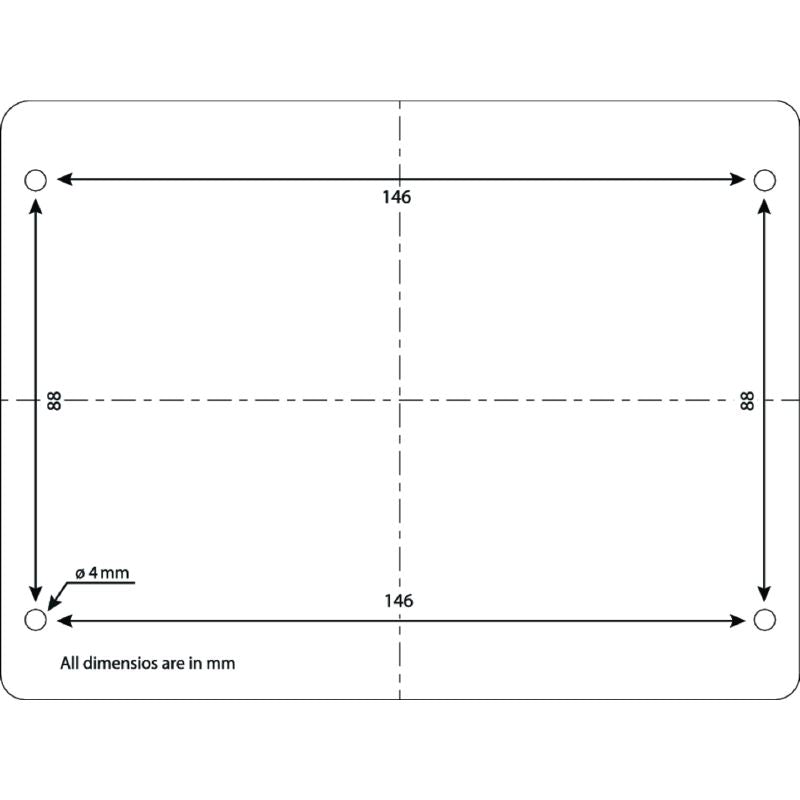

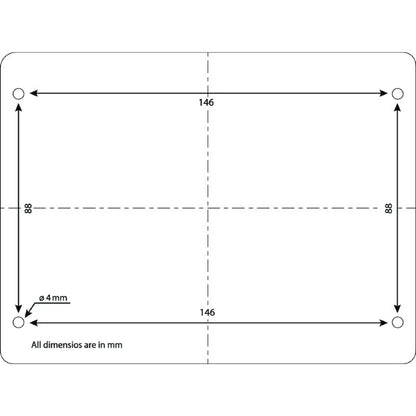

•Compact design with mounting options via screws.

•Maximum continuous operating voltage: 1,100 V.

•Overvoltage protection for DC side of inverters.

•Used in photovoltaic systems with 1 MPP tracker.

Specifications:
