Description:

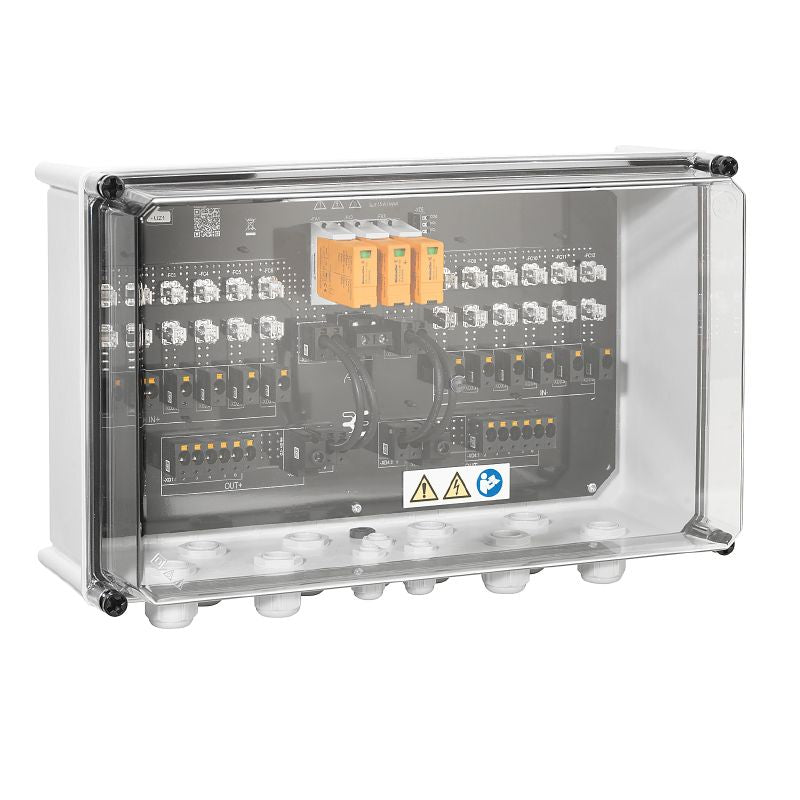

Optimize your photovoltaic system with this efficient combiner box, featuring one Maximum Power Point (MPP) tracker and the capability to handle up to six inputs and outputs per MPP Operating at a maximum DC voltage of 1,000 V, this unit also provides surge protection levels I and II for enhanced safety Equipped with a fuse holder, it meets IP65 standards for water and dust resistance, making it an excellent choice for outdoor installations.
With dimensions of 330 mm in height, 488 mm in width, and 210 mm in depth, it has a net weight of 6,416 g and complies with RoHS regulations Make the most of your solar energy with this reliable and durable product.
Features and Benefits:
•Compatible with outdoor installations.
•Compliant with RoHS regulations.
•Includes sealing plugs for secure connections.
•Designed for easy mounting and connections.
•Protects entire DC side of photovoltaic systems.
•Photovoltaic systems.
Specifications:
| Depth | 210 mm |
| Height | 330 mm |
| Width | 488 mm |
| Ambient temperature | 25 °C…40 °C |
| Humidity | 5 - 90 %, no condensation |
| Current per Maximum Power Point, max. | 90 A |
| Rated DC voltage | 1,000 V |
| Protection degree | IP65 |
| Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE | 1,100 V |
| Discharge current I n (8/20 µs) | 20 kA |
| Number of inputs | 6 |
| Number of outputs | 7 |
| Inputs per MPP | 6 |
| Outputs per MPP | 7 |
| Impact resistance | IK08 |
| Fuse type | Empty fuse holder |

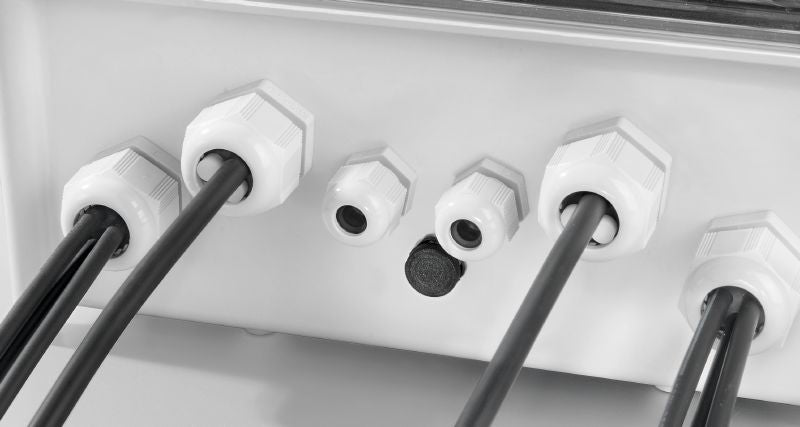

| Number of conduit inlets | 2 |
| Installation location | Protected outdoor area (Land and Sea) |
