2783250000 - 10mm x 38mm 15A Photovoltaic Fuse, 1000 VDC, RoHS Compliant (Pack of 10)
2783250000 - 10mm x 38mm 15A Photovoltaic Fuse, 1000 VDC, RoHS Compliant (Pack of 10)
SKU: SKU: 2783250000 Download PDF
- 2783250000 - 10mm x 38mm 15A Photovoltaic Fuse, 1000 VDC, RoHS Compliant (Pack of 10)
- 2783250000 - 10mm x 38mm 15A Photovoltaic Fuse, 1000 VDC, RoHS Compliant (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

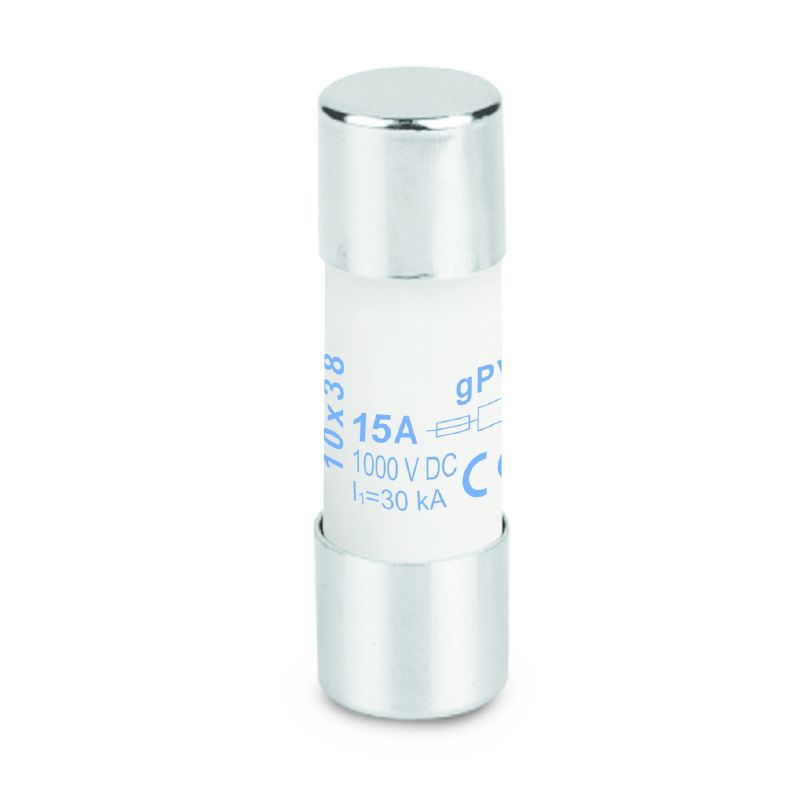

Introducing this photovoltaic cartridge fuse, expertly crafted for efficiency in applications with voltages reaching up to 1000 VDC and a maximum current rating of 15 A Its compact dimensions include a width and depth of 10 mm, and a height of 38 mm, complemented by a diameter of 103 mm This product is available in packs of 10, and it proudly meets RoHS compliance standards, ensuring a commitment to safety and environmental responsibility.
Features and Benefits:
•Photovoltaic cartridge fuse.
•Current rating of 15 A.
•Rated voltage of 1000 VDC.
•RoHS compliant without exemption.
•Fuse-link standards conforming to IEC 60269-1 and IEC 60269-6.
Specifications:

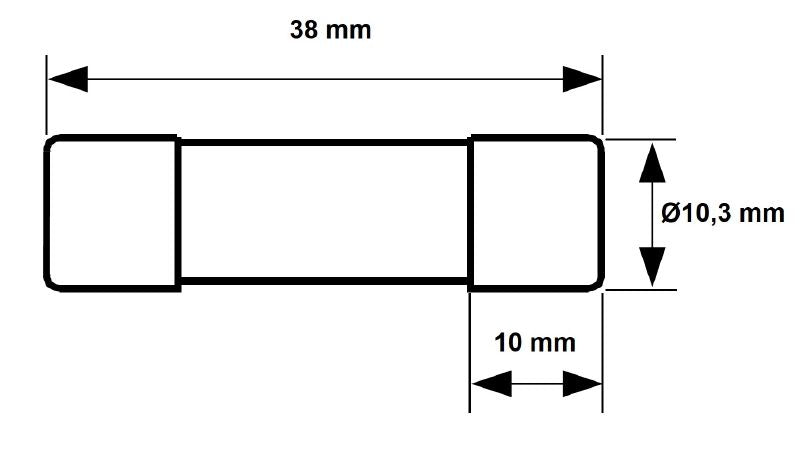

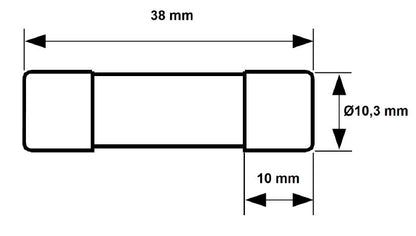

| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Storage temperature | -40°C ... 90°C |
| Operating temperature range | -40...80 ℃ |
| Rated breaking capacity | 30 kA |
| Material of contacts | silver-plated |
| Power dissapation, max. | 2.65 W |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ETIM 10.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ECLASS 14.0 | 27-14-20-02 |
| ECLASS 15.0 | 27-14-20-02 |
